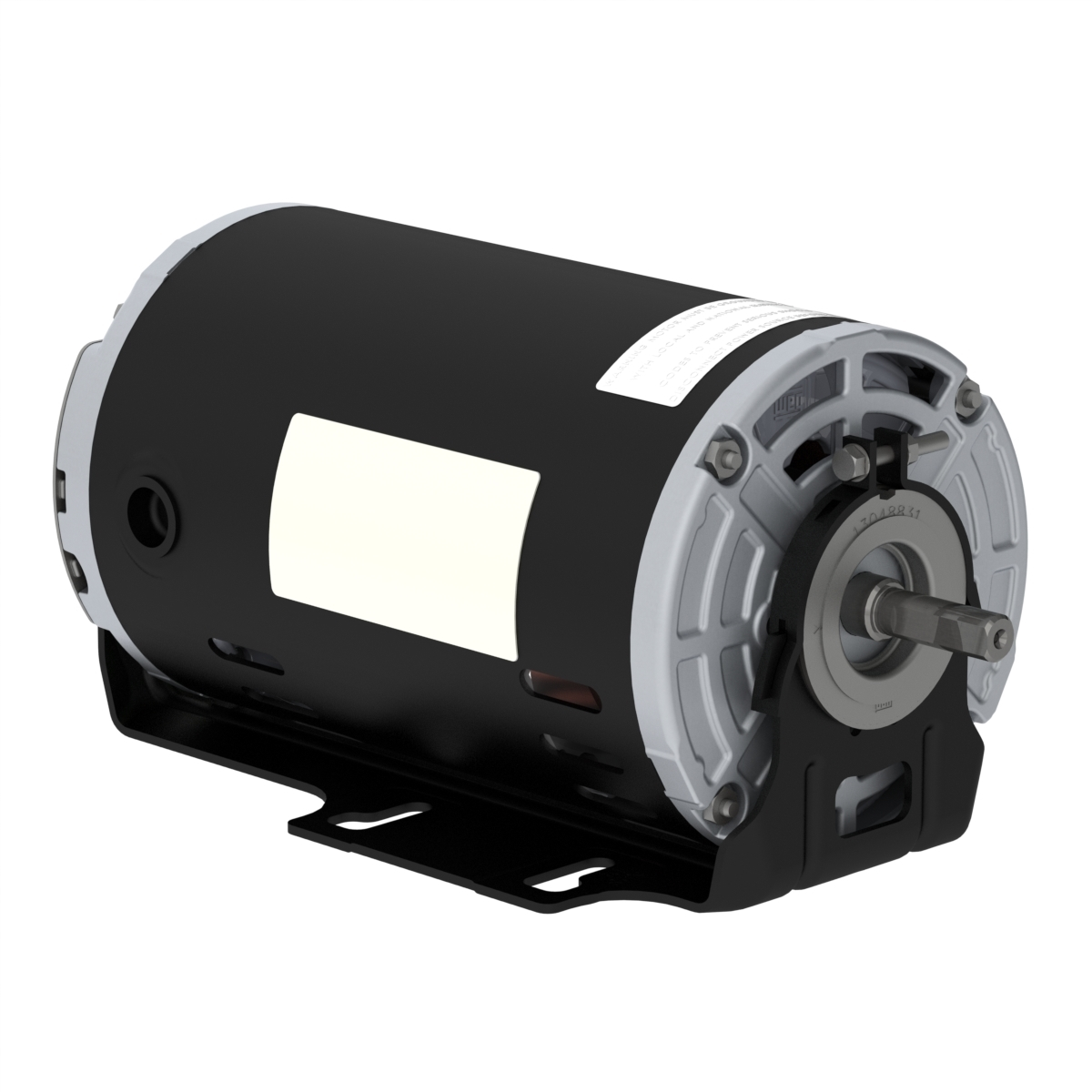

WEG 00158OT3ERB56-S 13661000 General Purpose Motor, ODP Rolled Steel 56H Frame, 1.5 HP, 1450 RPM, 415 V With Resilient Base
1800 rpm
1.5 hp
56
Get it by Tuesday, Aug 25
€499.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.1/4.2A , 4.2/2.1A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 350% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | No |
| Design | A |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 53% , 84% |
| Efficiency 75% | 85.5% |
| Efficiency @ 1 % | 76% |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 75 % | 66% |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Frame Size | 56H |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 14 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 17.9A , 18.5/37A , 37/18.5A |
| Locked Rotor Time (cold) | 25 sec. |
| Locked Rotor Time(hot) | 14 sec. |
| Locked Rotor Torque | 290% |
| Lrc | 7.4x(Code K) , 8.8X(Code L) |
| Moment Of Inertia | 0.1296 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1296 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1760 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | No |
| No Load Amps | 1.3/2.6A , 2.6/1.3A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.76 |
| Power Factor 50% | 0.53 |
| Power Factor 75% | 0.66 |
| Power Factor @ 1 % | 86.5 |
| Power Factor @ 50 % | 84 |
| Power Factor @ 75 % | 85.5 |
| Resilient Base | With |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Speed | 1700-1800 RPM , 1760 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 4.48 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 33.5 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Product Variants
| Model | Phase | Frequency | Service Factor | Hp | Full Load Amps | Frame | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 60 Hz | 1.15 | 15 hp | 14.9A | 254TC | Cast Iron | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 60 Hz | 1.15 | 20 hp | 19.8A | 256TC | Cast Iron | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 60 Hz | 1.15 | 25 hp | 23.9A | 284TC | Cast Iron | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 60 Hz | 1.15 | 30 hp | 28.3A | 286TC | Cast Iron | - | €3,744.49 | |
| 20018OT3G445T | 3 | 60 Hz | 1.15 | 200 hp | 229A | 445T | Cast Iron | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 60 Hz | 1.15 | 150 hp | 162A | 405TS | Cast Iron | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 60 Hz | 1.15 | 200 hp | 228A | 444TS | Cast Iron | - | €20,850.80 |
