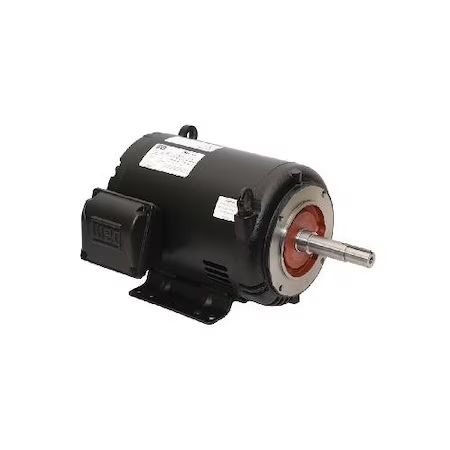

WEG 00152OT3E182JM-S 12676985 Pump Motor, 1.5 HP, 1200 RPM, 208/230/460V, ODP, 182/4JM, Footed, Close Coupled Pump
1200 rpm
1.5 hp
184JM
208/230/460V
Get it by Friday, Aug 21
€917.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.55A |
| Application | Closed Coupled |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cold Locked Rotor Time | 0 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 5:1 |
| De Bearing Seal | No |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 86.5% |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 184JM |
| Frame Material | Rolled Steel |
| Frame Size | 182JM |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 15.3A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 6x(Code J) |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Mounting | Foot-Mounted, F-1 |
| Mounting Arrangement | F1 |
| Nde Bearing Seal | No |
| Nema Frame | NEMA 182-4JM |
| Nema Mount | C Face With Base |
| No Load Amps | 1.59A |
| No. Of Poles | 6 |
| Noise Level | 50 dBA |
| Output Hp | 1 1/2 hp |
| Output Kw | 1.1 kW |
| Output Rating | 1.1 kW |
| Output Speed | 1165 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-00152ot3e182jm-s.pdf |
| Rated Speed | 960 RPM |
| Rated Torque | 8.21 lbs.-ft. |
| Replaces | 00152OT3E182JM |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 4% |
| Speed | 1100-1200 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 415V |
Shipping Info:
| Ship weight (kg) | 31.95 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 39.3 |
| Ship width (cm) | 37.08 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Hp | Insulation Class | No. Of Poles | No Load Amps | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
05036OT3G324JP-W40 | 460V AC | - | 1.15 | 50 hp | Class F | 2 | 20.5A | 93.6% | €8,528.86 | |
 |
05036OT3G324JM-W40 | 460V AC | - | 1.15 | 50 hp | Class F | 2 | 20.5A | 93.6% | €8,528.86 | |
 |
00318OP3E182JM | 230/460V | 182JM | 1 | 3 hp | Class F | 4 | 2.1/4.2A | 50% | - | RFQ
|
 |
00156OP3E143JP | 230/460V | 145JP | 1 | 1 1/2 hp | Class F | 2 | 0.95/1.9A | 50% | - | RFQ
|
|
00118OT3E143JP | 208-230/460V | 145JP | - | 1 hp | - | - | - | - | - | RFQ
|
|
00518OP3E184JM | 230/460V | 184JM | 1 | 5 hp | Class F | 4 | 3.2/6.4A | 50% | - | RFQ
|
|
00158OP3H145JM | 575V | 145JM | 1 | 1 1/2 hp | Class F | 4 | 0.96A | 50% | - | RFQ
|
