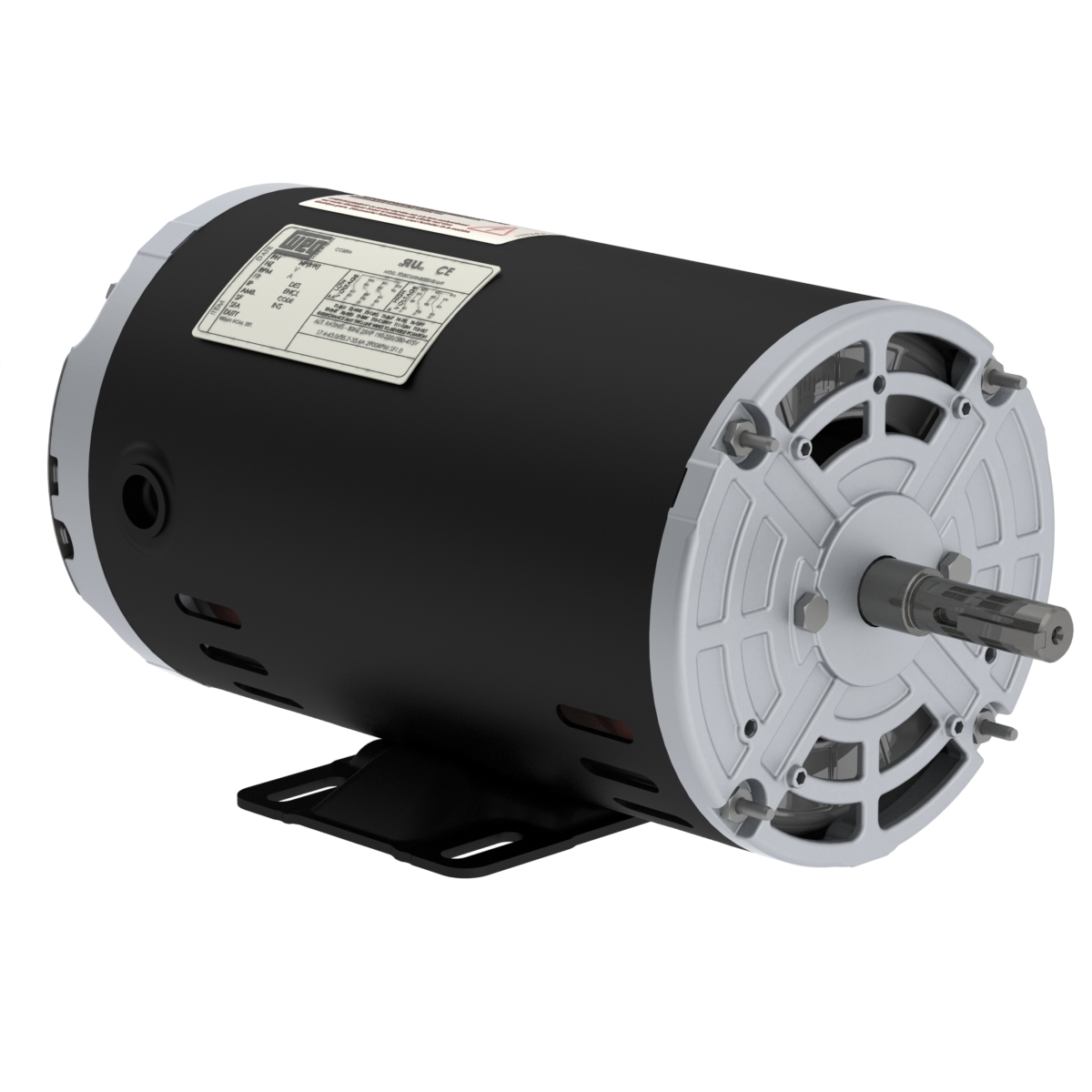

WEG 00118OT3E56-S 12809660 General Purpose Motor, ODP RolLED Steel 56 Frame, 1 HP, 1450 RPM, 415 V
Get it by Wednesday, Feb 18
€417.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 320% |
| Cold Locked Rotor Time | 30 sec. |
| Connection Cables Quantity | 9 |
| Design | A |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency At 1 % | 72% |
| Efficiency At 50 % | 49% |
| Efficiency At 75 % | 63% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 17 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class B |
| L. R. Amps | 23.9/11.9A |
| Locked Rotor Torque | 280% |
| Lrc | 7.6X(Code L) |
| Moment Of Inertia | 0.0842 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1760 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 2.2/1.1A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 1 hp |
| Output Hp | 1 hp |
| Output Rating | 1 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor At 1 % | 83.5 |
| Power Factor At 50 % | 78.5 |
| Power Factor At 75 % | 82.5 |
| Product Datasheet | weg-00118ot3e56-s.pdf |
| Rated Current | 3.14/1.57A |
| Rated Torque | 2.98 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 29.2 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Phase | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Frame | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 1.15 | 60 Hz | 15 hp | 14.9A | 1775 RPM | 254TC | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 1.15 | 60 Hz | 20 hp | 19.8A | 1770 RPM | 256TC | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 1.15 | 60 Hz | 25 hp | 23.9A | 1770 RPM | 284TC | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 1.15 | 60 Hz | 30 hp | 28.3A | 1770 RPM | 286TC | - | €3,744.49 | |
| 20018OT3G445T | 3 | 1.15 | 60 Hz | 200 hp | 229A | 1780 RPM | 445T | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 1.15 | 60 Hz | 150 hp | 162A | 3555 RPM | 405TS | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 1.15 | 60 Hz | 200 hp | 228A | 3575 RPM | 444TS | - | €20,850.80 |
