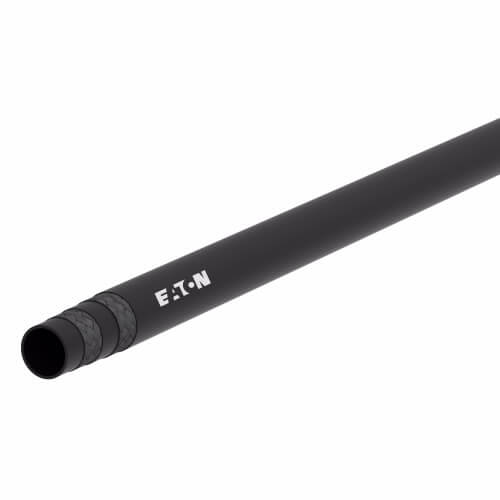

WEATHERHEAD H01712-250R Hydraulic Hose, 750 psi, 3/4 Inch Hose I.D., 1 9/32 Inch Hose O.D., 250 ft Hose Lg
Get it by Friday, Aug 28
13.00% off
€3,583.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose |
| Abrasion Resistant | Standard |
| Application | Fuels And Oils |
| Bend Radius | 5.91" |
| Burst Pressure | 3000 psi |
| Color | Black |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Compatible Fittings | U Series |
| Conductivity | Conductive |
| Construction | 2-ply braid |
| Cover Color | Black |
| Cover Material | Neoprene |
| Dash Size | 12 |
| Factory Crimp | Yes |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Height | 1 7/25" |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Neoprene |
| Hose Dash Size | -12 |
| Hose Fittings | U Series |
| Hose Inside Dia. | 3/4" |
| Hose Length | 250 ft. |
| Hose Outside Dia. | 1 1/4" |
| Hose Reinforcement Material | Fiber |
| Hose Reinforcement Type | 2 Braids Of Polyester |
| Hose Tube Material | Nitrile |
| Hose Weight | 125 lbs. |
| Inner Tube Material | Nitrile |
| Inside Dia. | 3/4" |
| Lay Line Style | Ink Jet |
| Length | 250 ft. |
| Max. Operating Temp. | 212°F |
| Max. Working Pressure @ 70f | 750 psi |
| Min. Bend Radius | 5.91" |
| Min. Operating Temp. | -40°F |
| Min. Pressure | 3000 psi |
| Min. Temp. | -40°F |
| Min. Working Temp. | -40°F |
| Operating Pressure | 750 psi |
| Outside Dia. | 1 7/25" |
| Overall Length | 250 ft. |
| Reinforcement Material | Polyester |
| Safety Factor | 4:1 |
| Segment Code | B |
| Temp. | -40°F to +212°F |
| Tube Material | Nitrile |
| Tube Wall Thickness | 1/4" |
| Type | Crimped |
| Wall Thickness | 1/4" |
| Weight Per 100 Feet | 43 lbs. |
| Width | 1 7/25" |
| Working Pressure | 750 psi |
Shipping Info:
| Ship weight (kg) | 56.25 |
| Ship height (cm) | 3.25 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 3.25 |
| HS code | 4009410000 |
| Country of Origin | US |
