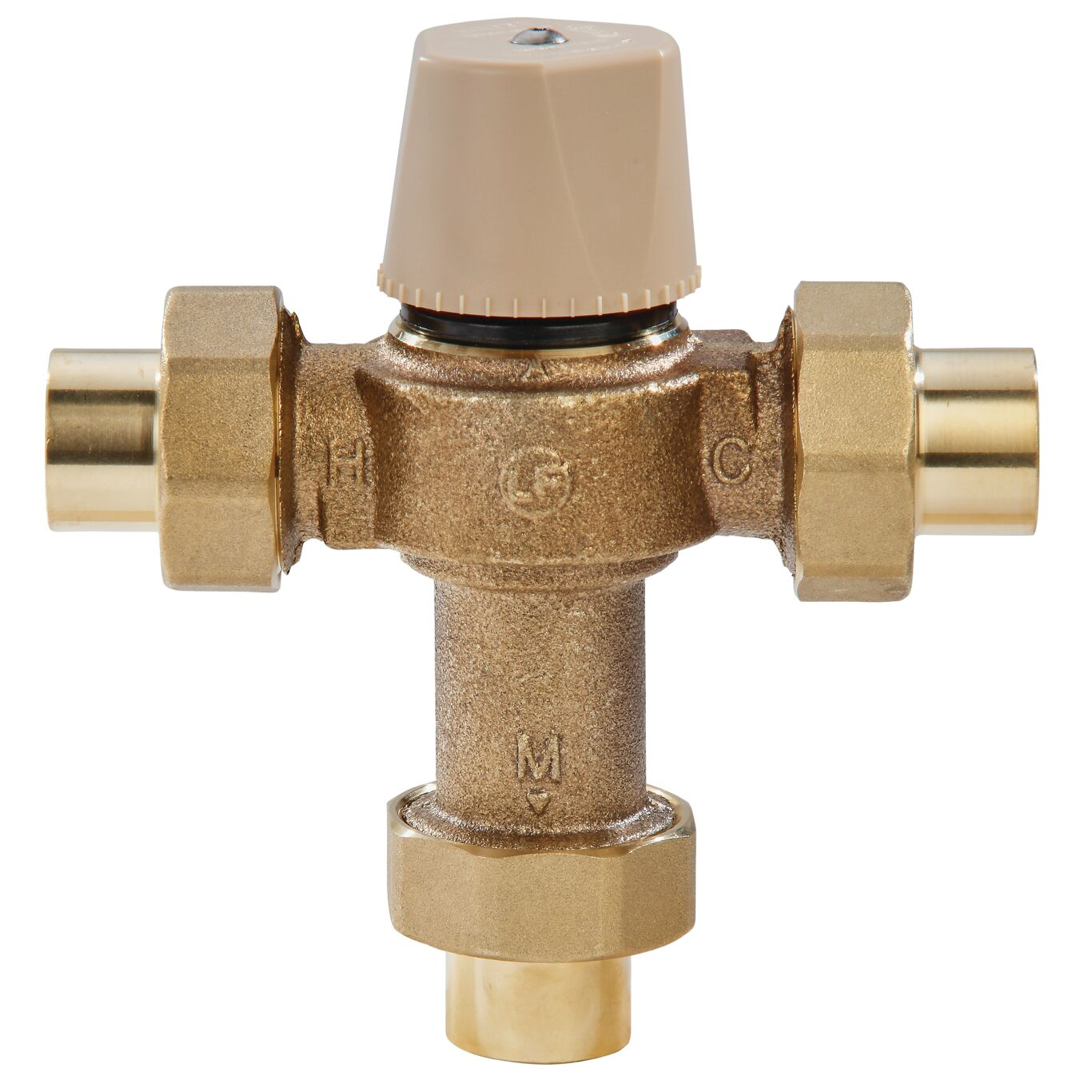

WATTS LFMMVM1-US 1 0559121 Thermostatic Mixing Valve, 0.5 To 13 Gpm Flow Rate
Get it by Monday, Dec 22
€299.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Thermostatic Mixing Valve |
| Body Finish | Rough Bronze |
| Body Material | Copper Silicon Alloy |
| Buy American Act Compliant | Yes |
| Capacity | 20 GPM at 125 psi |
| Cold Inlet Temp. | 39°F to 85°F |
| Cold Inlet Temperature Range | +39°F to +85°F |
| Cold Water Bypass | No |
| Cold Water Inlet Connection Size | 1" |
| Cold Water Inlet Connection Type | Socket |
| Cold Water Inlet Thread Type | Not Applicable |
| Cross Reference | 0559121 |
| Factory Set Temp. | 105°F |
| Flow Rate | 0.5-20 GPM |
| Hot Inlet Temp. | 120°F to 180°F |
| Hot Inlet Temperature Range | +120°F to +180°F |
| Hot Water Inlet Connection Size | 1" |
| Hot Water Inlet Connection Type | Socket |
| Hot Water Inlet Thread Type | Not Applicable |
| Inlet Connection | Socket |
| Inlet Size | 1" |
| Inlet Temperature (cold) | 39 to 85 Degree F |
| Inlet Temperature (hot) | 120 to 180 Degree F |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Flow Rate | 20 GPM |
| Max. Flow Rate | 20 Gpm at 125 Psi |
| Max. Temp. | 200°F |
| Max. Working Pressure | 150 psi |
| Maximum Pressure | 25% |
| Mfr. Series | LFMMV |
| Min. Flow Rate | 0.5 GPM |
| Minimum Differential Temperature | 5°F |
| Minimum Static Pressure | 30 psi |
| Outlet Connection | Socket |
| Outlet Connection Thread Type | Socket |
| Outlet Size | 1" |
| Outlet Temperature Accuracy | -7°F to +7°F |
| Outlet Thread Type | Not Applicable |
| Outlet Type | Socket |
| Pressure Differential Max. | 25% |
| Pressure Differential Max. | 25 % |
| Series | LFMMV Series |
| Static Pressure | 30 psi |
| Temperature Adjustment Range | 80°F to 120°F |
| Thermometer Type | No |
| Wi-fi Enabled | No |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Details:
Thermostatic Mixing Valve, 0.5 To 13 Gpm Flow Rate
Product Variants
| Product | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Inlet Type | Hot Inlet Temp. | Cold Inlet Temp. | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LFMMV-M1-US | 13 GPM | 1" | Solder | 1" | Union | +120° to +180°F | +33°F to +85°F | - | €581.43 | |
 |
LFMMV-M1-UT | 13 GPM | 1/2" | Threaded | 1/2" | Union | +120° to +180°F | +33°F to +85°F | - | €300.75 | |
 |
LFMMV-M1-UT | 13 GPM | 3/4" | Threaded | 3/4" | Union | +120° to +180°F | +33°F to +85°F | - | €381.18 | |
|
LFMMV-M1-UT | 13 GPM | 1" | Threaded | 1" | Union | +120° to +180°F | +33°F to +85°F | - | €626.57 | |
 |
LFMMV-M1-QC | 13 GPM | 1/2" | Quick Connect | 1/2" | Quick Connect | +120° to +180°F | +33°F to +85°F | - | €350.75 | |
 |
LFMMV-M1-QC | 13 GPM | 3/4" | Quick Connect | 3/4" | Quick Connect | +120° to +180°F | +33°F to +85°F | - | €281.16 | |
|
LFMMV-M1-QC | 13 GPM | 1" | Quick Connect | 1" | Quick Connect | +120° to +180°F | +33°F to +85°F | - | €458.13 |
