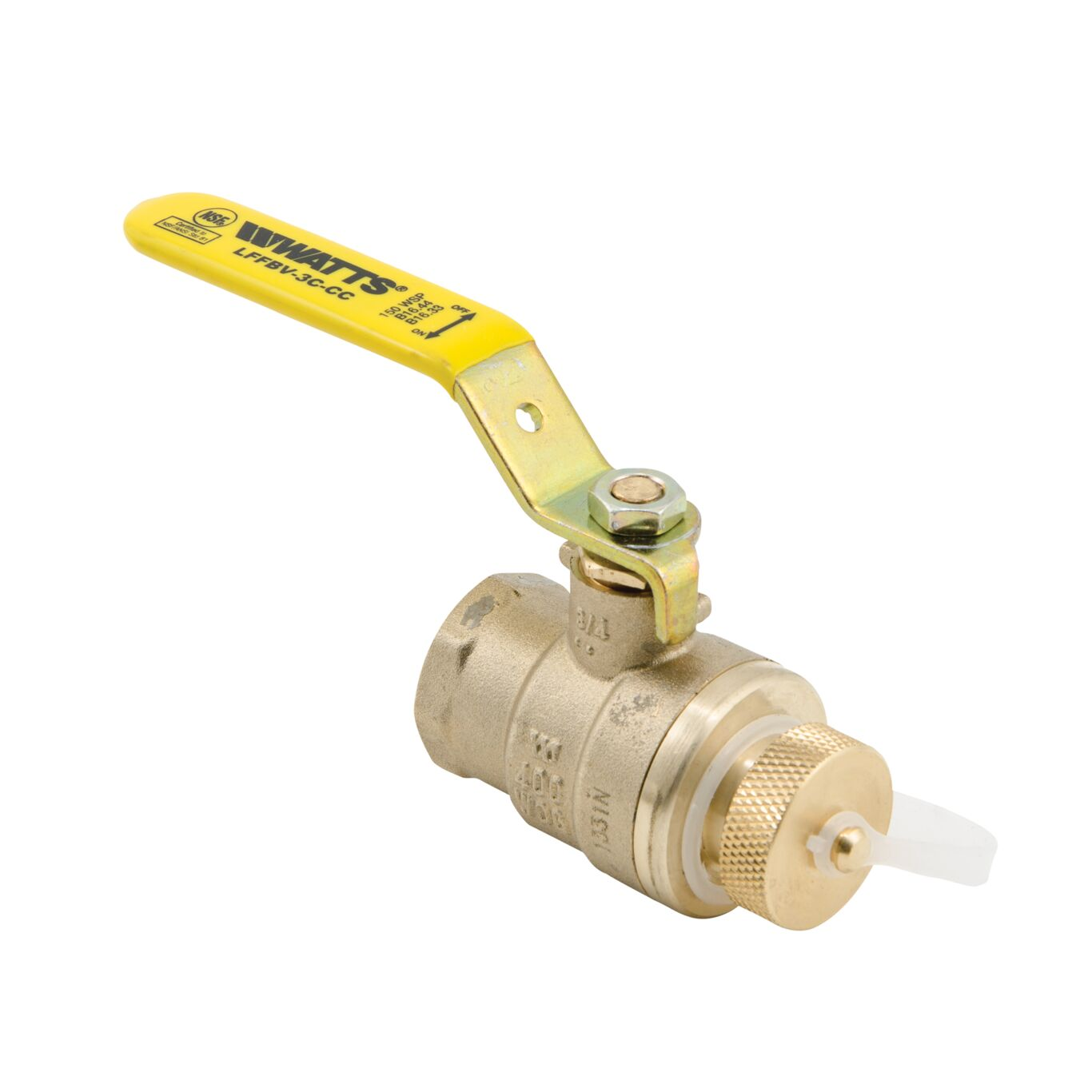

WATTS LFFBV-3C-CC 1/2 0123474 Ball Valve, 1/2 Inch Inlet, 400 Deg. F Max. Temp., 400 Psi
Get it by Wednesday, Dec 17
€35.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Actuator | No |
| Actuator Type | No |
| Assembled | Yes |
| Assembled Dry | Yes |
| Balance Stop Plate | No |
| Ball Material | Chrome Plated Brass |
| Body Finish | Brass |
| Body Material | Lead Free Copper Silicon Alloy Brass |
| Buy American Act Compliant | No |
| Class Rating | Not Applicable |
| Control Type | Lever Handle |
| Cross Reference | 0123474 |
| Cv Rating | Not Applicable |
| Electrical Rating | Not Applicable |
| Inlet Connection | Female Threaded |
| Inlet Connection Size | 1/2" |
| Inlet Size | 1/2" |
| Inlet Thread Type | NPT |
| Inlet Type | Female Threaded |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Temp. | 400°F |
| Mfr. Series | LFFBV-3C-CC Series |
| Min. Temp. | -40°F |
| Minimum Temp. | 0°F |
| Operating Torque | Not Applicable |
| Outlet Connection | Male Threaded |
| Outlet Connection Thread Type | Male Threaded |
| Outlet Size | 1/2" |
| Outlet Thread Type | NPT |
| Outlet Type | Male Threaded |
| Port Type | Full |
| Product Datasheet | watts-lfb6400-1.pdf |
| Seat Material | Virgin PTFE |
| Shaft Material | Brass |
| Stem Packing Material | Virgin PTFE |
| Stem Shaft Material | Brass |
| Stem Type | Bottom Loaded Blowout Proof |
| Thrust Washer Material | Virgin PTFE |
| Valve Design | Two Piece |
| Valve Style | 2 Piece |
| Washer Material | Virgin PTFE |
| Wog (psi) | 400 Psi |
Shipping Info:
| Ship weight (kg) | 0.3 |
Product Details:
Ball Valve, 1/2 Inch Inlet, 400 Deg. F Max. Temp., 400 Psi
Documentation:
Product Variants
| Product | Model | Inlet Size | Outlet Size | Outlet Type | Inlet Type | Min. Temp. | Inlet Thread Type | Outlet Connection | Inlet Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

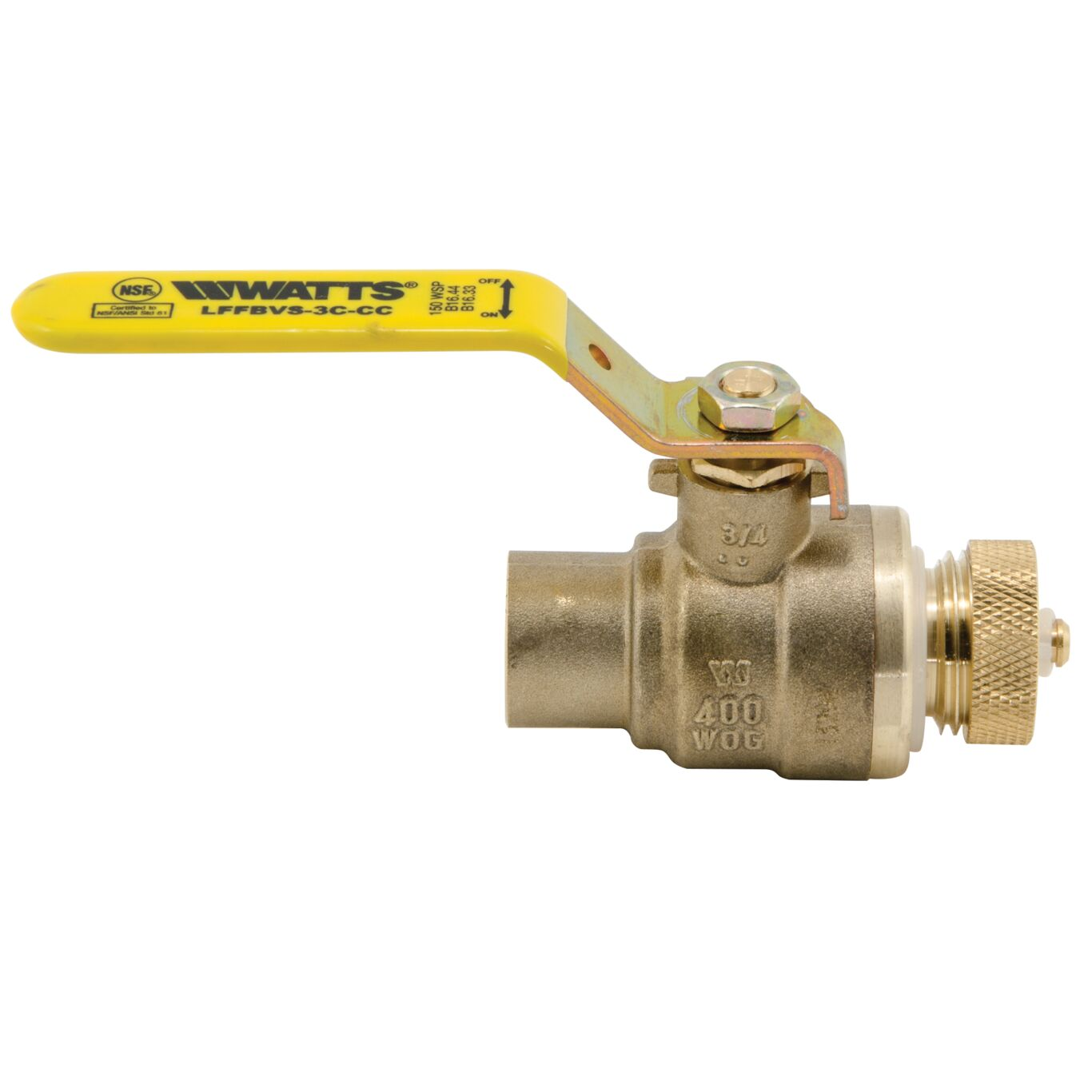

LFFBVS-3C-CC 3/4 | 20 mm | 3/4" | Socket | Socket | 0°F | Not Applicable | - | - | €46.71 | |
|
LFFBVS-3C-CC 1/2 | 13 mm | 1/2" | Socket | Socket | 0°F | Not Applicable | Socket | Socket | €35.88 |
