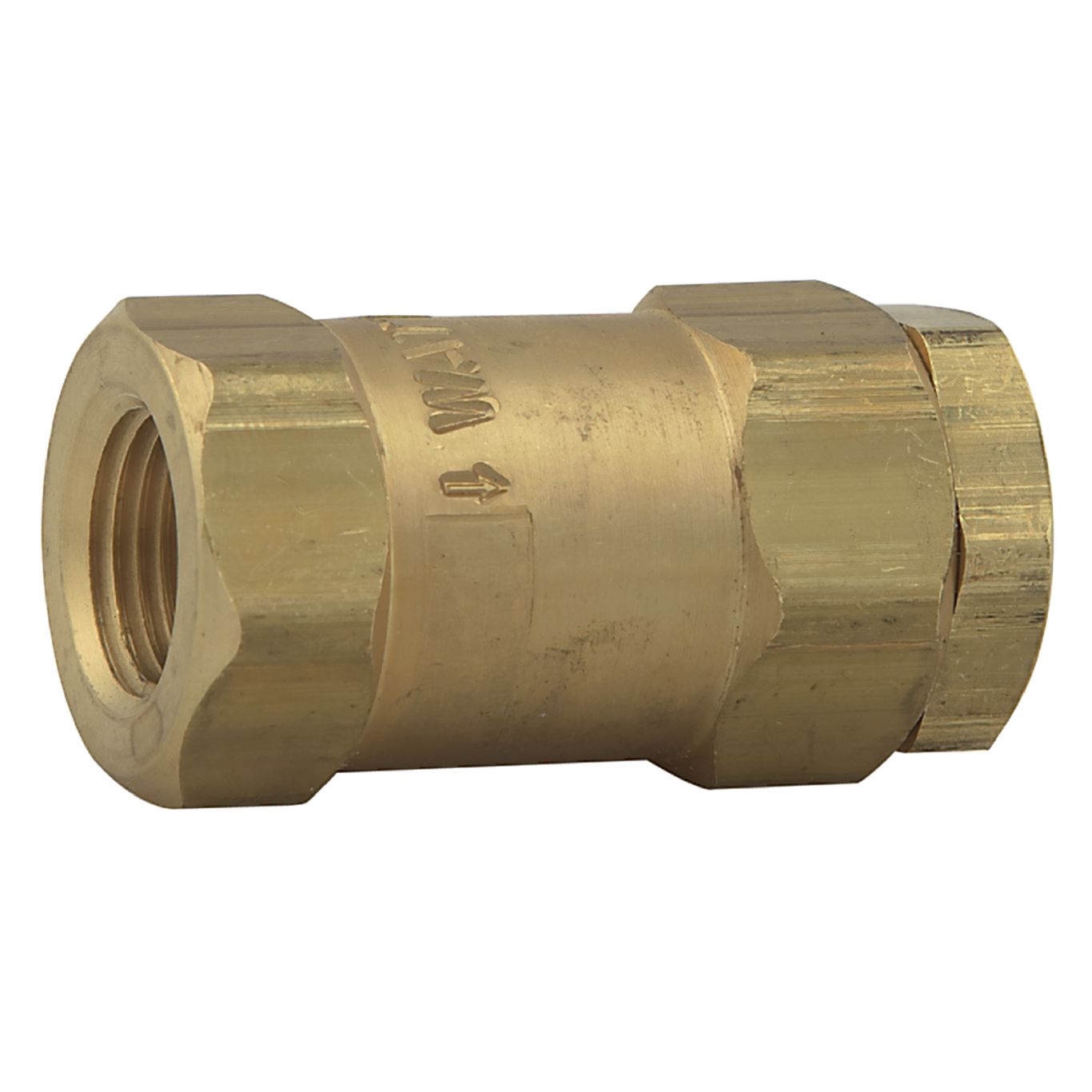

WATTS LF6 1/2 0123068 Check Valve, Straight, 200 Psi, 1/2 Inch Inlet, Copper Silicon
Item: CB2FJEModel: LF6 1/2Cross Ref: 793HW5 / 0123068
7 In Stock
Ships within 2 days via
10.00% off
€191.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | Copper Silicon Alloy |
| Body Pattern | Straight |
| Body Type | Straight |
| Check Mechanism | Disc |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Cross Reference | 0123068 |
| Disc Material | Copper Silicone Alloy |
| For Media | General Purpose |
| Includes Counterweight | No Counterweight |
| Inlet Connection | Female Threaded |
| Inlet Size | 1/2" |
| Inlet Thread Type | FPT |
| Inlet Type | Female Threaded |
| Max. Operating Pressure | 200 psi |
| Max. Operating Temp. | 180 Deg. F |
| Max. Operating Temp. | 180°F |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | Not Rated |
| Media Temp. Range | 33°F to 180°F |
| Min. Temp. | 0°F |
| Mounting Orientation | Horizontal, Vertical |
| Operating Temperature - Minimum | 33°F |
| Outlet Connection | Female Threaded |
| Outlet Size | 1/2" |
| Outlet Type | Female Threaded |
| Overall Length | 2" |
| Pipe Size | 1/2" |
| Pressure Rating | 13.8 Bar |
| Series | LF6 |
| Silent Check | Silent |
| Thread Type | FPT |
| Valve Body Style | Inline |
| Wog (psi) | 200 psi |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Details:
Check Valve, Straight, 200 Psi, 1/2 Inch Inlet, Copper Silicon
Product Variants
| Model | Mounting Orientation | Min. Temp. | Outlet Size | Inlet Thread Type | Inlet Size | Seat Material | Body Material | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LF6 1/4 | Horizontal, Vertical | 0°F | 1/4" | FPT | - | - | Copper Silicon Alloy | FNPT x FNPT | €225.36 | |
| LF6 3/8 | Horizontal, Vertical | 0°F | 3/8" | NPT | 3/8" | Metal | Copper Silicon Alloy | FNPT x FNPT | €264.57 | |
| LF6 1 | Horizontal, Vertical | 0°F | 1" | FPT | 1" | - | Copper Silicon Alloy | FNPT x FNPT | €297.03 | |
| LF6 3/4 | Horizontal/Vertical | 33°F | - | - | - | Elastomer | Copper Silicon Alloy | FNPT x FNPT | €310.90 |
