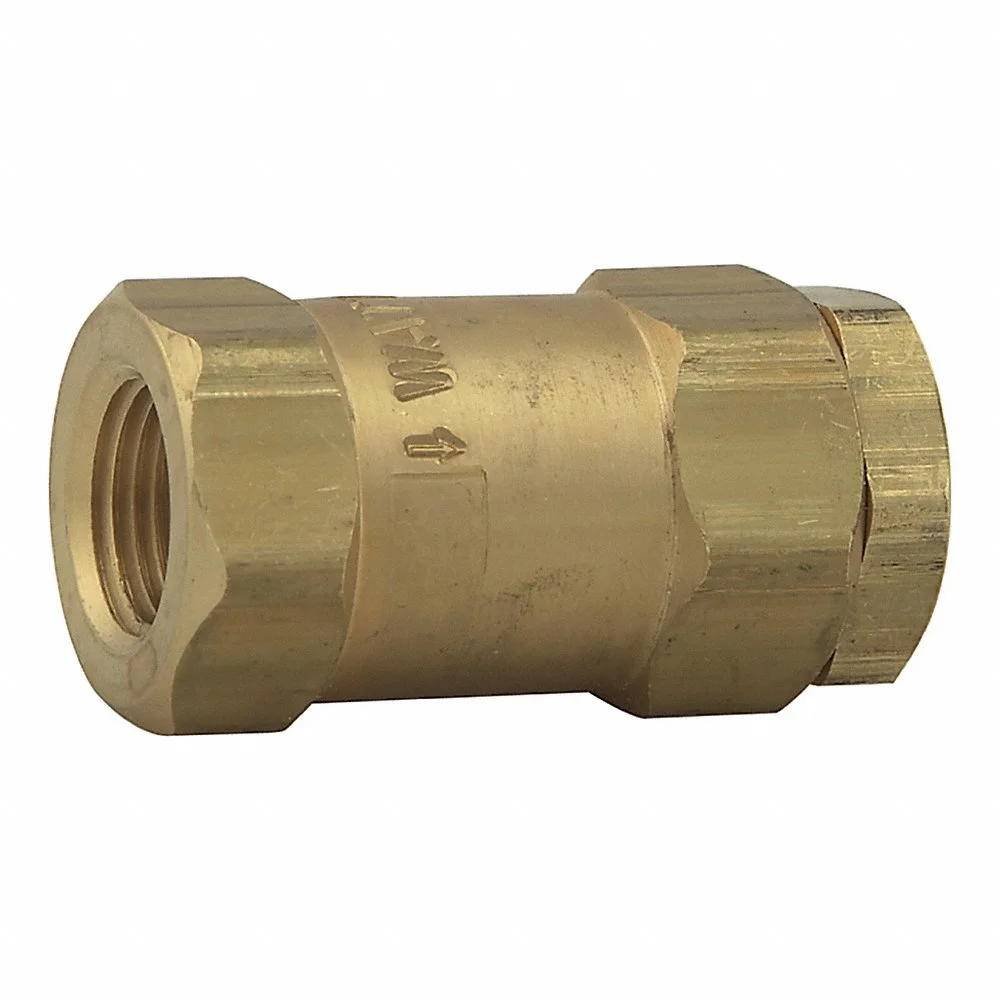

WATTS LF6 3/4 0123069 Check Valve, Disc, Inline Valve Body, 3/4 Inch Pipe Size, FNPT x FNPT, Copper Silicon Alloy
Item: CU9TVNModel: LF6 3/4Cross Ref: 793HW6 / 0123069
7 In Stock
Ships within 2 days via
10.00% off
€279.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | Copper Silicon Alloy |
| Check Mechanism | Disc |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Cross Reference | 0123069 |
| Disc Material | Copper Silicone Alloy |
| Flow Design | Single |
| For Media | General Purpose |
| Full Flow | No |
| Includes Counterweight | No Counterweight |
| Length | 2 1/2" |
| Max. Pressure (cwp) | 200 psi |
| Max. Steam Pressure | Not Rated |
| Max. Temp. | 180°F |
| Max. Water Pressure | 200 psi |
| Mechanism And Body Design | Inline Swing |
| Media Temp. Range | 33°F to 180°F |
| Min. Temp. | 33°F |
| Mounting Orientation | Horizontal/Vertical |
| Operating Temperature - Maximum | 180°F |
| Overall Height | 1 1/4" |
| Overall Length | 2.5" |
| Pipe Size, Tube Size | 3/4" |
| Seat Material | Elastomer |
| Silent Check | Silent |
| Valve Body Style | Inline |
| Width | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
Product Variants
| Model | Mounting Orientation | Min. Temp. | Outlet Size | Inlet Thread Type | Inlet Size | Seat Material | Body Material | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LF6 1/4 | Horizontal, Vertical | 0°F | 1/4" | FPT | - | - | Copper Silicon Alloy | FNPT x FNPT | €225.36 | |
| LF6 3/8 | Horizontal, Vertical | 0°F | 3/8" | NPT | 3/8" | Metal | Copper Silicon Alloy | FNPT x FNPT | €264.57 | |
| LF6 1/2 | Horizontal, Vertical | 0°F | 1/2" | FPT | 1/2" | - | Copper Silicon Alloy | FNPT x FNPT | €212.69 | |
| LF6 1 | Horizontal, Vertical | 0°F | 1" | FPT | 1" | - | Copper Silicon Alloy | FNPT x FNPT | €297.03 |
