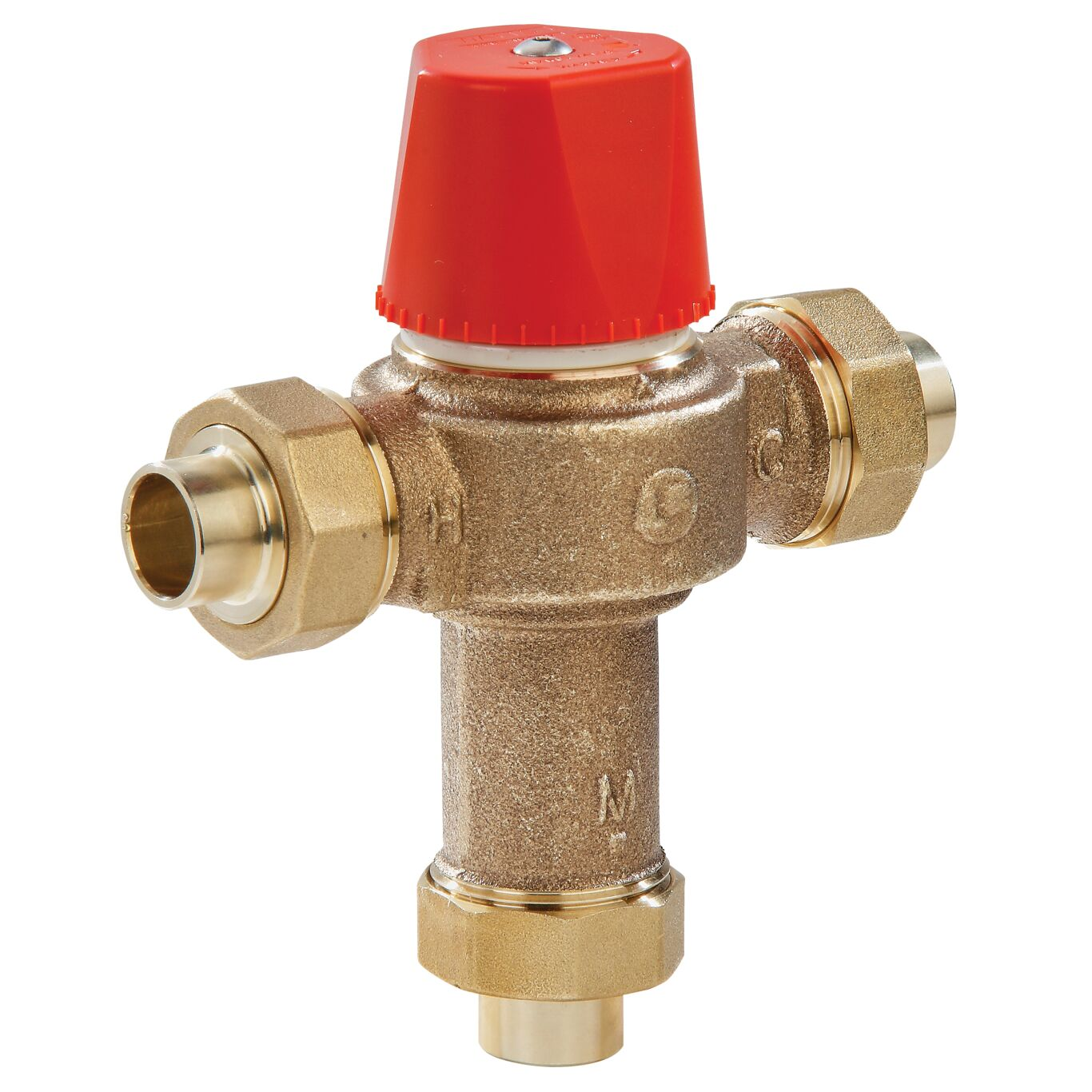

WATTS LF1170M2-US 3/4 0559103 Hot Water Control Valve, 120 To 200 Deg. F, 3/4 Inch Outlet
Get it by Friday, Aug 21
€271.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Control Valve |
| Body Finish | Rough Bronze |
| Buy American Act Compliant | Yes |
| Capacity | 23 GPM at 45 psi |
| Cold Inlet Temp. | 40°F to 85°F |
| Cold Water Bypass | No |
| Cold Water Inlet Connection Size | 3/4" |
| Cold Water Inlet Connection Type | Socket |
| Cold Water Inlet Thread Type | Not Applicable |
| Cross Reference | 0559103 |
| Flow Rate | 0.5-23 GPM |
| Hot Inlet Temp. | 120°F to 200°F |
| Hot Water Inlet Connection Size | 3/4" |
| Hot Water Inlet Connection Type | Socket |
| Hot Water Inlet Thread Type | Not Applicable |
| Inlet (cold) Temp. | +40°F to +85°F |
| Inlet (hot) Temp. Range | +120°F to +200°F |
| Inlet Temperature (cold) | 40 to 85 Degree F |
| Inlet Temperature (hot) | 120 to 200 Degree F |
| Max. Temp. | 200°F |
| Max. Working Pressure | 150 psi |
| Mfr. Series | LF1170 |
| Min. Differential Temp. | 5°F |
| Outlet Connection Thread Type | Socket |
| Outlet Size | 3/4" |
| Outlet Temp. Accuracy | -7°F to +7°F |
| Outlet Thread Type | Not Applicable |
| Outlet Type | Socket |
| Pressure Differential Max. | 0.25 |
| Static Pressure | 30 psi |
| Temp. Adjustment | 90°F to 160°F |
| Thermometer Type | No |
| Valve Type | Kit |
| Wi-fi Enabled | No |
Shipping Info:
| Ship weight (kg) | 1.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Details:
Hot Water Control Valve, 120 To 200 Deg. F, 3/4 Inch Outlet
Product Variants
| Product | Model | Hot Inlet Temp. | Flow Rate | Cold Inlet Temp. | Outlet Size | Outlet Type | Overall Width | Valve Type | Mfr. Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1/2 LF1170M2-PEX | 120°F to 200°F | 0.5-23 GPM | 40°F to 85°F | 1/2" | FNPT | 5 1/4" | Thermostatic | - | €420.98 | |
 |
LF1170-M2-US | +120°F to +200°F | 23 GPM | +40°F to +85°F | 1" | Solder | 5 13/16" | Thermostatic | - | €442.80 | |
 |
LF1170-M2-UT | +120°F to +200°F | 23 GPM | +40°F to +85°F | 1" | Threaded | 5 13/16" | Thermostatic | - | €579.94 | |
 |
LF1170M2-QC 3/4 | +120°F to +200°F | 23 GPM | +40°F to +85°F | 3/4" | Quick Connect | 6 15/16" | Thermostatic | LF1170 | €192.12 | |
 |
LF1170M2-QC 1 | +120°F to +200°F | 23 GPM | +40°F to +85°F | 1" | Quick Connect | - | Thermostatic | LF1170 | €407.29 | |
 |
LFL1170M2-PEX 1 | 120°F to 200°F | 0.5-23 GPM | 40°F to 85°F | 1" | Crimped | - | Kit | LFL1170 Series | €671.66 | |
 |
LF1170M2-QC 1/2 | 120°F to 200°F | 0.5-23 GPM | 40°F to 85°F | 1/2" | Quick Connect | - | Kit | LF1170 | €448.33 |
