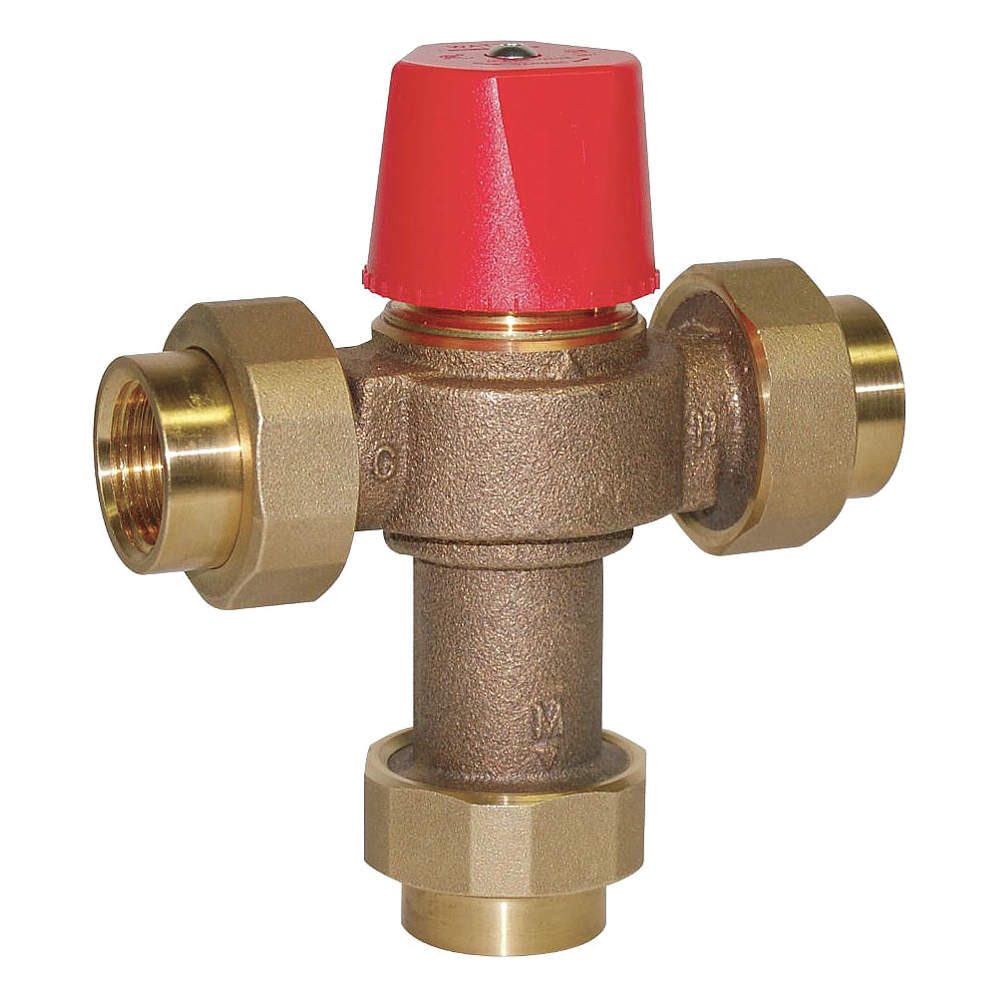

WATTS LF1170-M2-UT Thermostatic Mixing Valve, 1 Inch Inlet and Outlet Connection Size, NPT, Brass
Item: AF8XQTModel: LF1170-M2-UTCross Ref: 29HZ46
7 In Stock
Ships within 2 days via
10.00% off
€521.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermostatic Mixing Valve |
| Body Material | Brass |
| Cold Inlet Temp. | +40°F to +85°F |
| Connection Type | NPT |
| Flow Rate | 23 GPM |
| For Use With | Domestic Hot Water Applications |
| Hot Inlet Temp. | +120°F to +200°F |
| Hot Inlet Temp. Range | 120°F to 200°F |
| Includes | Check Valves, Integral Filter Washers, Locking Mechanism, Solid Wax Hydraulic Principle Thermostat |
| Includes Temperature Gauge | No |
| Inlet (cold) Temperature Range | 40°F to 85°F |
| Inlet Connection Size | 1" |
| Inlet Size | 1" |
| Inlet Temperature (cold) | 40 Degrees to 85 Degrees F |
| Inlet Temperature (hot) | 120 Degrees to 200 Degrees F |
| Inlet Type | Union |
| Max. Operating Pressure | 150 psi |
| Max. Pressure | 150 psi |
| Outlet Size | 1" |
| Outlet Temperature Range | 90°F to 160°F |
| Outlet Type | Threaded |
| Overall Height | 5 5/8" |
| Overall Width | 5 13/16" |
| Temp. Range | +90°F to +160°F |
| Valve Type | Thermostatic |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 18.54 |
| Ship width (cm) | 14.48 |
| HS code | 8481400000 |
| Country of Origin | US |
Product Variants
| Product | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Inlet Type | Capacity | Temperature Adjustment Range | Cold Inlet Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

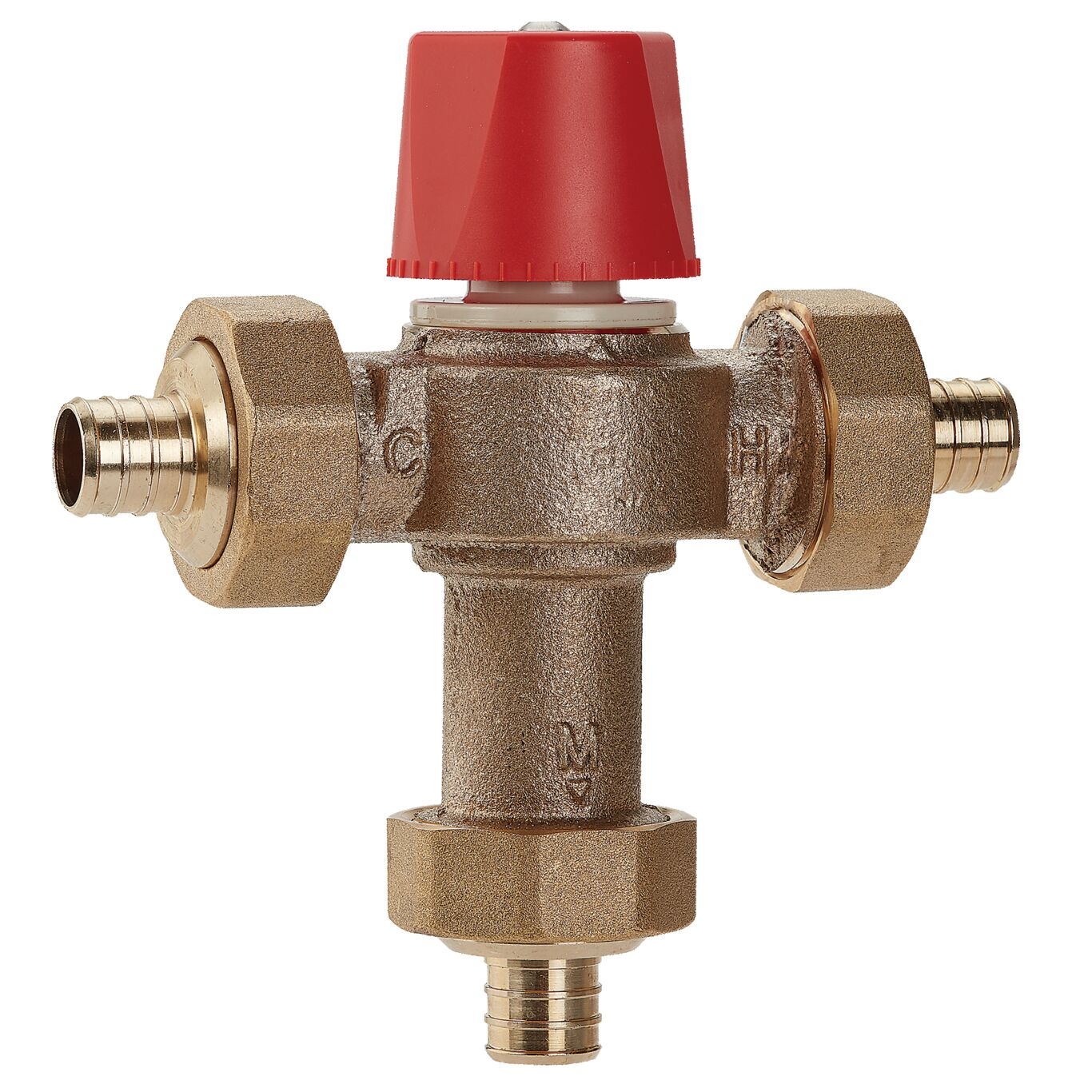

1/2 LF1170M2-PEX | 0.5-23 GPM | 1/2" | FNPT | 1/2" | FNPT | 23 GPM at 45 psi | - | 40°F to 85°F | €420.98 | |
 |

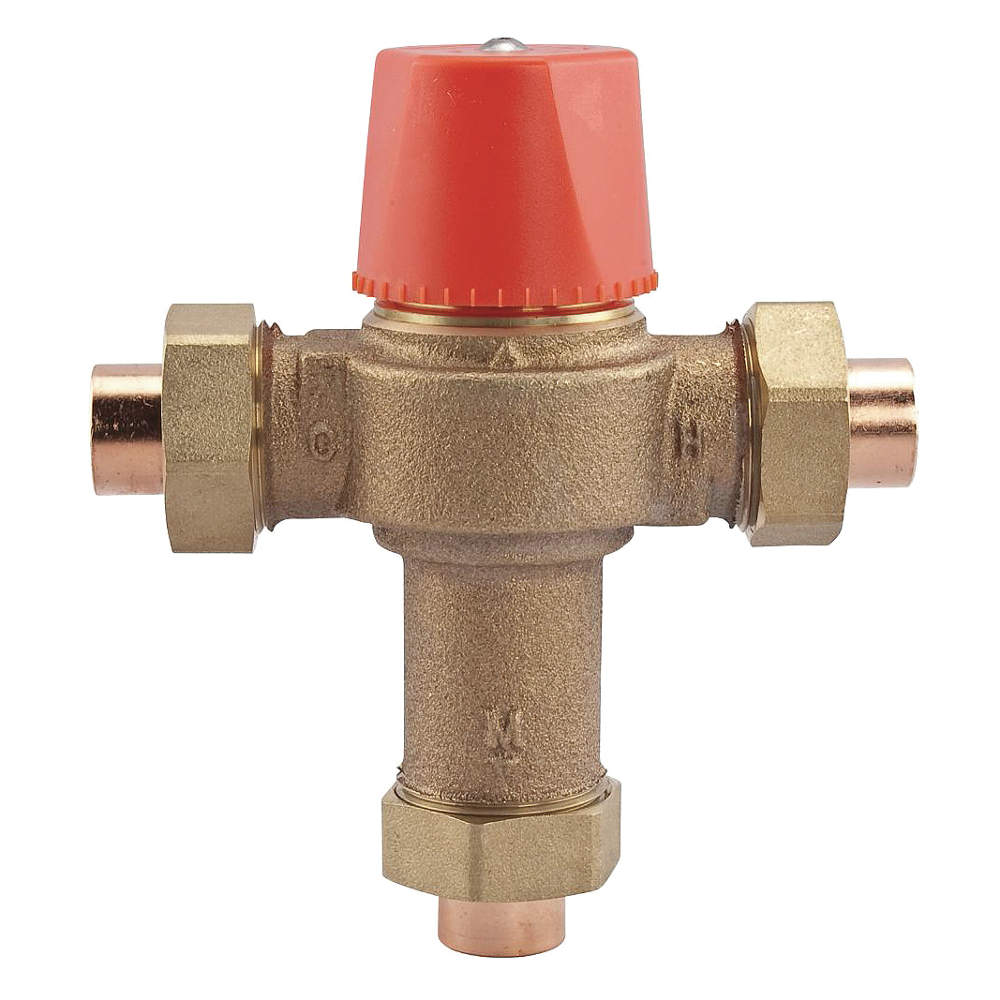

LF1170-M2-US | 23 GPM | 1" | Solder | 1" | Union | - | - | +40°F to +85°F | €442.80 | |
 |

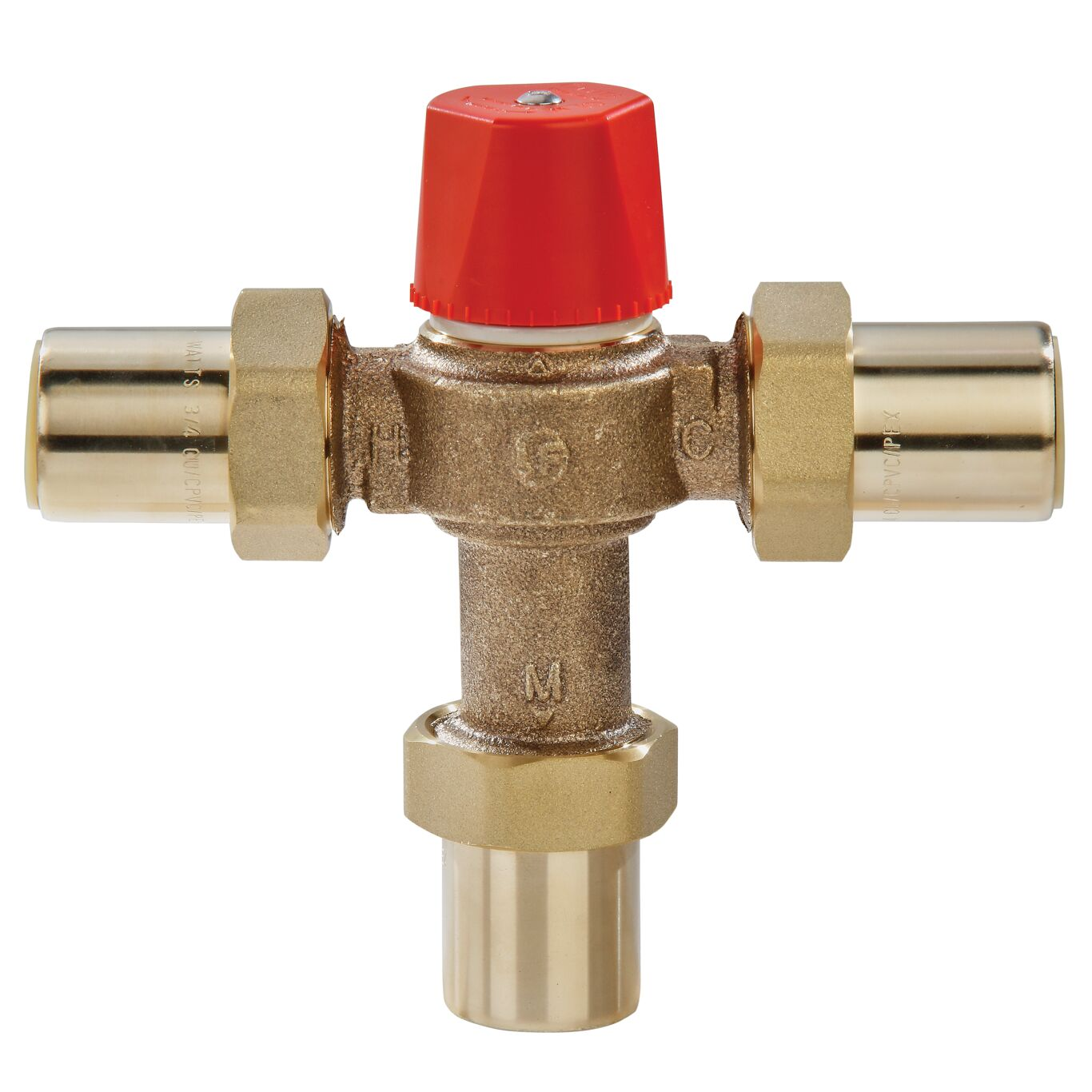

LF1170-M2-QC | 23 GPM | 3/4" | Quick Connect | 3/4" | Quick Connect | - | - | +40°F to +85°F | €192.12 | |
 |

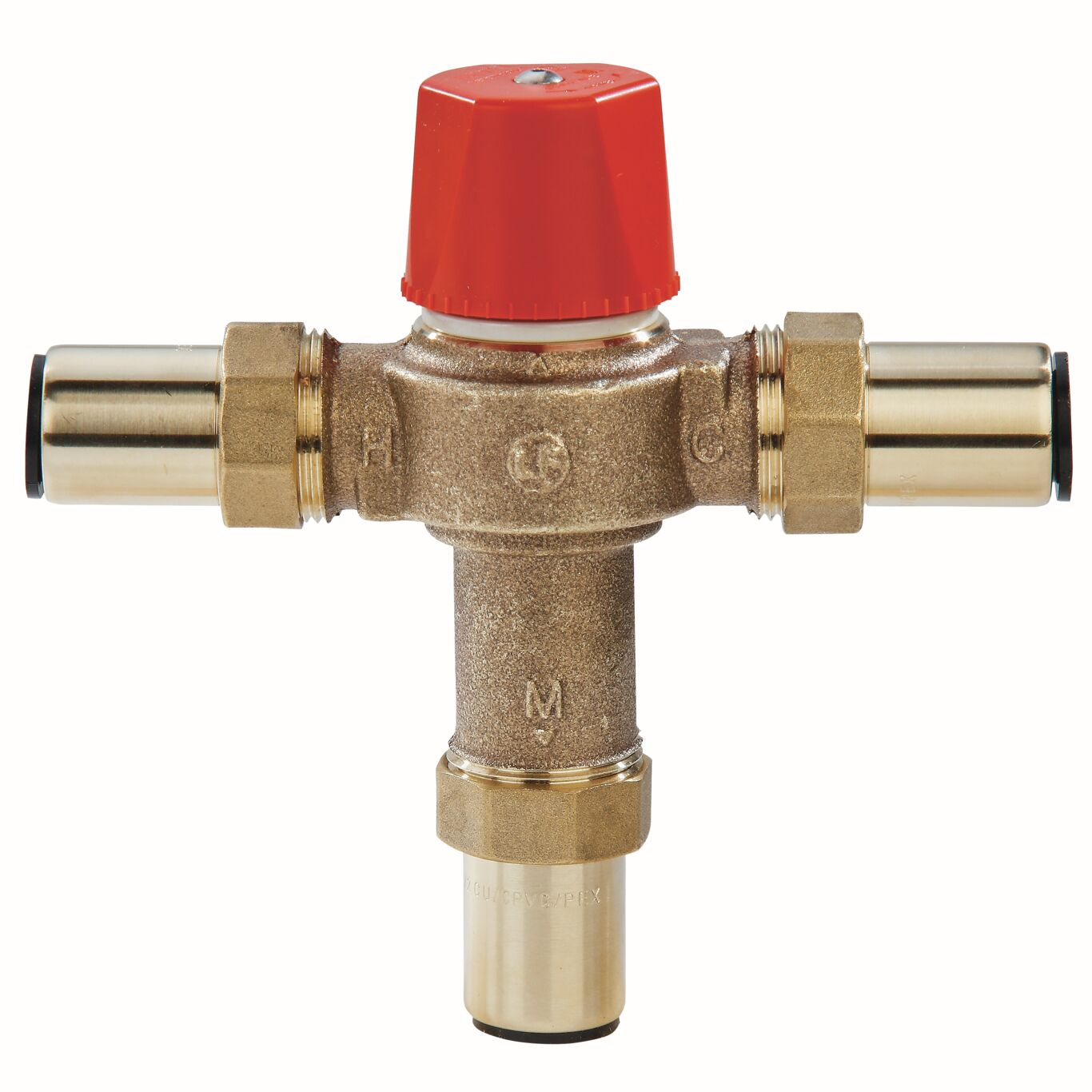

LF1170-M2-QC | 23 GPM | 1" | Quick Connect | 1" | Quick Connect | - | - | +40°F to +85°F | €407.29 | |
 |

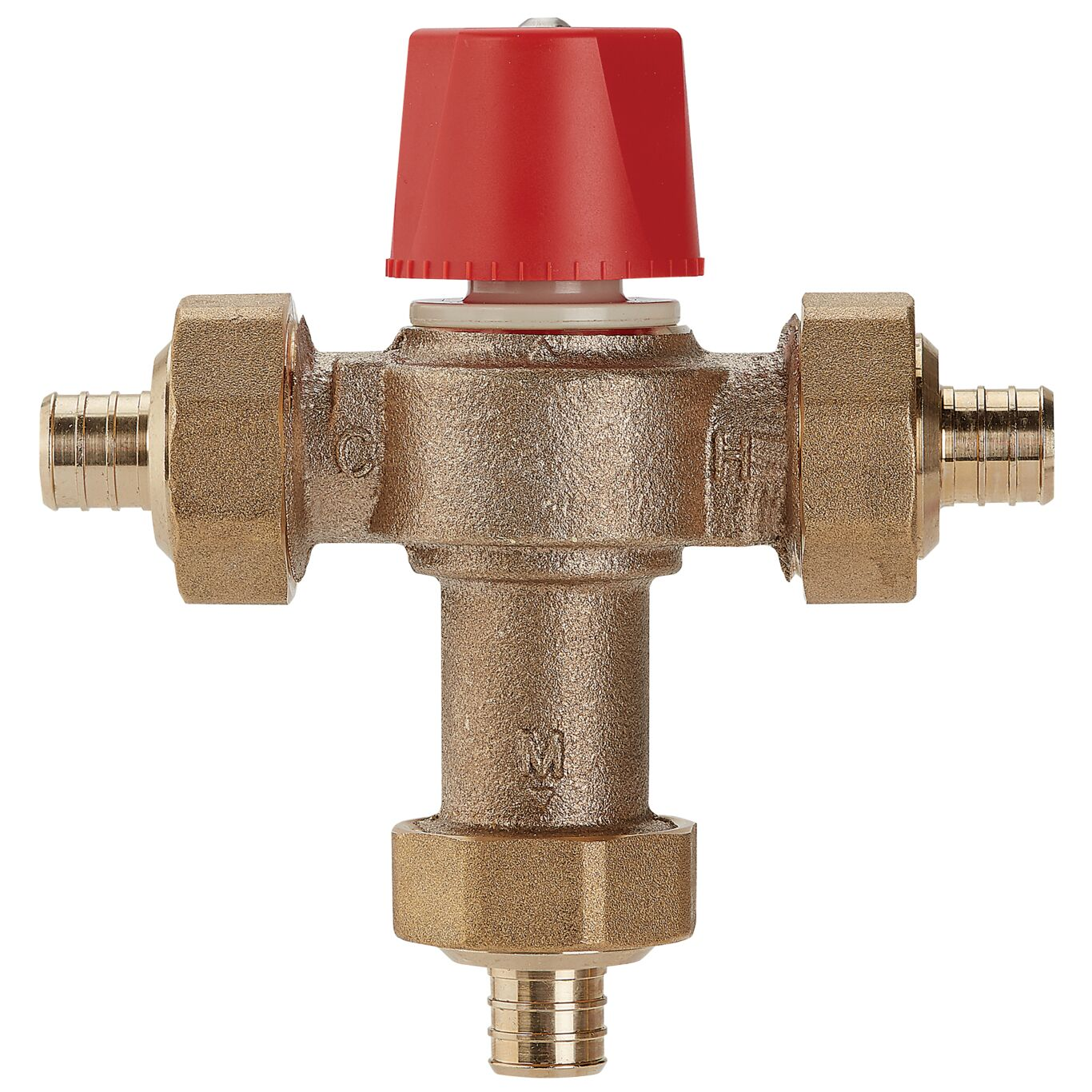

LFL1170M2-PEX 1 | 0.5-23 GPM | 1" | Crimped | - | - | 23 GPM at 45 psi | 60°F to 120°F | 40°F to 85°F | €671.66 | |
 |

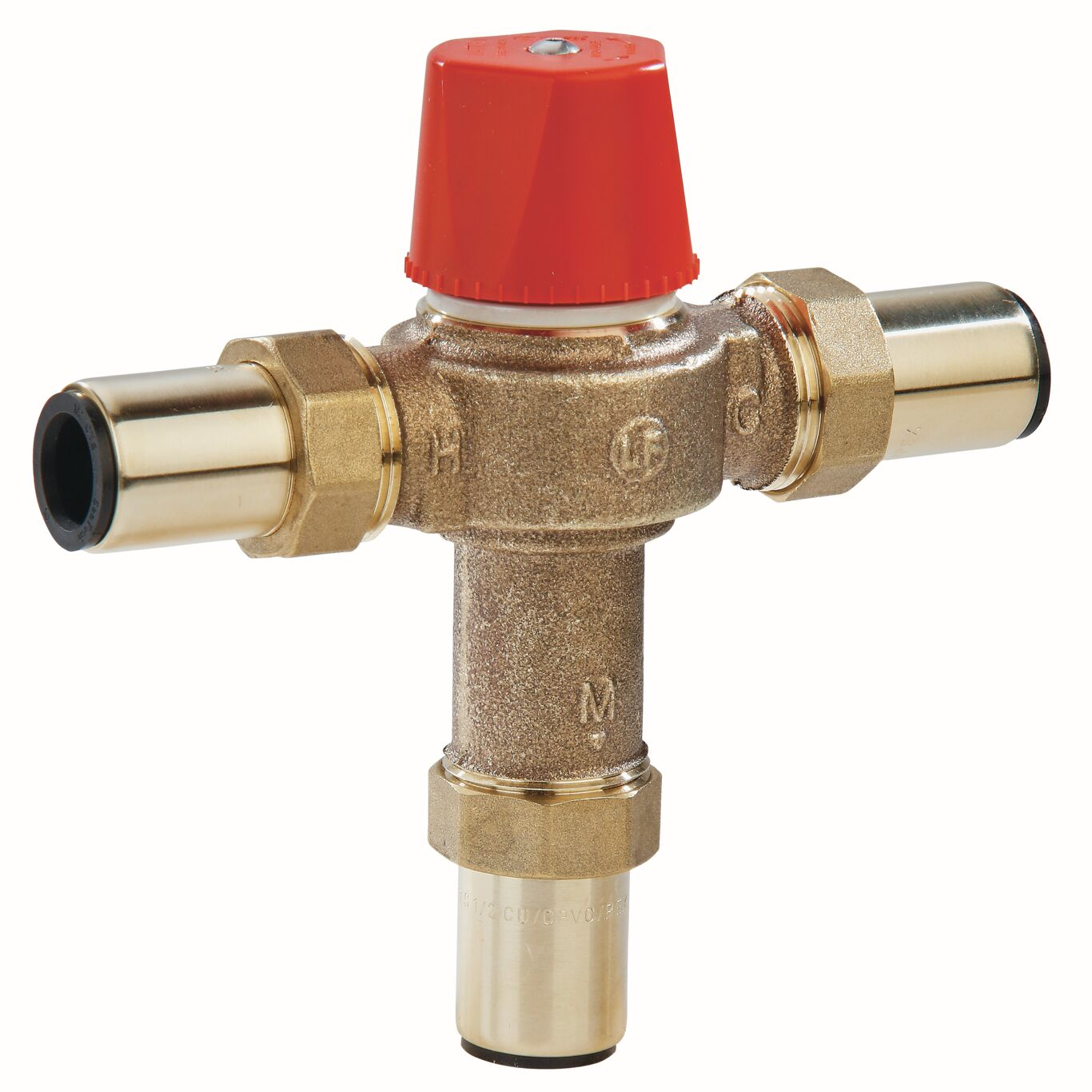

LF1170M2-QC 1/2 | 0.5-23 GPM | 1/2" | Quick Connect | - | - | 23 GPM | - | - | €448.33 | |
|
LFL1170M2-PEX 3/4 | 0.5-23 GPM | 3/4" | Crimped | - | - | 23 GPM at 45 psi | 60°F to 120°F | 40°F to 85°F | €540.38 |
