WATTS BF03-121-4G 8 0526831 Lug Butterfly Valve, 2919 In. Lbs. Torque, 8 Inch Inlet
€1,449.26 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| Body Material | Ductile Iron |
| Class Rating | 125/150 |
| Control Type | Gear Operator |
| Cv Rating | 3136 GPM |
| Disc Material | Aluminum Bronze |
| Dry Operating Torque | 2919 lbs.-in. |
| Inlet Size | 8" |
| Inlet Type | Lug |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Operating Temp. | 248°F |
| Max. Working Pressure | 200 psi |
| Mfr. Series | BF03-121 Series |
| Min. Temp. | 5°F |
| Outlet Size | 8" |
| Outlet Type | Lug |
| Seat Material | EPDM |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 416 |
| Silicone Free | Yes |
| Valve Design | Lug |
| Wet Operating Torque | 1697 lbs.-in. |
Product Details:
Lug Butterfly Valve, 2919 In. Lbs. Torque, 8 Inch Inlet
Product Variants
| Model | Disc Material | Seat Material | Wet Operating Torque | Dry Operating Torque | Outlet Size | Max. Working Pressure | Control Type | Min. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

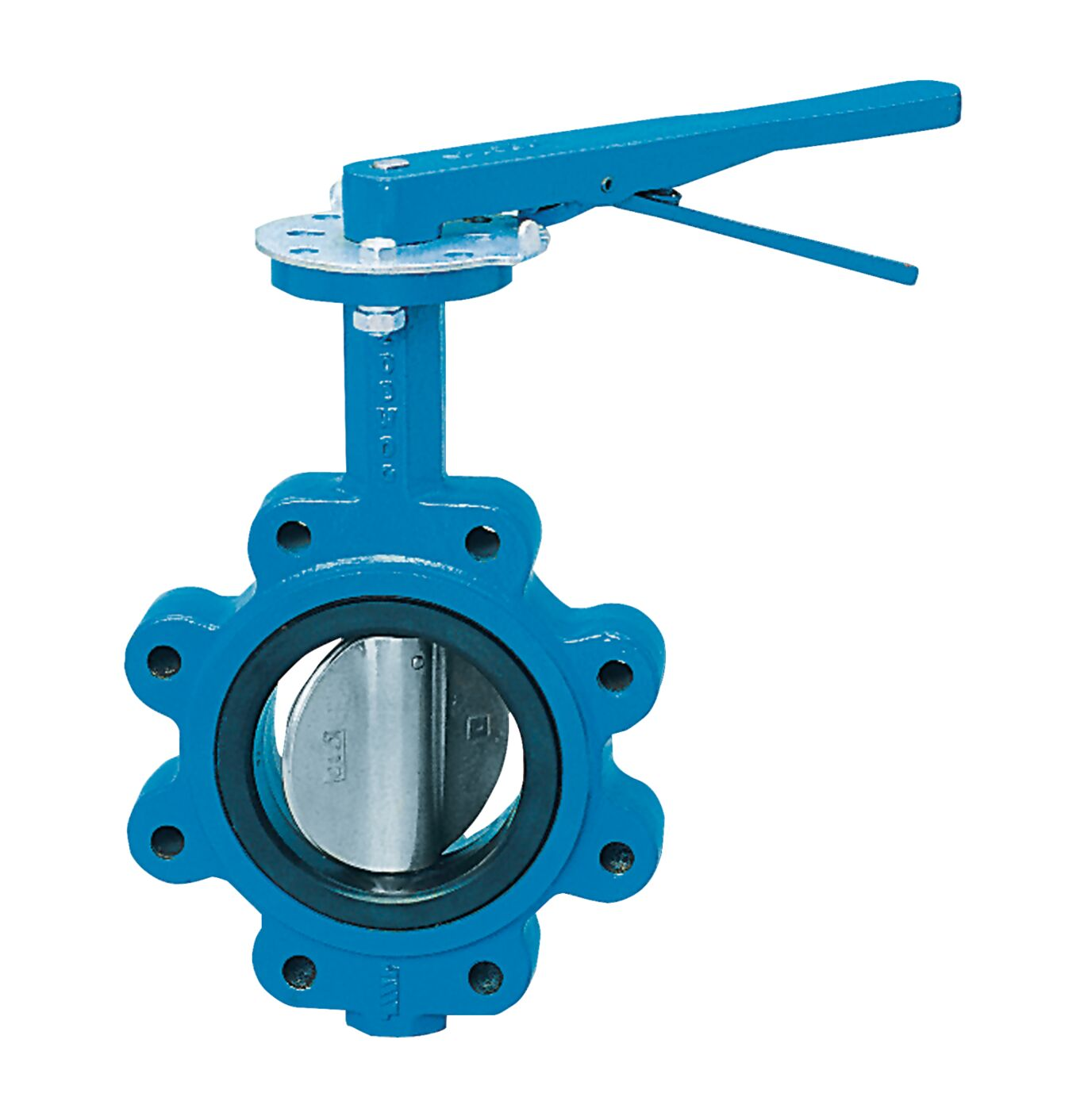

| BF-03-121-1G-M2 16 | Aluminum Bronze Alloy | EPDM | 5500 lbs.-in. | 10027 lbs.-in. | 16" | 150 psi | Gear Operator | 33°F | €6,333.60 | RFQ
|
| BF03-121-45 2 1/2 | Aluminum Bronze | EPDM | 190 lbs.-in. | 289 lbs.-in. | 2 1/2" | 200 psi | Lever Handle | 5°F | €560.58 | RFQ
|
| BF03-121-45 2 | Aluminum Bronze | EPDM | 134 lbs.-in. | 214 lbs.-in. | 2" | 200 psi | Lever Handle | 5°F | €551.59 | RFQ
|
| BF 03-221-15 | Aluminum Bronze Alloy | EPDM | 250 lbs.-in. | 387 lbs.-in. | 3" | 200 psi | Lever Handle | 5°F | €558.34 | RFQ
|
| BF03-121-45 4 | Aluminum Bronze | EPDM | 390 lbs.-in. | 644 lbs.-in. | 4" | 200 psi | Lever Handle | 5°F | €759.37 | RFQ
|
| BF03-121-45 6 | Aluminum Bronze Alloy | EPDM | 907 lbs.-in. | 1542 lbs.-in. | 6" | 200 psi | Lever Handle | 5°F | €1,083.75 | RFQ
|
| BF03-121-4G 6 | Aluminum Bronze | EPDM | 907 lbs.-in. | 1542 lbs.-in. | 6" | 200 psi | Gear Operator | 5°F | €1,065.81 | RFQ
|
