WATTS 876VDCDA-LG-GPM 10 22301 Backflow Preventer Assembly, 10 Inch Nominal Size, Dual Check, Ductile Iron
€16,262.61 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Backflow Preventer Assembly |
| Armortek Technology | No |
| Backflow Preventer Type | Double Check Detector Assembly |
| Body Finish | Epoxy Coated |
| Body Material | Ductile Iron |
| Body Pattern | N Pattern |
| Buy American Act Compliant | No |
| By Pass | Yes |
| Bypass Size | 3/4" |
| Cap And Tether | No |
| Cross Reference | 22301 |
| Elbow Fitting | Yes |
| Hazard Protection Level | Non Health Hazard |
| Hot And Harsh Water | No |
| Hydrant Connection | No |
| Inlet Connection Size | 10" |
| Inlet Connection Type | Flanged Joint |
| Inlet Shutoff Valve Type | No Shutoff Valve |
| Lead Free | No |
| Max. Temp. | 140°F |
| Maximum Working Pressure | 175 psi |
| Meter Type | GPM |
| Minimum Temp. | 32°F |
| Outlet Connection Size | 10" |
| Outlet Connection Thread Type | Flanged Joint |
| Outlet Shutoff Valve Type | No Shutoff Valve |
| Polymer Coating | Yes |
| Pressure Operation | Continuous |
| Protection Type | Backpressure, Back Siphonage |
| Series | 876V Series |
| Strainer | No |
Product Variants
| Model | Meter Type | Body Material | Body Finish | Bypass Size | Body Pattern | Strainer | Max. Working Pressure | Min. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

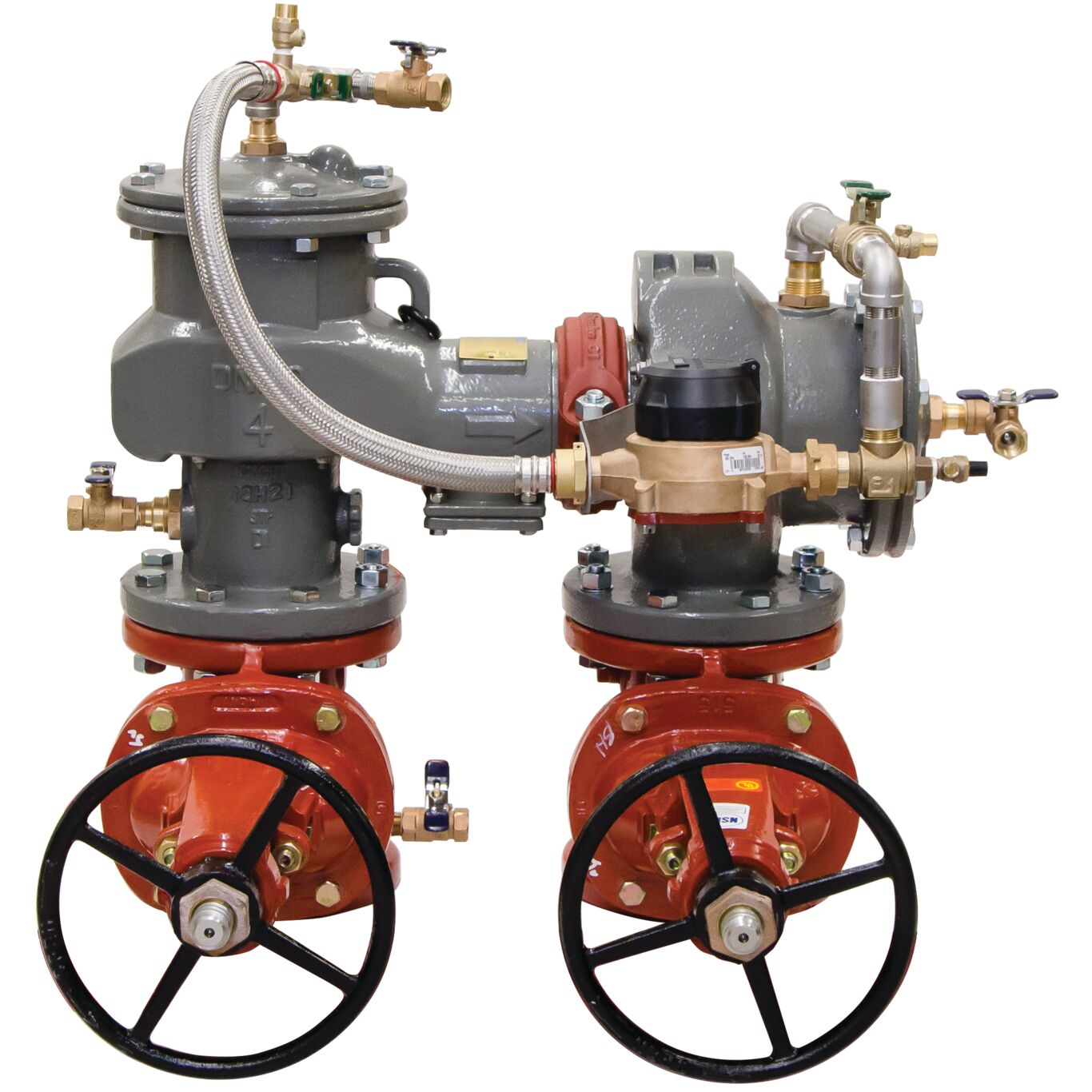

| 876VDCDA-OSY-GPM 10 | GPM | Ductile Iron | Epoxy Coated | 3/4" | N Pattern | No | - | - | €26,019.89 | RFQ
|

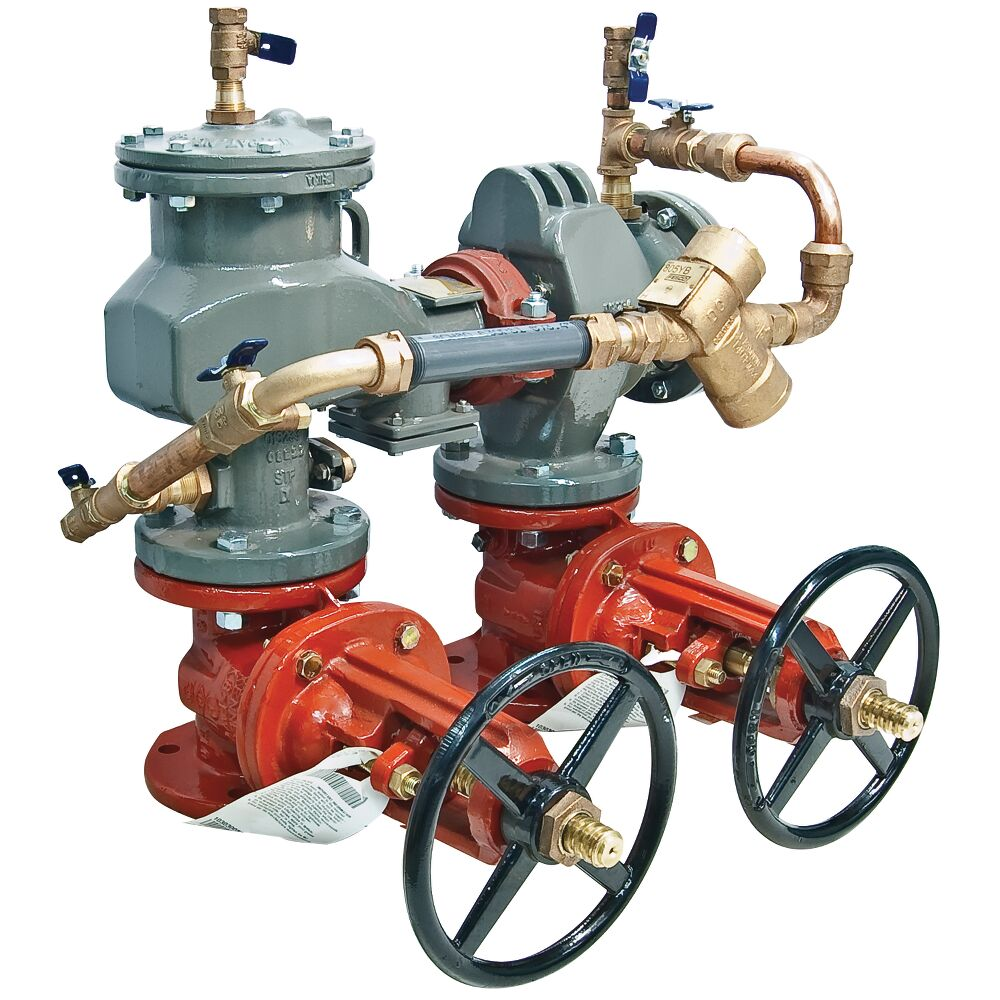

| 876DA-OSY-N/V-GAL 10 | GPM | Ductile Iron | Epoxy Coated | 3/4" | - | No | 175 psi | 32°F | €26,019.89 | RFQ
|
| 876DA-OSY-N/V-CFM 10 | - | Ductile Iron | Epoxy Coated | 3/4" | N Pattern | - | - | - | €26,019.89 | RFQ
|
| 876VDCDA-OSY-CFM 10 | CFM | Ductile Iron | Epoxy Coated | 3/4" | N Pattern | No | - | - | €26,019.89 | RFQ
|
| D876V-DCDA-OSY-LM 10 | No Meter | Ductile Iron | Epoxy Coated | 3/4" | N Pattern | No | - | - | €25,988.43 | RFQ
|
