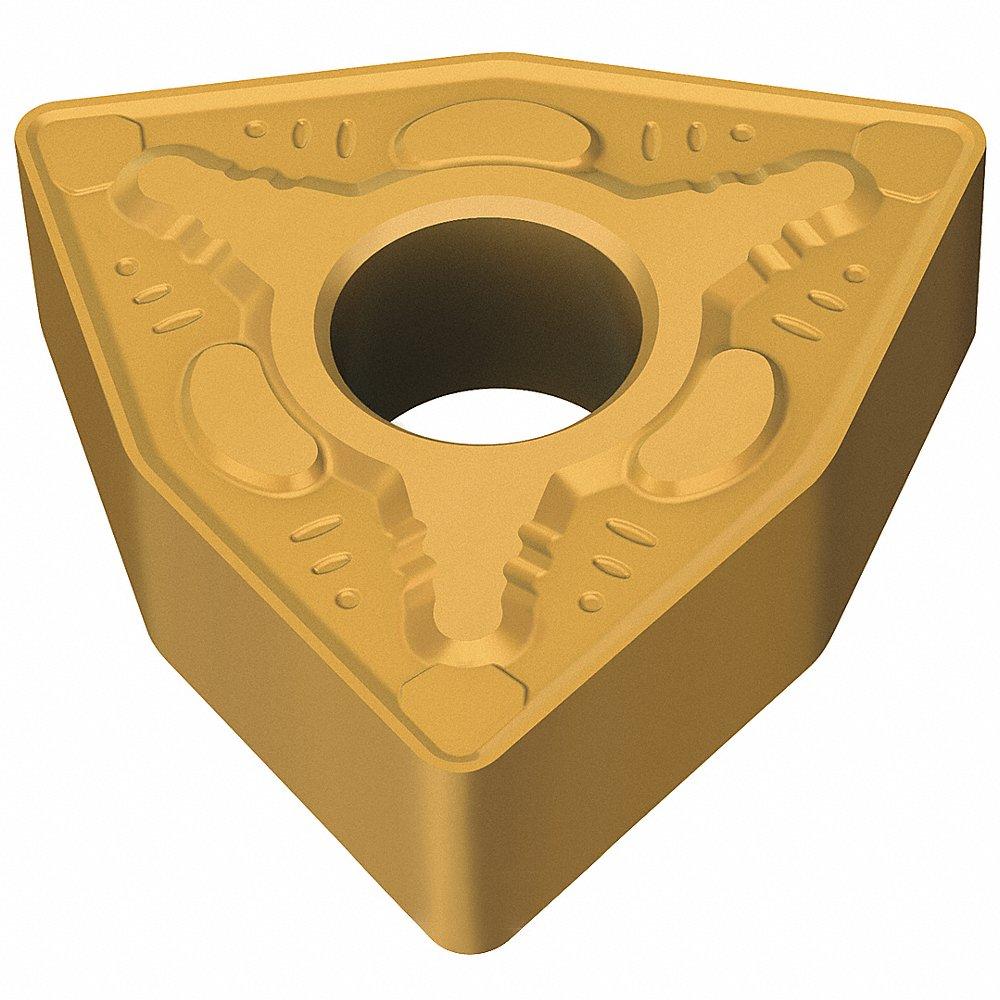

WALTER TOOLS WNMG080408-RV5 WPV10 Turning Insert, 1/2 Inch Inscribed Circle, Neutral, 4.76 mm Thick, Rv5 Chip-Breaker
Get it by Monday, Dec 22
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | WNMG432-RV5 WPV10 |
| Chip-breaker | Yes |
| Chip-breaker Code | RV5 |
| Clearance Angle | 0° |
| Coating Process | CVD |
| Corner Radius | 0.8 mm |
| Cutting Application | Turning |
| Cutting Depth | 1 mm to 5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 8.7 mm |
| Finish - Machining | Ticn+Al2O3+Tin |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | WNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Style | WNMG |
| Iso Number | WNMG080408-RV5 WPV10 |
| Manufacturer Grade | Wpv10 |
| Material | Carbide |
| Material - Machining | Carbide |
| Number Of Cutting Edges | 6 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Rake | Negative |
| Shape | Trigon |
| System Of Measurement | Metric |
| Thickness | 4.76 mm |
| Through Hole Inside Dia. | 5.16 mm |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Clearance Angle | Corner Radius | Cutting Direction | Insert Code | Chip-breaker Code | Inscribed Circle | Thickness | Insert Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| WCMW040204 WCB80 | 7° | 1/64" | Neutral | WCMW1 | A27 | - | - | - | €152.09 | |
| WCMW030202 WCB80 | 7° | 0.008" | Neutral | WCMW.5 | A27 | - | - | - | €141.17 | |
| WCMW050304 WCB80 | 7° | 1/64" | Neutral | WCMW1 | A27 | - | - | - | €140.19 | |
| WCMW020102 WCB80 | 7° | 0.008" | Neutral | WCMW.5 | A27 | - | - | - | €140.19 | |
| WCMW030204 WCB80 | 7° | 1/64" | Neutral | WCMW1 | A27 | - | - | - | €140.19 | |
| WCGT050304-X15 WTP35 | 7° | 1/64" | Neutral | WCGT1 | X15 | - | - | - | €45.64 | |
| WCGT020102-X15 WXM15 | 7° | 0.008" | Neutral | WCGT.5 | X15 | - | - | - | €42.28 |
