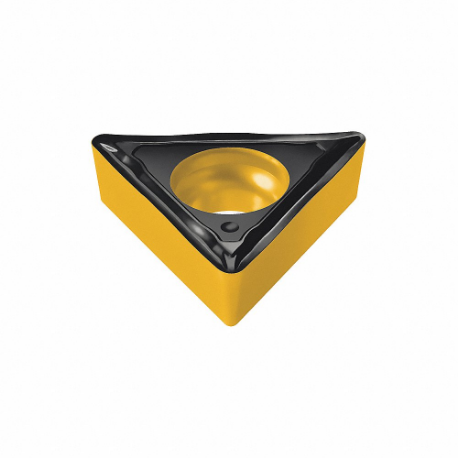

WALTER TOOLS TCMT16T304-PF4 WPP01 Triangle Turning Insert, 3/8 Inch Inscribed Circle, Neutral, Pf4 Chip-Breaker
Get it by Friday, Aug 21
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | TCMT3(2.5)1-PF4 WPP01 |
| Chip Breaker | Yes |
| Chip-breaker Code | PF4 |
| Clearance Angle | 7° |
| Coating Process | CVD |
| Corner Radius | 0.4 mm |
| Cutting Application | Turning |
| Cutting Depth | 0.1 mm to 1.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 0.65" |
| Cutting Speed | 850 SFPM to 1270 SFPM |
| Dia. Of Inscribed Circle | 3/8" |
| Feed Rate | 0.002" to 0.006" |
| Finish-machining | Ticn+Al2O3+Tin |
| Included Angle | 60° |
| Inscribed Circle | 3/8" |
| Insert Code | TCMT32.51 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Thickness | 0.156" |
| Iso Number | TCMT16T304-PF4 WPP01 |
| Major Clearance Angle | 7° |
| Manufacturer Grade | Wpp01 |
| Material | Carbide |
| Material-machining | Carbide |
| No. Of Cutting Edges | 3 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Radius | 0.016" |
| Rake | Positive |
| Secondary Material Application | Cast Iron |
| Secondary Material Application Iso Code | K |
| Shape | Triangle |
| System Of Measurement | Metric |
| Thickness | 3.97 mm |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Cutting Depth | Primary Material Application Iso Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WCGT020104-FN2 WNN10 | 0.106" | - | - | - | - | - | - | - | €31.68 | |
|
WCGT020102-FN2 WNN10 | 0.106" | - | - | - | - | - | - | - | €32.51 | |
 |
WNMG080412-MU5 WMP20S | 0.342" | - | - | - | - | - | - | - | €34.68 | |
 |
WNGA080408TM-3 WBH10 | 0.342" | - | - | - | - | - | - | - | €248.20 | |
 |
WNMG080404-MS3 WSM10S | 0.342" | - | - | - | - | - | - | - | €34.06 | |
 |
WNMG080408-NRS WSM01 | 0.342" | - | - | - | - | - | - | - | €34.88 | |
|
WNMG080412-MU5 WPP10S | 0.342" | - | - | - | - | - | - | - | - | RFQ
|
