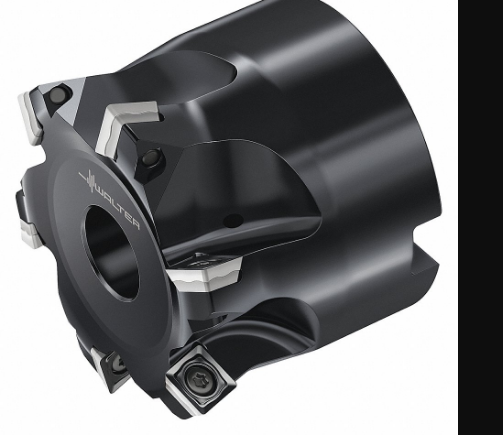

WALTER TOOLS M4002-080-B27-08-02 7023268 Indexable Face Mill, 3.1500 Inch Max. Cutting Dia, 1.0630 Inch Arbor Dia
Item: CU8JMCModel: M4002-080-B27-08-02Cross Ref: 56MW02 / 7023268
7 In Stock
Ships within 2 days via
10.00% off
€1,257.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Face Mill |
| Ansi Code | M4002-080-B27-08-02 |
| Arbor Dia. | 1.063" |
| Coolant Fed | Coolant Through |
| Cutting Application | Face Milling, High Feed Milling |
| Cutting Depth | 0.079" |
| Hub Outside Dia. | 2.949" |
| Iso Number | M4002-080-B27-08-02 |
| Max. Cutting Dia. | 3.15" |
| Max. Speed | 14100 RPM |
| Min. Cutting Dia. | 2.252" |
| Number Of Inserts | 8 |
| Overall Length | 1.969" |
| Side Cutting Edge Angle | 0° |
| Standards | Iso 6462-A (Hexagon Socket Head Cap Screw) |
Shipping Info:
| Ship weight (kg) | 1.28 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Coolant Fed | Overall Length | Arbor Dia. | Side Cutting Edge Angle | Max. Cutting Dia. | Insert Shape | Depth Of Cut | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F5141.B40.160.Z13.12 | Coolant Through | 63 mm | 40 mm | 90° | 160 mm | - | 0.472" | - | €2,691.44 | |
 |
F5141.UB38.152.Z13.12 | Coolant Through | 2.48" | 1 1/2" | 90° | 6" | - | 0.472" | - | €2,691.44 | |
 |
M5130-050-B22-06-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | €1,014.50 | |
 |
M5130-063-B22-11-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | €1,375.06 | |
 |
M2136-063-B22-08-06 | Non Coolant Through | 1.969" | 0.866" | 90° | - | - | - | 0.256" | €1,865.79 | |
|
M5130-054-B22-03-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | €881.62 | |
|
M5130-063-B22-14-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | €1,452.26 |
