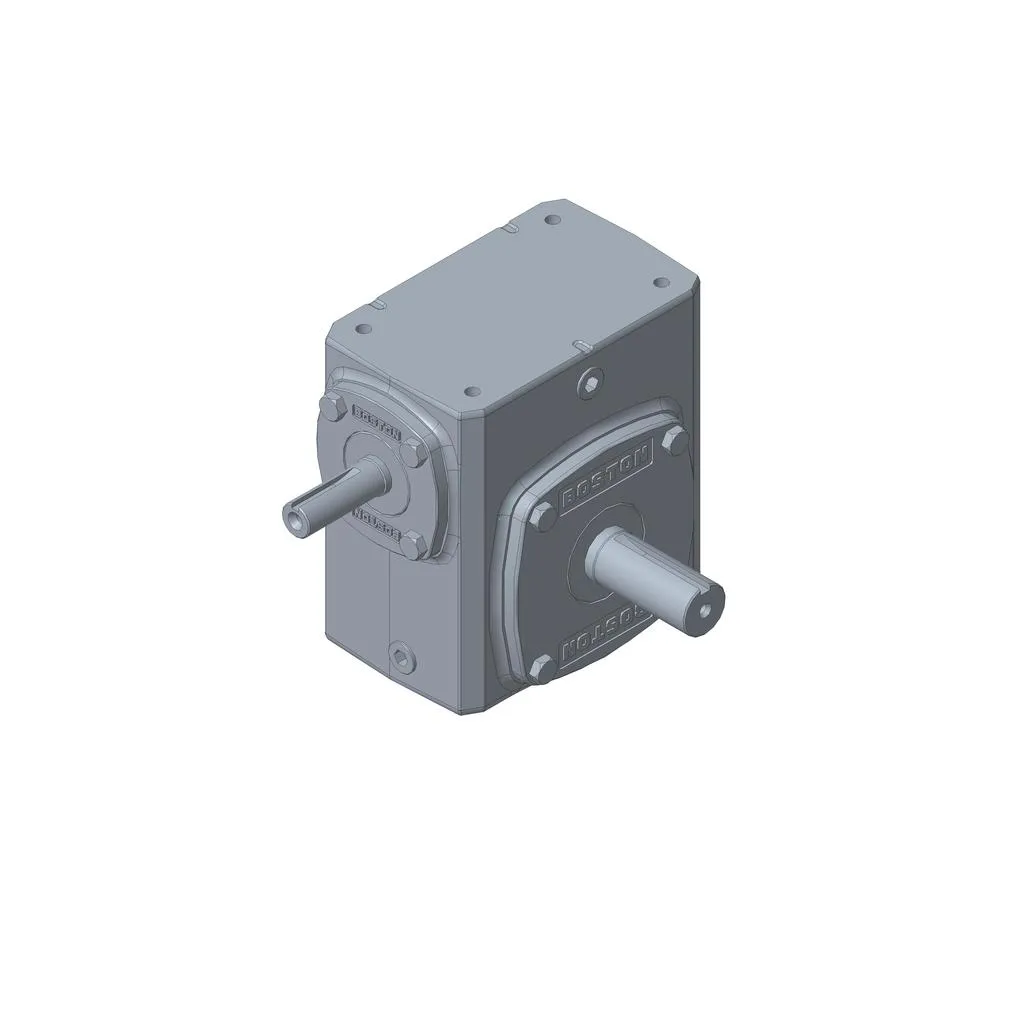

BOSTON GEAR 724-40-J Reducer, Single Reduction, 40:1 Ratio, No Base, J Assembly
2.38"
40:1
J
€2,097.49 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Center Distance | 2.38" |
| Color | Gray |
| Efficiency | 0.77% |
| Fan Cooled | No |
| Finish | Standard Paint |
| Gear Ratio | 40:1 |
| Height | 6.94" |
| Input Dia. | 0.7495" |
| Input Rpm | 43.8 RPM |
| Input Style | No Flange |
| Length | 8.94" |
| Lubrication | Klubersynth UH1 6-460 |
| Material | Cast Iron |
| Max. Input Hp | 1 2/25 hp |
| Motor Hp | 1 hp |
| Mounting Type | No Base |
| Output Dia. | 1 1/8" |
| Output Hp | 21/25 hp |
| Output Shaft Dia. | 1 1/8" |
| Output Type | Solid Projecting Shaft |
| Pre-lubricated | No |
| Product Datasheet | boston-gear-710-10-g.pdf |
| Product Series | 700 Series |
| Reduction Type | Single Reduction Right Angle |
| Torque Rating | 1206 lbs.-in. |
| Type | Single Reduction |
| Width | 7.81" |
Documentation:
Product Variants
| Model | Max. Input Hp | Gear Ratio | Worm Center Distance | Overhung Load | Base To Shaft Center | Finish | Output Shaft Dia. | Input Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 710-50-G | 4/25 hp | 501 | 1" | 150 lbs. | 1.31" | Epoxy Paint | 1/2" | 1750 RPM | €1,018.19 | |
| 710-40-G | 4/25 hp | 401 | 1" | 150 lbs. | 1.31" | Epoxy Paint | 1/2" | 1750 RPM | €1,073.04 | |
| 710-20-G | 1/4 hp | 201 | 1" | 150 lbs. | - | Epoxy Paint | 1/2" | 1750 RPM | €955.36 | |
| 713-40-G | 4/25 hp | 401 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 1750 RPM | €1,046.75 | |
| 713-25-G | 3/10 hp | 251 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 1750 RPM | €1,147.93 | |
| 713-20-G | 3/10 hp | 20:1 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 87.5 RPM | €1,070.75 | |
| 713-50-G | 4/25 hp | 50:1 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 35 RPM | €983.80 |
