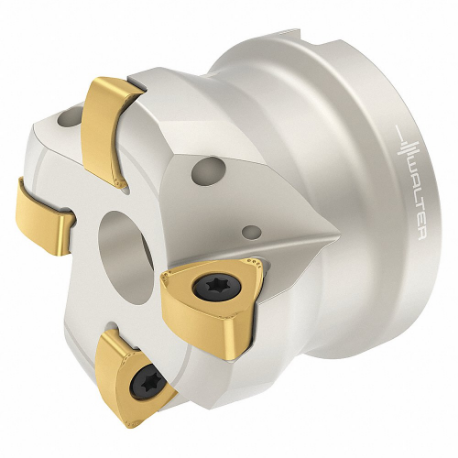

WALTER TOOLS F4030.B22.063.Z04.02 Indexable Face Mill, 2.4800 Inch Max. Cutting Dia, 0.8660 Inch Arbor Dia
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Indexable Face Mill |
| Ansi Code | F4030.B22.063.Z04.02 |
| Arbor Dia. | 0.866" |
| Connection Dia. | 0.866" |
| Coolant Fed | Coolant Through |
| Cutting Application | Face Milling, High Feed Milling |
| Cutting Depth | 0.079" |
| Cutting Edge Dia. | 1.772" |
| Cutting Edge Length | 0.079" |
| Functional Length | 1.969" |
| Hub Outside Dia. | 2.362" |
| Iso Number | F4030.B22.063.Z04.02 |
| Max. Cutting Dia. | 2 12/25" |
| Max. Radial Depth Of Cut | 0.394" |
| Max. Speed | 18000 RPM |
| Min. Cutting Dia. | 1.772" |
| No. Of Indexable Inserts | 4 EA |
| No. Of Inserts | 4 |
| No. Of Teeth | 4 |
| Overall Length | 1.969" |
| Side Cutting Edge Angle | 0° |
Shipping Info:
| Ship weight (kg) | 0.69 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cutting Depth | Coolant Fed | Ansi Code | Arbor Dia. | Iso Number | Connection Dia. | Cutting Edge Length | No. Of Teeth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F5141.B40.160.Z13.12 | - | Coolant Through | F5141.B40.160.Z13.12 | 40 mm | F5141.B40.160.Z13.12 | 1.575" | 0.472" | 13 | €2,691.44 | |
 |
F5141.UB38.152.Z13.12 | - | Coolant Through | F5141.UB38.152.Z13.12 | 1 1/2" | F5141.UB38.152.Z13.12 | 1 1/2" | 0.472" | 13 | €2,691.44 | |
 |
M5130-050-B22-06-15 | 0.591" | Coolant Through | - | 0.866" | M5130-050-B22-06-15 | 0.866" | 0.591" | 6 | €1,014.50 | |
 |
M5130-063-B22-11-05 | 0.197" | Coolant Through | - | 0.866" | M5130-063-B22-11-05 | 0.866" | 0.197" | 11 | €1,375.06 | |
 |
M2136-063-B22-08-06 | 0.256" | Non Coolant Through | M2136-063-B22-08-06 | 0.866" | M2136-063-B22-08-06 | 0.866" | 0.256" | 8 | €1,865.79 | |
|
M5130-054-B22-03-15 | 0.591" | Coolant Through | M5130-054-B22-03-15 | 0.866" | M5130-054-B22-03-15 | 0.866" | 0.591" | 3 | €881.62 | |
|
M5130-063-B22-14-05 | 0.197" | Coolant Through | M5130-063-B22-14-05 | 0.866" | M5130-063-B22-14-05 | 0.866" | 0.197" | 14 | €1,452.26 |
