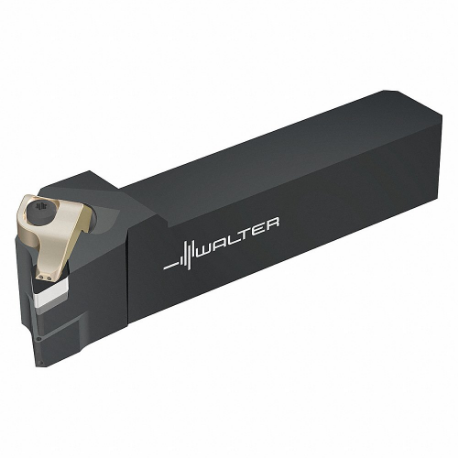

WALTER TOOLS DDJNR163D-P 6824227 Indexable Turning and Profiling Tool Holder, DDJN Toolholder, 55 Deg. Diamond
Item: CU9KARModel: DDJNR163D-PCross Ref: 56PL70 / 6824227
7 In Stock
Ships within 2 days via
5.00% off
€546.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tool Holder |
| Ansi Code | DDJNR163D-P |
| Approach Angle | 93° |
| Coolant Fed | Coolant Through |
| Coolant Pressure | 2175.566 psi |
| Cutting Direction | Right Hand |
| Functional Width | 1 1/4" |
| Hand | R |
| Inclination Angle | -7° |
| Insert Angle | 55° |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Top And Hole Clamping |
| Insert Inscribed Circle | 3/8" |
| Insert Seat Size | 11 |
| Insert Shape | Diamond |
| Lead Angle | 93° |
| Length | 6" |
| Orthogonal Rake Angle | -6° |
| Overall Length | 6" |
| Projection Length | 1.909" |
| Shank Height | 1" |
| Shank Width | 1" |
| Toolholder Style | DDJN |
| Width | 0.118" |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 2.54 |
| Country of Origin | SE |
Product Variants
| Product | Model | Shank Height | Shank Width | Projection Length | Insert Seat Size | Functional Width | Insert Cutting Edge Length | Insert Holding Type | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRDCN3225P09-A | 32 mm | 25 mm | 1.22" | 9 | 0.677" | 9 mm | Top Clamp | Neutral | €475.31 | |
|
CRDCN3225P12-A | 32 mm | 25 mm | 1.575" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €475.31 | |
 |
CRDNN2525M12-ID | 25 mm | 25 mm | 1.26" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €372.44 | |
|
CRDNN3225P12-ID | 32 mm | 25 mm | 1.26" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €372.44 | |
 |
CRSNL3232P15-ID | 32 mm | 32 mm | 1.181" | 15 | 1.575" | 12 mm | Top Clamp | Left Hand | €460.05 | |
 |
CRSNL2525X12-P | 25 mm | 25 mm | 1.516" | 12 | 1.26" | 12 mm | Top Clamp | Left Hand | €573.15 | |
|
CRSNL2525M12-ID | 25 mm | 25 mm | 1.102" | 12 | 1.26" | 12 mm | Top Clamp | Left Hand | €372.44 |
