WALTER TOOLS B3212.DF.17,0.Z01.34R 5003358 Indexable Drill Bit For General Drilling
Item: CU8HVEModel: B3212.DF.17,0.Z01.34RCross Ref: 56NY16 / 5003358
7 In Stock
1.339"
Ships within 2 days via
5.00% off
€849.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Drill |
| Ansi Code | B3212.DF.17, 0.Z01.34R |
| Ansi Number | B3212.DF.17, 0.Z01.34R |
| Clamping Length | 1.89" |
| Connection Dia. | 0.63" |
| Cutting Direction | Right Hand |
| Cutting Edge Dia. | 0.669" |
| Cutting Edge Length | 1.339" |
| Depth X Dia. Ratio | 2xd |
| Flute Length | 46 mm |
| Iso Number | B3212.DF.17,0.Z01.34R |
| Max. Drilling Depth | 34 mm |
| Max. Projection Length | 1.929" |
| No. Of Indexable Inserts | 1 |
| Overall Length | 98 mm |
| Shank Dia. | 16 mm |
| Shank Length | 48 mm |
| Shank Type | Combi Shank |
| Shank Type-machining | Combi Shank |
| Toolholder Style | B3212 |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Cutting Edge Length | Shank Dia. | Toolholder Style | Ansi Number | Connection Dia. | Cutting Edge Dia. | Max. Projection Length | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D3120-02-16.00F25-P21 | 1.291" | 25 mm | D3120 | D3120-02-16.00F25-P21 | 0.984" | 0.63" | 2.244" | 56 mm | €848.51 | |
 |

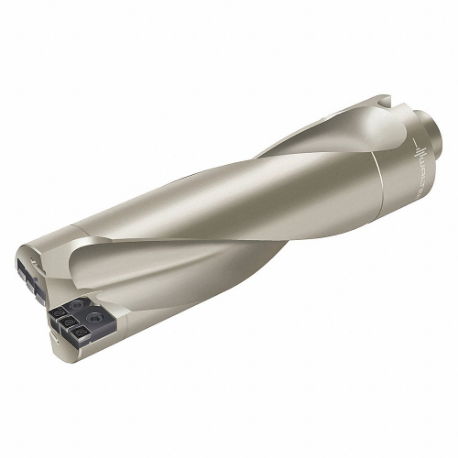

B4213.N8.065.Z1.195R-5 | 7.677" | 80 mm | B4213 | B4213.N8.065.Z1.195R-5 | 3.15" | 2.559" | 9.646" | - | - | RFQ
|
 |
D3120-04-36.00F32-P24 | 5.713" | 32 mm | D3120 | D3120-04-36.00F32-P24 | 1.26" | 1.417" | 6.929" | 60 mm | €1,293.10 | |
|
D3120-02-24.00F25-P22 | 1.925" | 25 mm | D3120 | D3120-02-24.00F25-P22 | 0.984" | 0.945" | 2.874" | 56 mm | €938.02 | |
|
D3120-04-26.00F32-P23 | 4.138" | 32 mm | D3120 | D3120-04-26.00F32-P23 | 1.26" | 1.024" | 5.354" | 60 mm | €1,138.10 | |
 |
B3212.DF.13,0.Z01.26R | 1.024" | 16 mm | B3212 | B3212.DF.13, 0.Z01.26R | 0.63" | 0.512" | 1.535" | 48 mm | €848.51 | |
 |
D4120-04-17.00F25-P42 | 2.689" | 25 mm | D4120 | D4120-04-17.00F25-P42 | 0.984" | 0.669" | 3.661" | 56 mm | €1,053.72 |
