WALTER TOOLS Indexable Drill Bits for General Drilling
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Ansi Number | Iso Number | Shank Dia. | Toolholder Style | Overall Length | Flute Length | Shank Length | Depth X Dia. Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | G2661.16N-26-P | - | - | - | - | 3.74" | - | - | - | €741.62 | |
| B | D3120-02-32.00F32-P24 | - | D3120-02-32.00F32-P24 | 32 mm | D3120 | 156 mm | 88 mm | 60 mm | 2xd | €1,027.77 | |
| C | D4120-04-20.00F25-P42 | - | D4120-04-20.00F25-P42 | 25 mm | D4120 | 161 mm | 99.8 mm | 56 mm | 4xd | €1,053.72 | |
| D | D3120-04-31.00F32-P24 | - | D3120-04-31.00F32-P24 | 32 mm | D3120 | 216 mm | 148 mm | 60 mm | 4xd | €1,204.08 | |
| E | B3212.DF.10,0.Z01.20R | B3212.DF.10, 0.Z01.20R | B3212.DF.10,0.Z01.20R | 16 mm | B3212 | 80 mm | 30 mm | 48 mm | 2xd | €858.95 | |
| E | B3212.DF.10,2.Z01.20R | B3212.DF.10, 2.Z01.20R | B3212.DF.10,2.Z01.20R | 16 mm | B3212 | - | 30 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.10,5.Z01.21R | B3212.DF.10, 5.Z01.21R | B3212.DF.10,5.Z01.21R | 16 mm | B3212 | 81 mm | 31 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.11,0.Z01.22R | B3212.DF.11, 0.Z01.22R | B3212.DF.11,0.Z01.22R | 16 mm | B3212 | 83 mm | 33 mm | 48 mm | 2xd | €858.95 | |
| E | B3212.DF.11,5.Z01.23R | B3212.DF.11, 5.Z01.23R | B3212.DF.11,5.Z01.23R | 16 mm | B3212 | - | 31 mm | 48 mm | 2xd | €858.95 | |
| E | B3212.DF.11,7.Z01.23R | B3212.DF.11, 7.Z01.23R | B3212.DF.11,7.Z01.23R | 16 mm | B3212 | - | 31 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.12,0.Z01.24R | B3212.DF.12, 0.Z01.24R | B3212.DF.12,0.Z01.24R | 16 mm | B3212 | 85 mm | 32 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.12,5.Z01.25R | B3212.DF.12, 5.Z01.25R | B3212.DF.12,5.Z01.25R | 16 mm | B3212 | 87 mm | 34 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.13,0.Z01.26R | B3212.DF.13, 0.Z01.26R | B3212.DF.13,0.Z01.26R | 16 mm | B3212 | 88 mm | 35 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.13,5.Z01.27R | B3212.DF.13, 5.Z01.27R | B3212.DF.13,5.Z01.27R | 16 mm | B3212 | 89 mm | 38 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.13,7.Z01.27R | B3212.DF.13, 7.Z01.27R | B3212.DF.13,7.Z01.27R | 16 mm | B3212 | 90 mm | 38 mm | 48 mm | 2xd | €806.94 | |
| E | B3212.DF.14,0.Z01.28R | B3212.DF.14, 0.Z01.28R | B3212.DF.14,0.Z01.28R | 16 mm | B3212 | 91 mm | 38 mm | 48 mm | 2xd | €848.51 | |
| E | B3212.DF.14,5.Z01.29R | B3212.DF.14, 5.Z01.29R | B3212.DF.14,5.Z01.29R | 16 mm | B3212 | 92 mm | 41 mm | 48 mm | 2xd | €848.51 | |
| F | B3212.DF.15,0.Z01.30R | B3212.DF.15, 0.Z01.30R | B3212.DF.15,0.Z01.30R | 16 mm | B3212 | 93 mm | 41 mm | 48 mm | 2xd | €848.51 | |
| F | B3212.DF.15,5.Z01.31R | B3212.DF.15, 5.Z01.31R | B3212.DF.15,5.Z01.31R | 16 mm | B3212 | 94 mm | 42 mm | 48 mm | 2xd | €848.51 | |
| F | B3212.DF.15,7.Z01.31R | B3212.DF.15, 7.Z01.31R | B3212.DF.15,7.Z01.31R | 16 mm | B3212 | 95 mm | 43 mm | 48 mm | 2xd | €848.51 | |
| F | B3212.DF.16,0.Z01.32R | B3212.DF.16, 0.Z01.32R | B3212.DF.16,0.Z01.32R | 16 mm | B3212 | 96 mm | 44 mm | 48 mm | 2xd | €848.51 | |
| F | B3212.DF.16,5.Z01.33R | B3212.DF.16, 5.Z01.33R | B3212.DF.16,5.Z01.33R | 16 mm | B3212 | 97 mm | 45 mm | 48 mm | 2xd | €894.08 | |
| F | B3212.DF.17,0.Z01.34R | B3212.DF.17, 0.Z01.34R | B3212.DF.17,0.Z01.34R | 16 mm | B3212 | 98 mm | 46 mm | 48 mm | 2xd | €894.08 | |
| F | B3212.DF.17,5.Z01.35R | B3212.DF.17, 5.Z01.35R | B3212.DF.17,5.Z01.35R | 16 mm | B3212 | 100 mm | 48 mm | 48 mm | 2xd | €905.06 | |
| F | B3212.DF.18,0.Z01.36R | B3212.DF.18, 0.Z01.36R | B3212.DF.18,0.Z01.36R | 16 mm | B3212 | 101 mm | 49 mm | 48 mm | 2xd | €894.08 | |

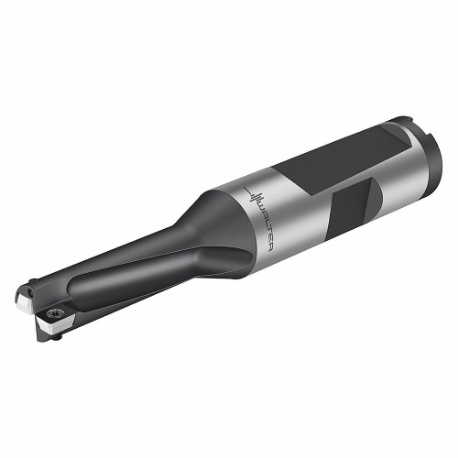

| G | B3213.DF.10,0.Z01.30R | B3213.DF.10, 0.Z01.30R | B3213.DF.10,0.Z01.30R | 16 mm | B3213 | 90 mm | 39 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.10,2.Z01.30R | B3213.DF.10, 2.Z01.30R | B3213.DF.10,2.Z01.30R | 16 mm | B3213 | 90 mm | 39 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.10,5.Z01.31R | B3213.DF.10, 5.Z01.31R | B3213.DF.10,5.Z01.31R | 16 mm | B3213 | 92 mm | 41 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.11,0.Z01.33R | B3213.DF.11, 0.Z01.33R | B3213.DF.11,0.Z01.33R | 16 mm | B3213 | 94 mm | 44 mm | 48 mm | 3xd | €905.06 | |
| G | B3213.DF.11,5.Z01.34R | B3213.DF.11, 5.Z01.34R | B3213.DF.11,5.Z01.34R | 16 mm | B3213 | 96 mm | 45 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.11,7.Z01.35R | B3213.DF.11, 7.Z01.35R | B3213.DF.11,7.Z01.35R | 16 mm | B3213 | 97 mm | 46 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.12,0.Z01.36R | B3213.DF.12, 0.Z01.36R | B3213.DF.12,0.Z01.36R | 16 mm | B3213 | 97 mm | 46 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.12,5.Z01.37R | B3213.DF.12, 5.Z01.37R | B3213.DF.12,5.Z01.37R | 16 mm | B3213 | 99 mm | 47 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.13,0.Z01.39R | B3213.DF.13, 0.Z01.39R | B3213.DF.13,0.Z01.39R | 16 mm | B3213 | 101 mm | 49 mm | 48 mm | 3xd | €894.08 | |
| G | B3213.DF.13,5.Z01.40R | B3213.DF.13, 5.Z01.40R | - | 16 mm | B3213 | 103 mm | 51 mm | 48 mm | 3xd | €894.08 | |

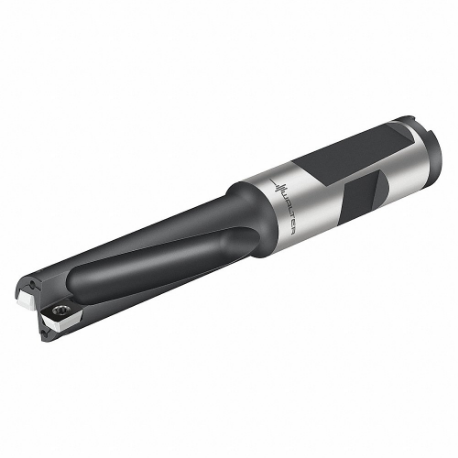

| H | B3213.DF.14,0.Z01.42R | B3213.DF.14, 0.Z01.42R | B3213.DF.14,0.Z01.42R | 16 mm | B3213 | 105 mm | 53 mm | 48 mm | 3xd | €894.08 | |
| H | B3213.DF.14,5.Z01.43R | B3213.DF.14, 5.Z01.43R | B3213.DF.14,5.Z01.43R | 16 mm | B3213 | 106 mm | 54 mm | 48 mm | 3xd | €894.08 | |
| H | B3213.DF.15,0.Z01.45R | B3213.DF.15, 0.Z01.45R | B3213.DF.15,0.Z01.45R | 16 mm | B3213 | 108 mm | 56 mm | 48 mm | 3xd | €905.06 | |
| H | B3213.DF.15,5.Z01.46R | B3213.DF.15, 5.Z01.46R | B3213.DF.15,5.Z01.46R | 16 mm | B3213 | 110 mm | 58 mm | 48 mm | 3xd | €894.08 | |
| H | B3213.DF.15,7.Z01.47R | B3213.DF.15, 7.Z01.47R | B3213.DF.15,7.Z01.47R | 16 mm | B3213 | 111 mm | 59 mm | 48 mm | 3xd | €894.08 | |
| H | B3213.DF.16,0.Z01.48R | B3213.DF.16, 0.Z01.48R | B3213.DF.16,0.Z01.48R | 16 mm | B3213 | 112 mm | 60 mm | 48 mm | 3xd | €905.06 | |
| H | B3213.DF.16,5.Z01.49R | B3213.DF.16, 5.Z01.49R | - | 16 mm | B3213 | 114 mm | 62 mm | 48 mm | 3xd | €940.35 | |
| H | B3213.DF.17,0.Z01.51R | B3213.DF.17, 0.Z01.51R | B3213.DF.17,0.Z01.51R | 16 mm | B3213 | 115 mm | 63 mm | 48 mm | 3xd | €940.35 | |
| H | B3213.DF.17,5.Z01.52R | B3213.DF.17, 5.Z01.52R | B3213.DF.17,5.Z01.52R | 16 mm | B3213 | 117 mm | - | 48 mm | 3xd | €952.42 | |
| H | B3213.DF.18,0.Z01.54R | B3213.DF.18, 0.Z01.54R | B3213.DF.18,0.Z01.54R | 16 mm | B3213 | 119 mm | 67 mm | 48 mm | 3xd | €940.35 | |

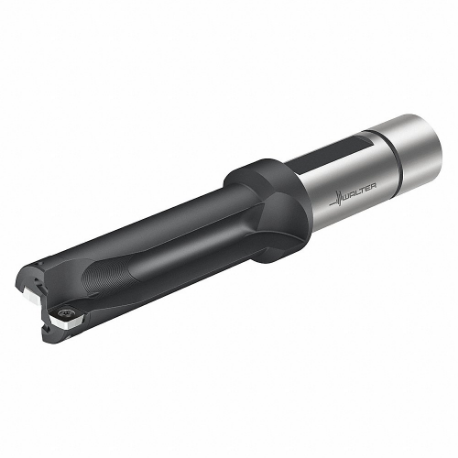

| I | B3213.U3F.0099.Z01.30R | B3213.U3F.0099.Z01.30R | B3213.U3F.0099.Z01.30R | 3/4" | B3213 | 3.523" | 1.535" | 1.969" | 3xd | €861.84 | |
| I | B3213.U3F.0103.Z01.31R | B3213.U3F.0103.Z01.31R | B3213.U3F.0103.Z01.31R | 3/4" | B3213 | 3.582" | 1.535" | 1.969" | 3xd | €861.84 | |
| I | B3213.U3F.0107.Z01.32R | B3213.U3F.0107.Z01.32R | - | 3/4" | B3213 | 3.642" | 1.614" | 1.969" | 3xd | €894.08 | |
| I | B3213.U3F.0111.Z01.33R | B3213.U3F.0111.Z01.33R | B3213.U3F.0111.Z01.33R | 3/4" | B3213 | 3.706" | 1.772" | 1.969" | 3xd | €863.39 | |
| I | B3213.U3F.0115.Z01.35R | B3213.U3F.0115.Z01.35R | B3213.U3F.0115.Z01.35R | 3/4" | B3213 | 3.77" | 1.772" | 1.969" | 3xd | €863.39 | |
| I | B3213.U3F.0119.Z01.36R | B3213.U3F.0119.Z01.36R | B3213.U3F.0119.Z01.36R | 3/4" | B3213 | 3.834" | 1.811" | 1.969" | 3xd | €861.84 | |
| I | B3213.U3F.0123.Z01.37R | B3213.U3F.0123.Z01.37R | B3213.U3F.0123.Z01.37R | 3/4" | B3213 | 3.894" | 1.811" | 1.969" | 3xd | €861.84 | |
| I | B3213.U3F.0127.Z01.38R | B3213.U3F.0127.Z01.38R | B3213.U3F.0127.Z01.38R | 3/4" | B3213 | 3.958" | 1.85" | 1.969" | 3xd | €863.39 | |
| I | B3213.U3F.0131.Z01.39R | B3213.U3F.0131.Z01.39R | B3213.U3F.0131.Z01.39R | 3/4" | B3213 | 4.019" | 1.929" | 1.969" | 3xd | €861.84 | |
| I | B3213.U3F.0135.Z01.40R | B3213.U3F.0135.Z01.40R | B3213.U3F.0135.Z01.40R | 3/4" | B3213 | 4.082" | 2.008" | 1.969" | 3xd | €863.39 | |

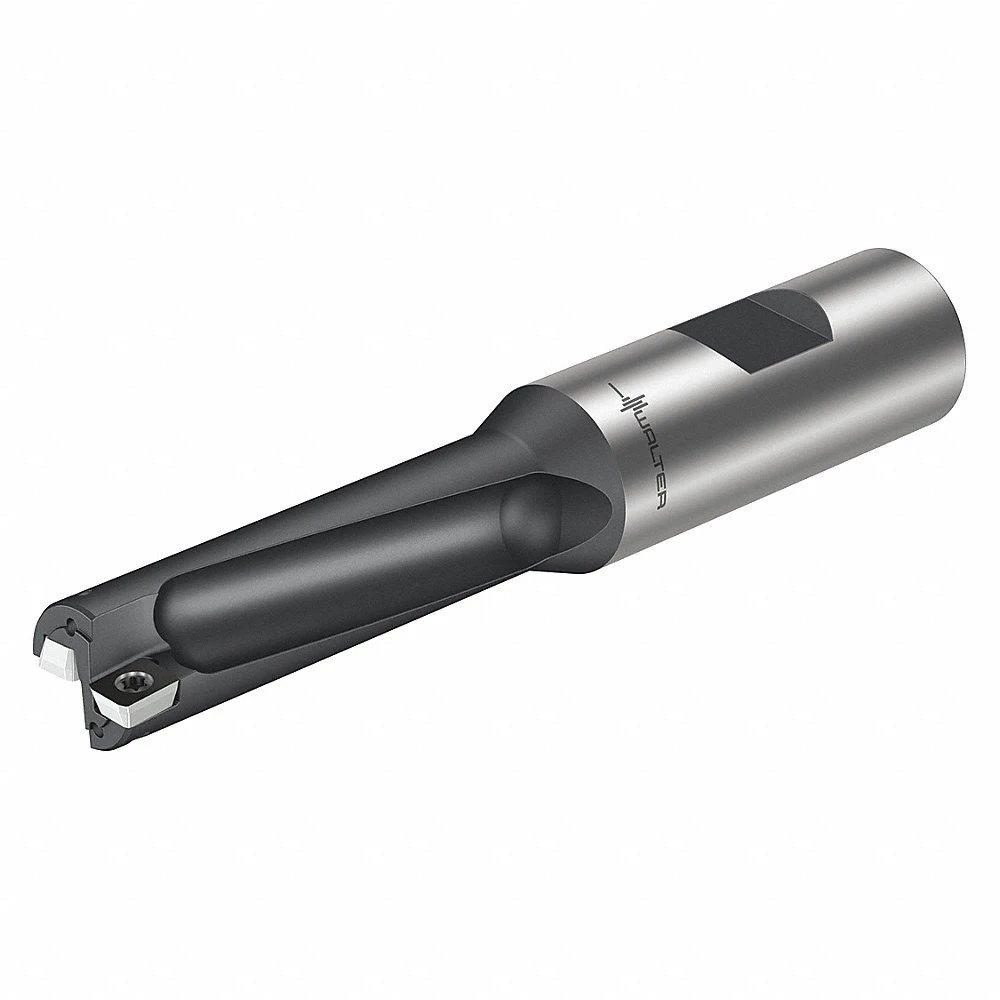

| J | B3213.U3F.0139.Z01.42R | B3213.U3F.0139.Z01.42R | B3213.U3F.0139.Z01.42R | 3/4" | B3213 | 4.158" | 2.087" | 1.969" | 3xd | €872.83 | |
| J | B3213.U3F.0143.Z01.43R | B3213.U3F.0143.Z01.43R | B3213.U3F.0143.Z01.43R | 3/4" | B3213 | 4.217" | 2.087" | 1.969" | 3xd | €863.39 | |
| J | B3213.U3F.0147.Z01.44R | B3213.U3F.0147.Z01.44R | B3213.U3F.0147.Z01.44R | 3/4" | B3213 | 4.281" | 2.165" | 1.969" | 3xd | €861.84 | |
| J | B3213.U3F.0155.Z01.46R | B3213.U3F.0155.Z01.46R | B3213.U3F.0155.Z01.46R | 3/4" | B3213 | 4.406" | 2.283" | 1.969" | 3xd | €863.39 | |
| J | B3213.U3F.0159.Z01.48R | B3213.U3F.0159.Z01.48R | B3213.U3F.0159.Z01.48R | 3/4" | B3213 | 4.47" | 2.323" | 1.969" | 3xd | €846.96 | |
| J | B3213.U3F.0163.Z01.49R | B3213.U3F.0163.Z01.49R | - | 3/4" | B3213 | 4.53" | 2.362" | 1.969" | 3xd | €906.33 |
