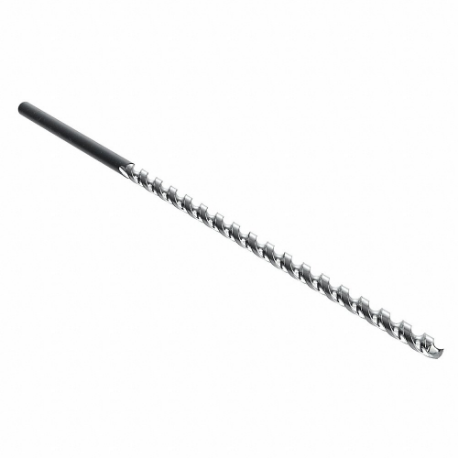

WALTER TOOLS A1822-5.5 Long Drill Bit, 5.50 mm Drill Bit Size, 8 27/32 Inch Flute Length, 5.50 mm Shank Dia | CU8VJX 440M44

WALTER TOOLS A1822-5.5 5062679 Long Drill Bit, 5.50 mm Drill Bit Size, 8 27/32 Inch Flute Length, 5.50 mm Shank Dia

Item: CU8VJXModel: A1822-5.5Cross Ref: 440M44 / 5062679
7 In Stock
Cutting Edge Diameter

Ships within 2 days via

€94.22
5.00% off
€89.51 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Long Drill Bit
Coolant Fed Non Coolant Through
Cutting Direction Right Hand
Cutting Edge Dia. 0.217"
Cutting Edge Length 8.504"
Decimal Equivalent 0.2165
Depth X Dia. Ratio 30xd
Drill Bit Point Angle 130°
Drill Bit Point Type Conventional Point
Drill Bit Size 5.5 mm
Drill Dia. Tolerance H8
Drill Length Class Extra Long
Drill Point Length 1.28 mm
Finish Bright Uncoated
Finish-machining Bright (Uncoated)
Flute Length 8 27/32"
Flute Type Parabolic
Grade General Purpose
Length 12.992"
Material High Speed Steel
Material Grade-machining General Purpose
Material-machining High Speed Steel
Max. Drilling Depth 8 27/32" , 8.844"
No. Of Flutes 2
Overall Length 330 mm
Point Angle 130°
Point Type Conventional Point
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application Iso Code K, N, P
Secondary Material Application Composite, Nickel, Stainless Steel, Titanium
Secondary Material Application Iso Code M, O, S
Shank Dia. 5.5 mm
Shank Length 105 mm
Shank Type Straight
Shank Type-machining Straight
Sheeter Drill No
Size 5.5 mm
System Of Measurement Metric

Shipping Info:

Ship weight (kg) 0.02
Ship height (cm)2.54
Ship length (cm)33
Ship width (cm)2.54
Country of OriginFR

Product Variants

ProductModelFlute LengthShank Dia.Max. Drilling DepthShank LengthDrill Point LengthDrill Bit SizeFinish-machiningCutting Edge LengthPrice
WALTER TOOLS A1522-NO1 Long Drill Bit, #1 Drill Bit Size, 3 37/64 Inch Flute Length, 5.79 mm Shank Dia | CU8UEZ 440J06 A1522-NO13 37/64"5.79 mm3.578"48 mm1.35 mm#1Bright (Uncoated)3.228"€42.37
WALTER TOOLS A1622-NO1 Long Drill Bit, #1 Drill Bit Size, 5 1/2 Inch Flute Length, 5.79 mm Shank Dia | CU8UFA 440L75 A1622-NO15 1/2"5.79 mm5 1/2"65 mm1.35 mm#1Bright (Uncoated)5.157"€70.70
WALTER TOOLS A1522-NO10 Long Drill Bit, #10 Drill Bit Size, 3 27/64 Inch Flute Length, 4.92 mm Shank Dia | CU8UFB 440J07 A1522-NO103 27/64"4.92 mm3.422"45 mm1.15 mm#10Bright (Uncoated)3.11"€29.30
WALTER TOOLS A1622-NO10 Long Drill Bit, #10 Drill Bit Size, 5 5/16 Inch Flute Length, 4.92 mm Shank Dia | CU8UFC 440L76 A1622-NO105 5/16"4.92 mm5.312"60 mm1.15 mm#10Bright (Uncoated)5"€50.53
WALTER TOOLS A1522-NO11 Long Drill Bit, #11 Drill Bit Size, 3 27/64 Inch Flute Length, 4.85 mm Shank Dia | CU8UFD 440J08 A1522-NO113 27/64"4.85 mm3.422"45 mm1.13 mm#11Bright (Uncoated)3.11"€33.33
WALTER TOOLS A1622-NO11 Long Drill Bit, #11 Drill Bit Size, 5 5/16 Inch Flute Length, 4.85 mm Shank Dia | CU8UFE 440L77 A1622-NO115 5/16"4.85 mm5.312"60 mm1.13 mm#11Bright (Uncoated)5"€70.70
WALTER TOOLS A1544-4.8 Long Drill Bit, #12 Drill Bit Size, 3 27/64 Inch Flute Length, 4.80 mm Shank Dia | CU8UFF 440X51 A1544-4.83 27/64"4.8 mm3.422"1 49/64"1.12 mm#12Bright (Uncoated)3.11"€39.40
