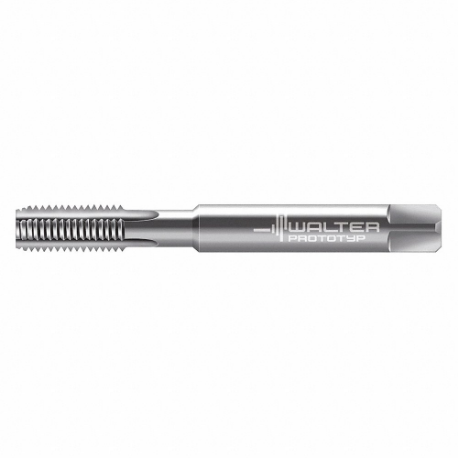

WALTER TOOLS 8031310-M6 5115683 Straight Flute Tap, M6X1 Thread Size, 15 mm Thread Length, 80 mm Length
Item: CU9BPMModel: 8031310-M6Cross Ref: 427J17 / 5115683
7 In Stock
Ships within 2 days via
10.00% off
€561.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 5.25 mm |
| 65% Thread Drill Size | 13/64" |
| 75% Thread Drill Size | 5 mm |
| Coolant Fed | Coolant Through |
| Extended Neck | Yes |
| Number Of Flutes | 3 |
| Overall Length | 80 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Primary Material Application Iso Code | K, N |
| Shank Dia. | 6 mm |
| Shank Length | 50 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 4.9 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright Uncoated |
| Tap Length Standard | DIN 371 L |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 L |
| Tap Style | Straight Flute Hand |
| Thread Direction | Right Hand |
| Thread Length | 15 mm |
| Thread Limit / Class Of Fit | 6HX |
| Thread Size | M6 x 1 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Shank Dia. | Overall Length | Thread Standard | Number Of Flutes | Tap Style | Coolant Fed | Thread Limit / Class Of Fit | Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8231106-UNC10 | 6 mm | - | Coarse | 3 | Straight Flute Hand | Non Coolant Through | H3, 2B, H4, 2B | 16 mm | €541.47 | |
| 8331106-UNF10 | 6 mm | 70 mm | Fine | 3 | Straight Flute Hand | Non Coolant Through | H2, 2B, H3, 2B | 16 mm | €541.47 | |
| 8231106-UNC1/4 | 7 mm | 80 mm | Coarse | 3 | Straight Flute Hand | Non Coolant Through | H4, 2B, H5, 2B | 20 mm | €710.08 | |
| 8331106-UNF1/4 | 17/64" | 3 1/8" | Fine | 3 | Straight Flute Hand | Non Coolant Through | H3, 2B, H4, 2B | 3/4" | €710.08 | |
| 8231106-UNC3/8 | 10 mm | - | Coarse | 3 | Straight Flute Hand | Non Coolant Through | H4, 2B, H5, 2B | 30 mm | €1,135.49 | |
| 8331106-UNF3/8 | 25/64" | 3 17/32" | Fine | 3 | Straight Flute Hand | Non Coolant Through | H3, 2B, H4, 2B | 1 1/8" | €1,135.49 | |
| 8231106-UNC5/16 | - | 90 mm | Coarse | 3 | Straight Flute Hand | Non Coolant Through | H4, 2B, H5, 2B | 25 mm | €866.18 |
