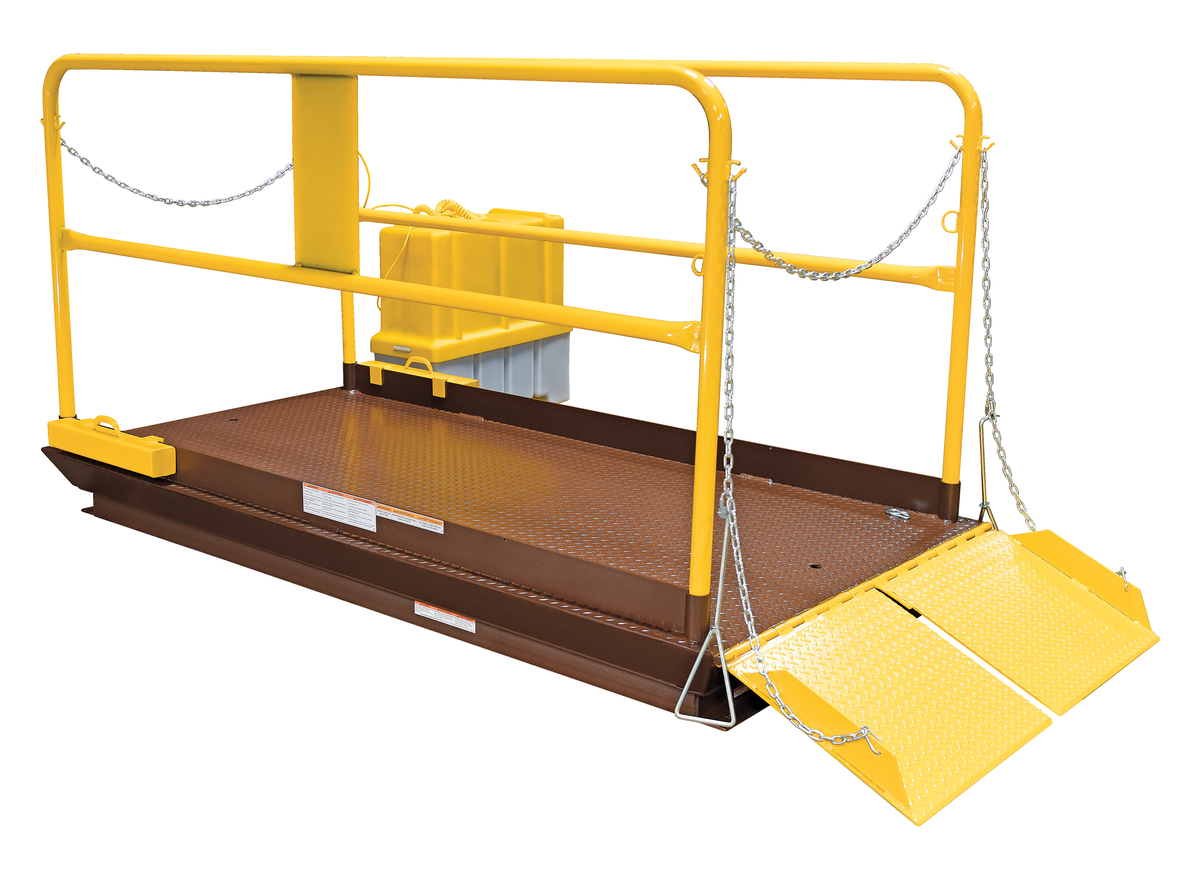

VESTIL WL-100-12-810 Steel Premium Truck Scissor Dock Lift, 8 x 10 ft, 12000 lb Capacity, Brown/Yellow
Get it by Tuesday, Dec 23
€26,568.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Scissor Lift Table |
| Ansi Class | MH 29.1 |
| Assembly | Assembly Required |
| Axle End Load Capacity | 9750 lbs. |
| Axle Side Load Capacity | 8500 lbs. |
| Batteries Included | No |
| Beveled Toe Guard | 5" |
| Control Pendant Cord Length | 20 ft. |
| Cord Length | 8 ft. |
| Frame Width | 86 In. |
| Frequency | 60 Hz |
| Handrail Height | 45" |
| Handrail Midrail Height | 21" |
| Height | 59" |
| Includes | Removable 4" High Toeboard And 5" Beveled Toe Guard |
| Length | 138" |
| Load Capacity | 12000 lbs. |
| Lowered Height | 14" |
| Material | Steel |
| Max. Height | 58" |
| Measuring Units | EACH |
| Motor Hp | 6 1/2 hp |
| Motor Type | External |
| Operation Type | Push Button, Electrical |
| Overload Protection | Yes |
| Phase | 3 |
| Platform Length | 120" |
| Platform Style | Tread Plate |
| Platform Thickness | 1/4" |
| Platform Width | 96" |
| Rail Type | Removable Handrail |
| Raised Height | 72" |
| Spool/coil Length (ft.) | 4 ft. to 20 ft. |
| Toeboard Height | 4" |
| Width | 96" |
Shipping Info:
| Ship weight (kg) | 2944.35 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 243.84 |
| HS code | 8428900290 |
| Country of Origin | US |
Product Variants
| Product | Model | Load Capacity | Platform Width | Platform Length | Height | Axle End Load Capacity | Axle Side Load Capacity | Max. Height | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WL-100-10-610 | 10000 lbs. | 72" | 120" | 59" | 8250 lbs. | 7200 lbs. | 58" | 3 | €24,001.69 | |
 |
WL-100-10-612 | 10000 lbs. | 72" | 144" | 59" | 8250 lbs. | 7200 lbs. | 58" | 3 | €25,458.10 | |
 |
WL-100-10-68 | 10000 lbs. | 72" | 96" | 59" | 8250 lbs. | 7200 lbs. | 58" | 3 | €22,101.97 | |
 |
WL-100-10-710 | 10000 lbs. | 84" | 120" | 59" | 8250 lbs. | 7000 lbs. | 58" | 3 | €24,357.14 | |
 |
WL-100-10-712 | 10000 lbs. | 84" | 144" | 59" | 8250 lbs. | 7000 lbs. | 58" | 3 | €25,671.25 | |
 |
WL-100-10-78 | 10000 lbs. | 84" | 96" | 59" | 8250 lbs. | 7000 lbs. | - | 3 | €23,329.24 | |
 |
WL-100-10-810 | 10000 lbs. | 96" | 120" | 59" | 8250 lbs. | 7000 lbs. | - | 3 | €25,097.42 |
