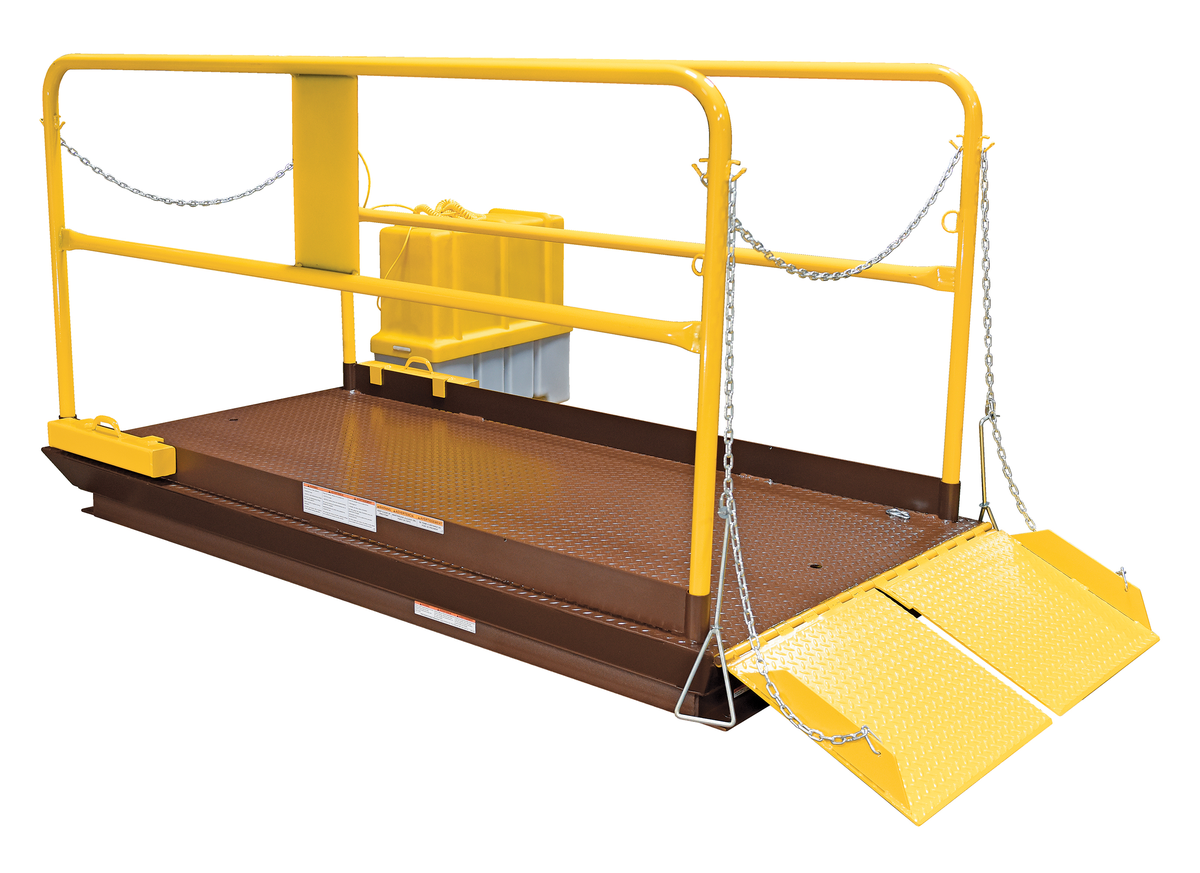

VESTIL WL-100-12-78 Steel Premium Truck Scissor Dock Lift, 7 x 8 ft, 12000 lb Capacity, Brown/Yellow
Get it by Friday, Aug 28
€25,690.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Scissor Lift Table |
| Ansi Class | MH 29.1 |
| Assembled Depth | 114" |
| Assembled Height | 59" |
| Assembled Width | 84" |
| Assembly | Assembly Required |
| Axle End Load Capacity | 9750 lbs. |
| Axle Side Load Capacity | 8500 lbs. |
| Batteries Included | No |
| Beveled Toe Guard | 5" |
| Color Family | Brown, Yellow |
| Control Pendant Cord Length | 20 ft. |
| Cord Length | 8 ft. |
| Features | Unique Design Services Semi Trailers When Loading Dock Is Unavailable |
| Frame Width | 62 In. |
| Frequency | 60 Hz |
| Hand Rail Height | 45" |
| Handrail Midrail Height | 21" |
| Height | 59" |
| Included | Removable 4" High Toeboard And 5" Beveled Toe Guard |
| Length | 114" |
| Load Capacity | 12000 lbs. |
| Lowered Height | 14" |
| Material | Steel |
| Max. Height | 58" |
| Measuring Units | EACH |
| Motor Hp | 6 1/2 hp |
| Motor Type | External |
| Operation Type | Push Button, Electrical |
| Overload Protection | Yes |
| Phase | 3 |
| Platform Length | 96" |
| Platform Style | Tread Plate |
| Platform Thickness | 1/4" |
| Platform Width | 84" |
| Rail Type | Removable Handrail |
| Raised Height | 72" |
| Spool/coil Length | 4 ft. to 20 ft. |
| Toe Board Height | 4" |
| Width | 84" |
Shipping Info:
| Ship weight (kg) | 2755.35 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 243.84 |
| Ship width (cm) | 213.36 |
| HS code | 8428900290 |
| Country of Origin | US |
Product Variants
| Product | Model | Load Capacity | Raised Height | Lowered Height | Material | Assembled Depth | Assembled Width | Assembled Height | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WL-100-10-610 | 10000 lbs. | 72" | - | Steel | 138" | 72" | 59" | 59" | €24,721.74 | |
 |
WL-100-10-612 | 10000 lbs. | 72" | - | Steel | 162" | 72" | 59" | 59" | €26,221.84 | |
 |
WL-100-10-68 | 10000 lbs. | 72" | 14" | Steel | 114" | 72" | 59" | 59" | €22,765.03 | |
 |
WL-100-10-710 | 10000 lbs. | 72" | 14" | Steel | 138" | 84" | 59" | 59" | €25,087.86 | |
 |
WL-100-10-712 | 10000 lbs. | 72" | 14" | Steel | 162" | 84" | 59" | 59" | €26,441.41 | |
 |
WL-100-10-78 | 10000 lbs. | 72" | 14" | Steel | 114" | 84" | 59" | 59" | €24,029.12 | |
 |
WL-100-10-810 | 10000 lbs. | 72" | 14" | Steel | 138" | 96" | 59" | 59" | €25,850.35 |
