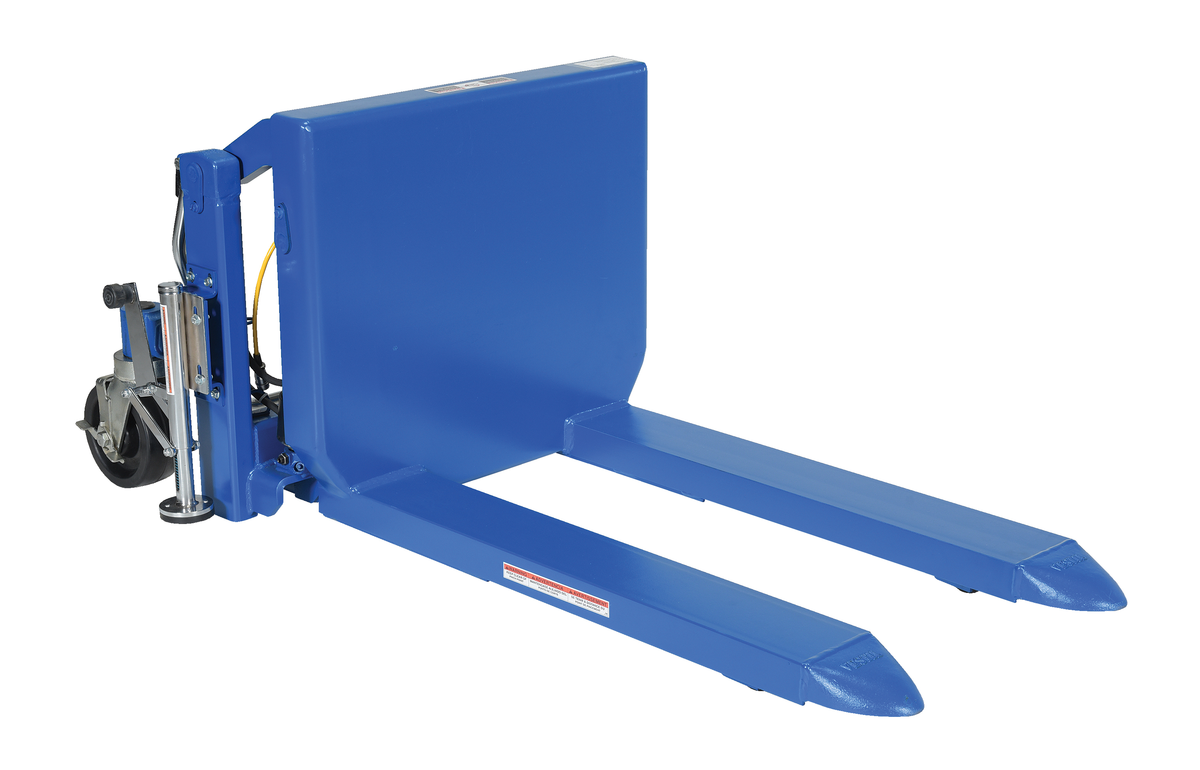

VESTIL TM-40-DC Steel Tilt Master DC Power 12 Volt 4000 lb Capacity, Blue
Get it by Tuesday, Dec 23
10.00% off
€8,627.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Pallet Tilter |
| Assembly | Assembled |
| Battery Voltage | 12V DC |
| Caster Type | Phenolic |
| Caster Wheel Dia. | 8" |
| Charger Type | On-Board |
| Charger Voltage | 115V AC |
| Color | Blue |
| Color Family | Blue |
| Features | Ergonomic Handle, Floor Lock Standard On Non Ptds Units, Units Come Standard With A Hand Pendant Control On An 8 Foot Coil Cord |
| Fluid Type | ISO 32 |
| For Pallet Type | Open |
| Fork Height | 3 1/2" |
| Fork Length | 38 1/8" |
| Fork Style | Standard |
| Fork Thickness | 3 1/2" |
| Fork Type | Fixed |
| Fork Width | 6" |
| Frame Material | Steel |
| Front Caster Dia. | 3" |
| Front Caster Material | Phenolic |
| Front Caster Width | 1 1/2" |
| Handle Length | 20" |
| Handle Type | Ergonomic |
| Height | 28 3/8" |
| Includes | Battery Charger |
| Length | 67.812" |
| Lift Control | Push Button |
| Lifting Height Per Pump | 33" |
| Load Capacity | 4000 lbs. |
| Load Center | 20" |
| Load Wheel Diameter | 8" |
| Load Wheel Width | 3" |
| Lowered Height | 3 5/8" |
| Material | Steel |
| Max. Height | 33" |
| Max. Tilt Angle | 90° |
| Max. Travel Distance | 29 3/8" |
| Maximum Lifting Height | 76 5/16" |
| Maximum Tilting Degree | 90° |
| Measuring Units | EACH |
| Min. Height | 3.63" |
| Min. Width Between Forks | 26" |
| Minimum Lifting Height | 3 1/2" |
| Number Of Batteries | 1 |
| Number Of Casters | 6 |
| Operator Reach | 7 1/4" |
| Overall Height | 76 5/16" |
| Overall Length | 75 1/4" |
| Overall Width | 41 1/16" |
| Overload Protection | Yes |
| Power | 12V DC |
| Power Source | Electric Cordless |
| Rear Caster Dia. | 8" |
| Rear Caster Material | Phenolic |
| Rear Caster Width | 3" |
| Rotated Height | 33" |
| Tilting Deg. | 90° |
| Wheel Dia. | 8" |
| Wheel Material | Phenolic |
| Wheel Width | 3" |
| Width | 40 7/8" |
| Width Across Forks | 26" |
| Width Between Forks | 14" |
Shipping Info:
| Ship weight (kg) | 296.1 |
| Ship height (cm) | 88.9 |
| Ship length (cm) | 162.56 |
| Ship width (cm) | 101.6 |
| HS code | 8427900000 |
| Country of Origin | US |
Product Variants
| Product | Model | Load Capacity | Handle Type | Fork Width | Overall Height | Overall Length | Power Source | Min. Height | Overload Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

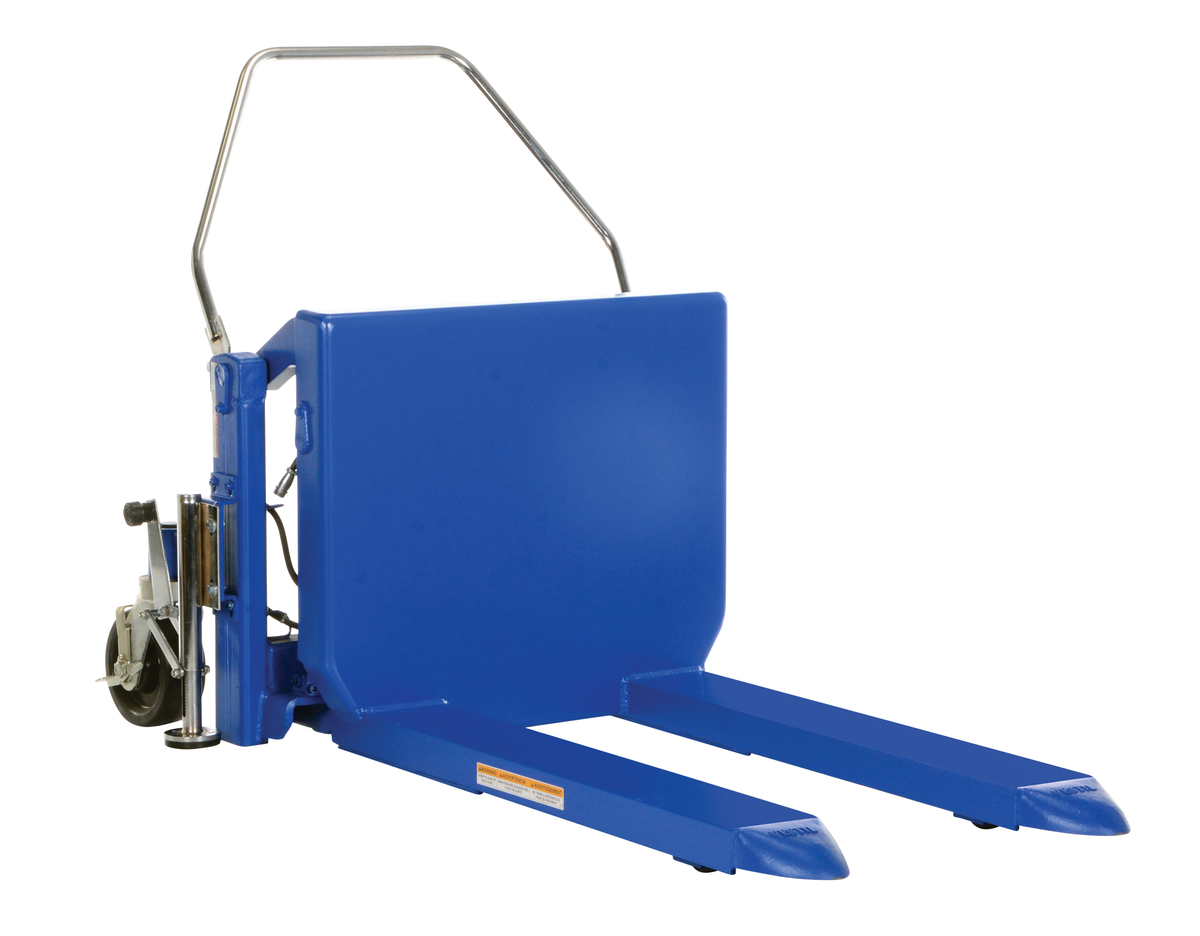

TM-20-AC | 2000 lbs. | Folding | 6" | 28 5/16" | 75 9/16" | Electric Corded | 3.63" | No | €6,922.56 | |
 |

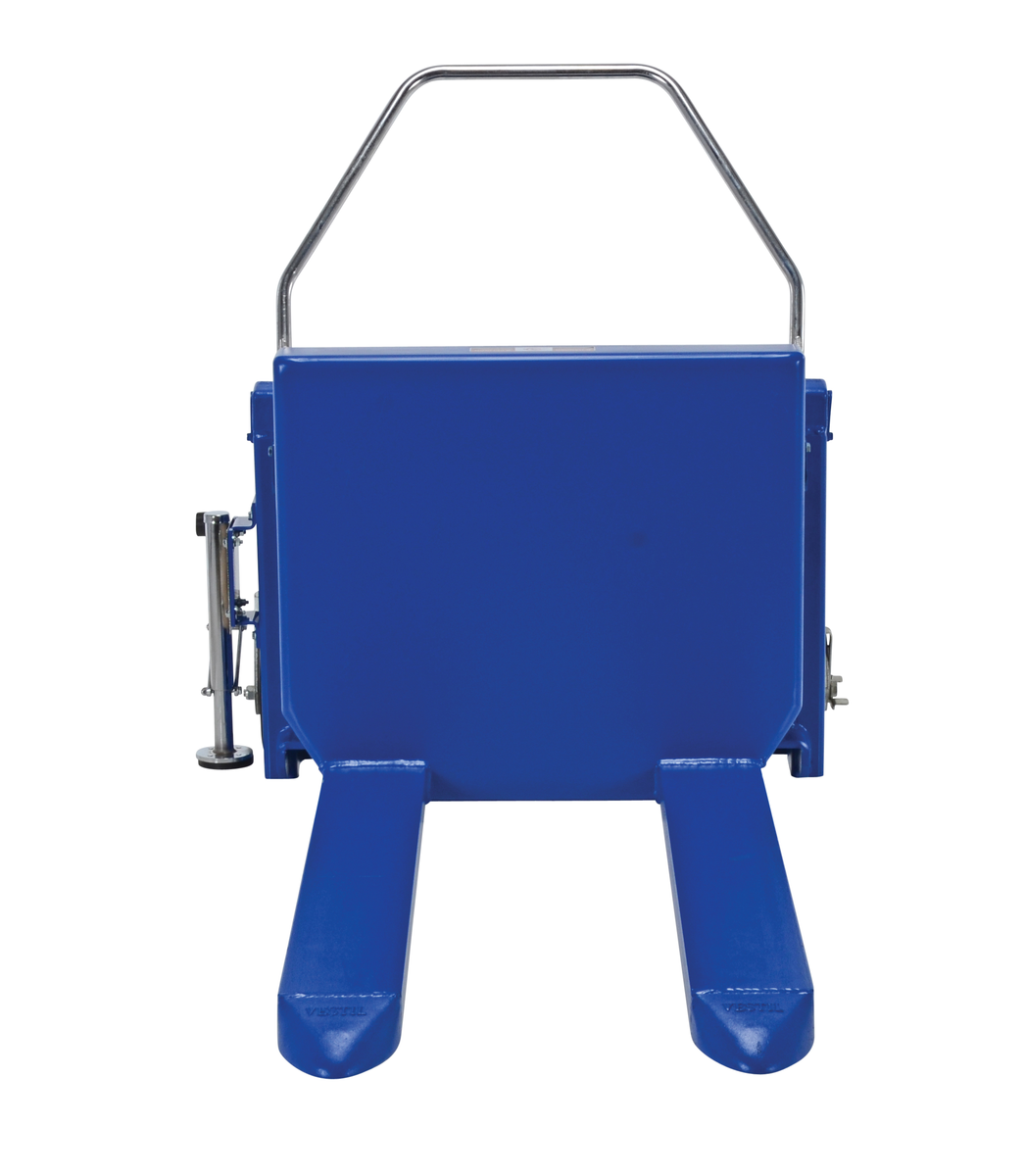

TM-20-AIR | 2000 lbs. | Folding | 6" | 28 5/16" | 75 9/16" | Pneumatic | 3.63" | No | €5,623.83 | |
 |

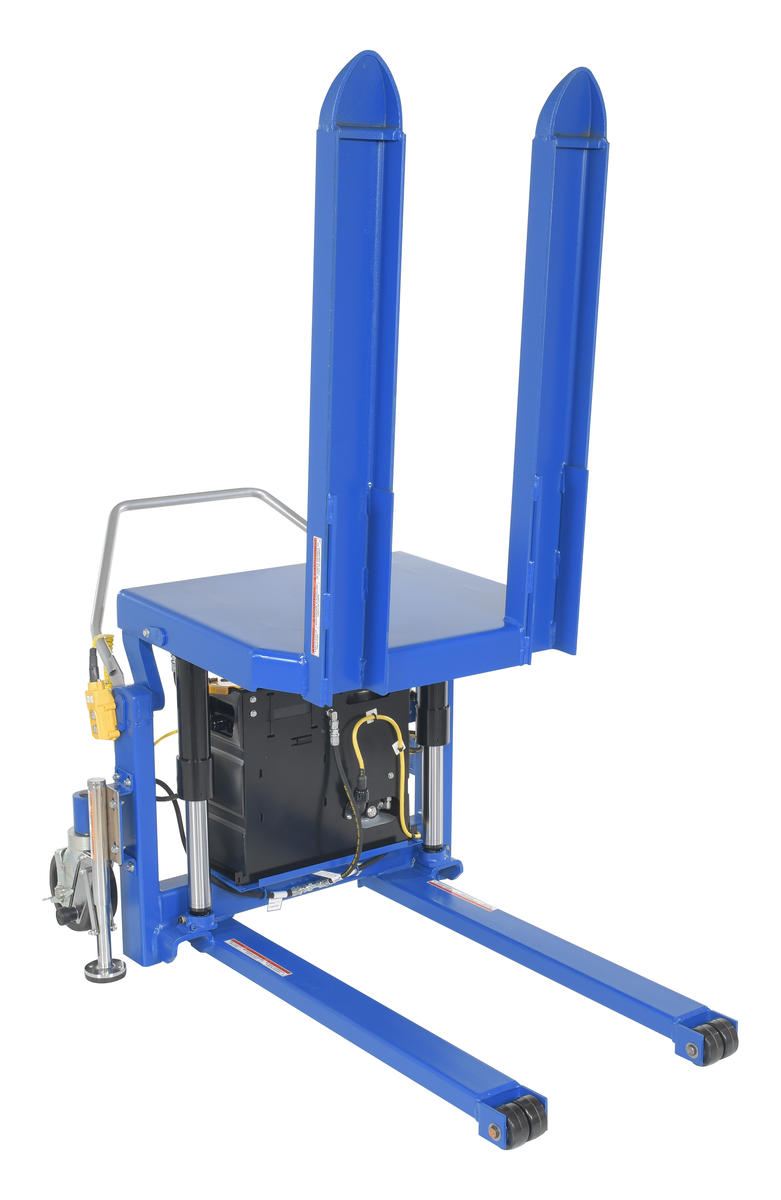

TM-20-DC | 2000 lbs. | Folding | 6" | 28 5/16" | 75 9/16" | Electric Cordless | 3.63" | No | €8,840.01 | |
 |

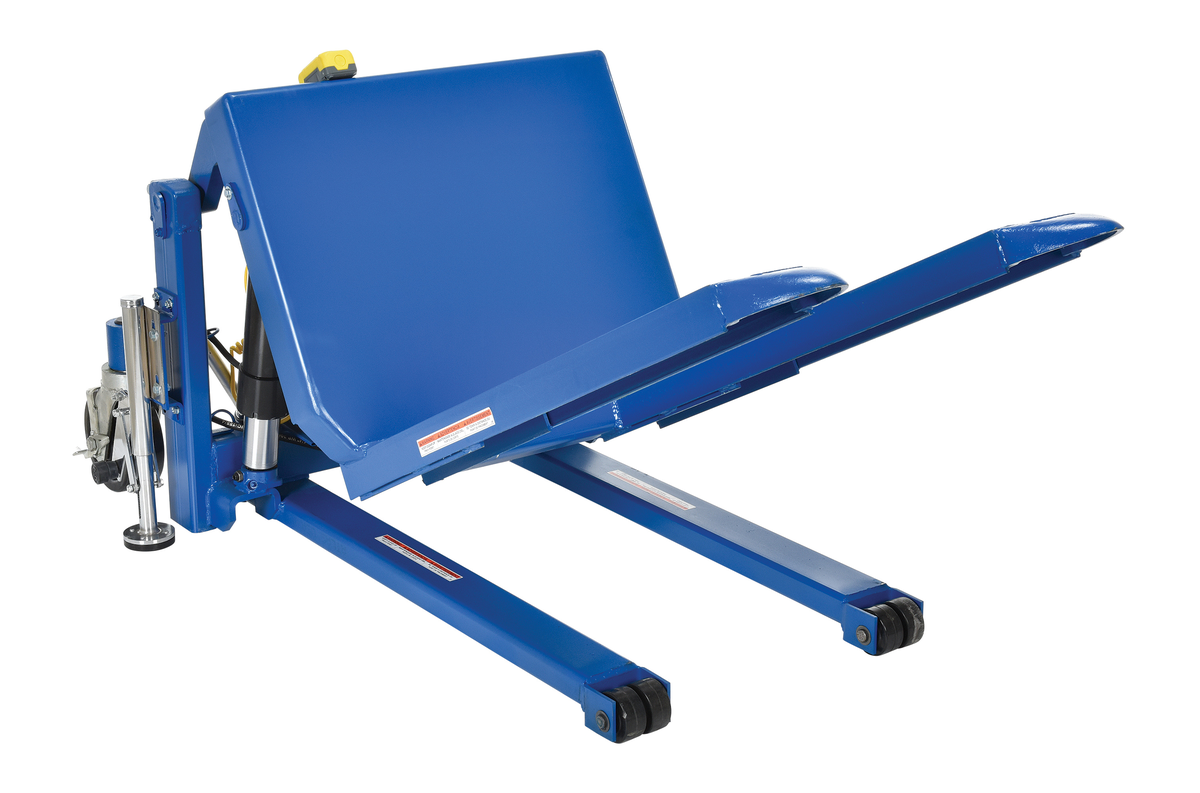

TM-40-AC | 4000 lbs. | Folding | 6" | - | - | Electric Corded | 3.63" | Yes | €6,226.37 | |
 |

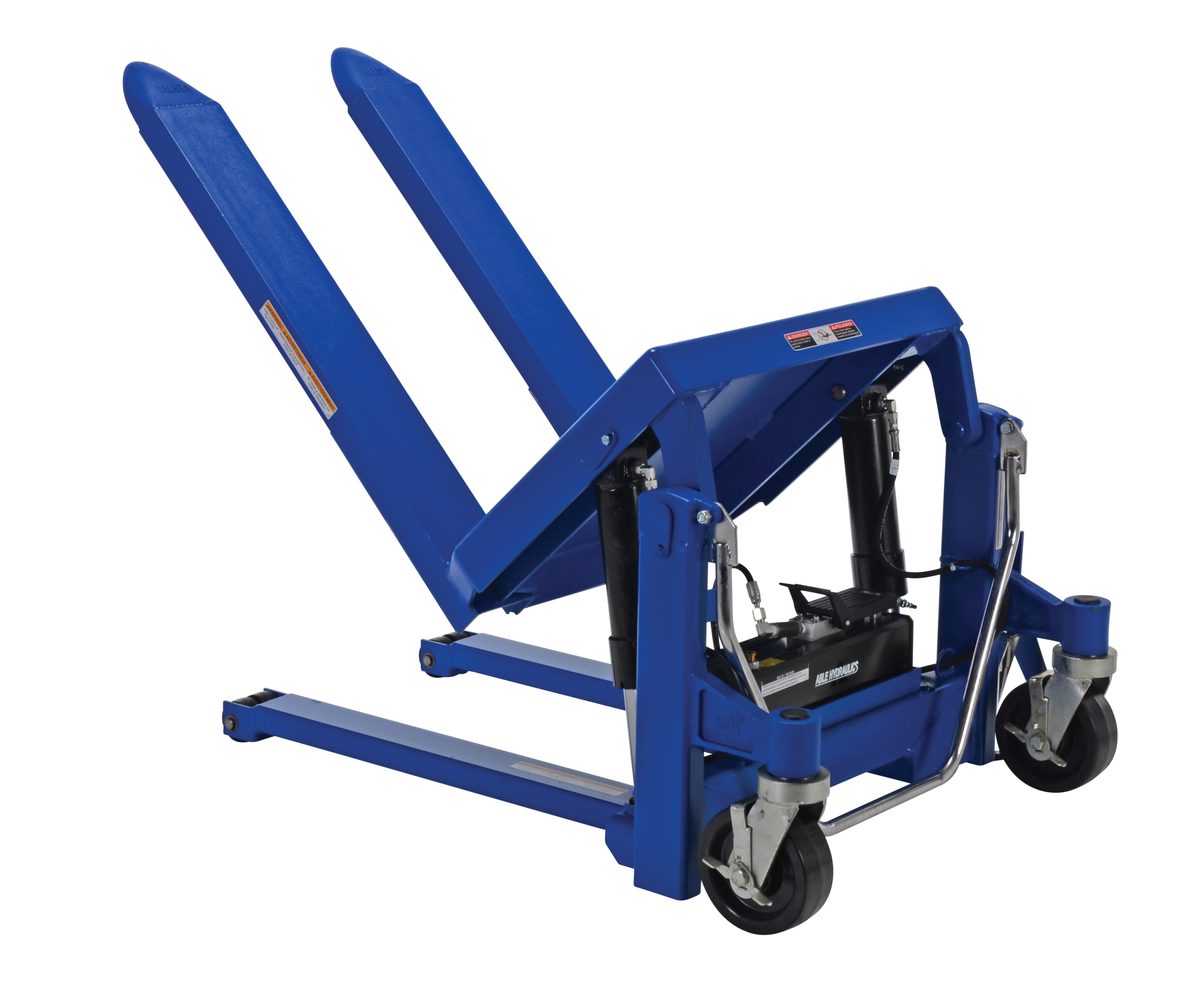

TM-40-AIR | 4000 lbs. | Folding | 6" | - | - | Pneumatic | 3.63" | Yes | €6,226.37 | |
 |

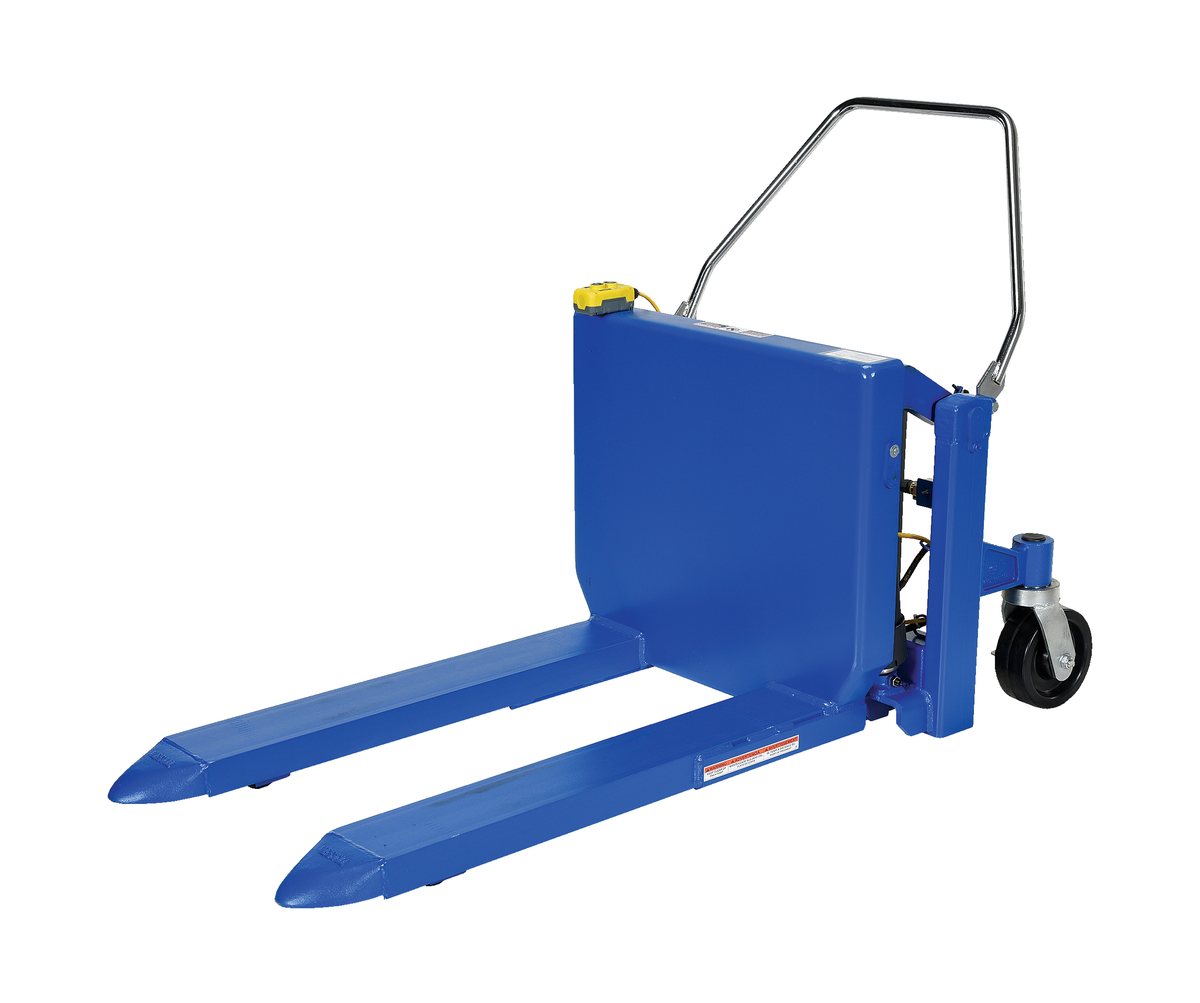

TM-60-AC | 6000 lbs. | Folding | 6 1/2" | - | - | Electric Corded | 3.63" | Yes | €6,713.21 | |
 |

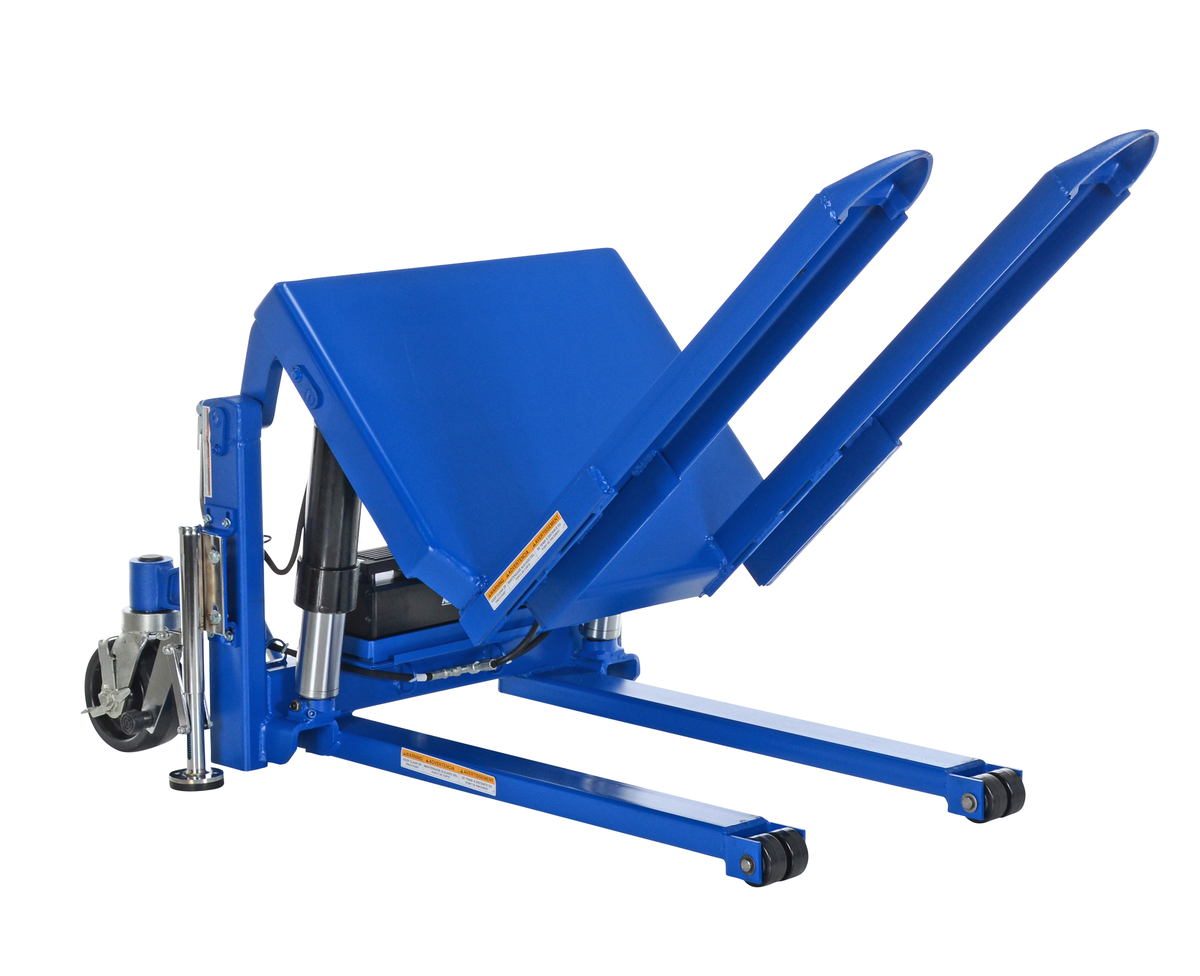

TM-60-AIR | 6000 lbs. | Folding | 6 1/2" | - | - | Pneumatic | 3.63" | Yes | €6,713.21 |
