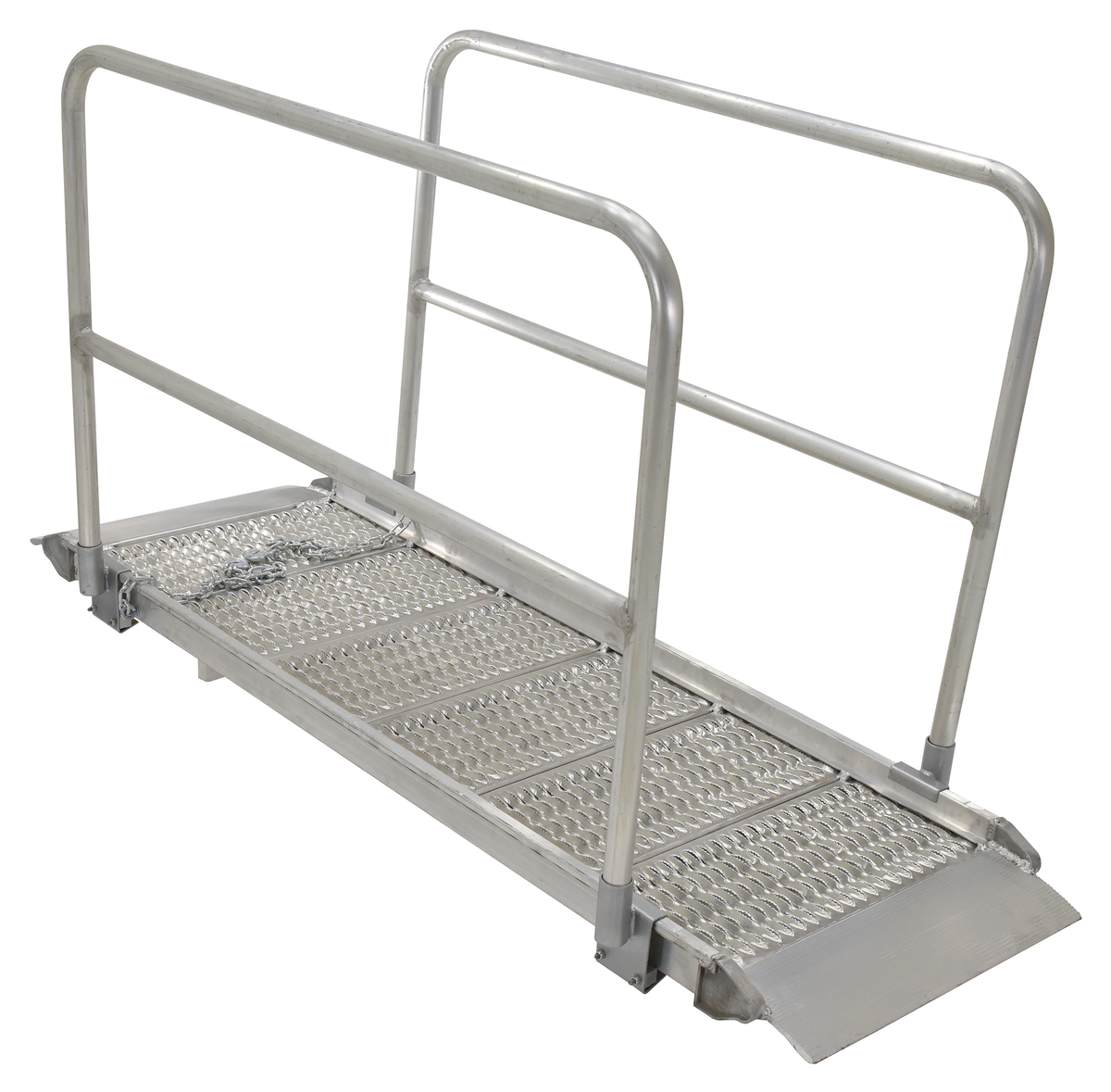

VESTIL AWR-G-38-12A-HR Aluminium Grip-Strut Walk Ramps with Handrails, 143-3/4 x 39-3/8 Inch, 1900 lb Capacity, Silver
39.38" x 143.75"
Get it by Tuesday, Sep 1
€2,718.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Walk Ramp |
| Assembled Depth | 143 3/4" |
| Assembled Height | 45 5/16" |
| Assembled Width | 39 3/8" |
| Assembly | Assembled |
| Batteries Included | No |
| Capacity With 2 Wheel Cart | 1400 lbs. |
| Capacity With 4 Wheel Cart | 1900 lbs. |
| Certification Indicator | D |
| Color | Silver |
| Color Family | Silver |
| Contains Hazardous Material Or Is Aerosol | No |
| Curb Height | 2" |
| Curb Height (in.) | 2" |
| Deck Type | Grip Strut |
| Depth | 143 3/4" |
| Distance Between Curbs | 39 3/8" |
| Features | 100% Welded Aluminum Construction Is Light Weight And Will Not Rust |
| Hand Rail Height | 40 1/4" |
| Handrail Color | Silver |
| Handrail Colour | Silver |
| Handrail Included | Yes |
| Handrails Included | Yes |
| Height | 45.333" , 6" to 46" |
| Included | 4 Bolt On Handrails |
| Installation Type | Bolt on |
| Length | 12 ft. |
| Material | Aluminum |
| Max. Height | 46" |
| Mid Rail Height | 18 11/25" , 18.444" |
| Midrail | 18.438" |
| Min. Height | 6" |
| No. Of Handrails | 4 |
| Origin Criterion | B |
| Overall Length | 12 ft. |
| Overall Width | 39 3/8" |
| Railing Height | 40 1/4" |
| Ramp Frame Material | Aluminum |
| Ramp Grate Material | Aluminum |
| Safety Curb | 2" |
| Usable Length | 143 3/4" |
| Usable Rail Length | 122.312" |
| Usable Ramp Length | 143 3/4" |
| Usable Ramp Width | 36" |
| Usable Width | 36" |
| Weight Capacity | 1900 lbs. |
| Width | 39 3/8" |
Shipping Info:
| Ship weight (kg) | 76.5 |
| Ship height (cm) | 115.09 |
| Ship width (cm) | 100.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Usable Ramp Width | Assembled Width | Assembled Depth | Height | Usable Ramp Length | Usable Length | Capacity With 2 Wheel Cart | Capacity With 4 Wheel Cart | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AWR-G-28-10A-HR | 26" | 29 3/8" | 120 1/4" | 45.333" | 120 1/4" | 120 1/4" | 1500 lbs. | 2200 lbs. | €1,847.46 | |
 |
AWR-G-28-12A-HR | 26" | 29 3/8" | 143 3/4" | 45.333" | 143 3/4" | 143 3/4" | 1400 lbs. | 1900 lbs. | €2,516.83 | |
 |
AWR-G-28-14A-HR | 26" | 29 3/8" | 167 1/4" | 45.333" | 167 1/4" | 167 1/4" | 1200 lbs. | 1600 lbs. | €2,682.18 | |
 |
AWR-G-28-16A-HR | 26" | 29 3/8" | 190 3/4" | 45.333" | 190 3/4" | 190 3/4" | 1000 lbs. | 1000 lbs. | €2,960.85 | RFQ
|
 |
AWR-G-28-6A-HR | 26" | 29 3/8" | 73 1/4" | 45.333" | 73 1/4" | 73 1/4" | 2000 lbs. | 2800 lbs. | €1,364.20 | |
 |
AWR-G-28-7A-HR | 26" | 29 3/8" | 85" | 45.333" | 85" | 85" | 1800 lbs. | 2800 lbs. | €1,507.60 | |
 |
AWR-G-28-8A-HR | 26" | 29 3/8" | 96 3/4" | 45.333" | 96 3/4" | 96 3/4" | 1650 lbs. | 2500 lbs. | €1,634.68 |
