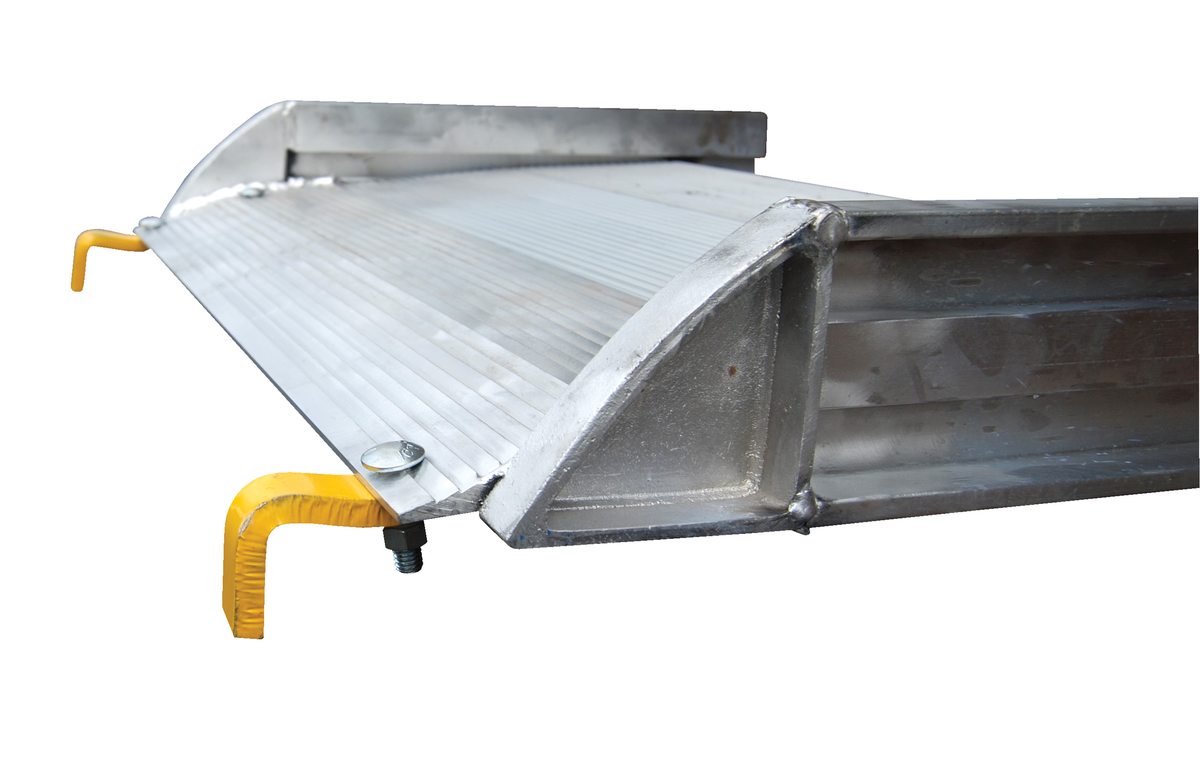

VESTIL AWR-38-6B Aluminium Wheel Walk Ramp, Steel Hook Style, 75-7/16 x 38 Inch, 3000 lb capacity, Silver
75.4375"
5.4375"
38"
Get it by Thursday, Aug 27
€773.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Walk Ramp |
| Assembled Depth | 75 7/16" |
| Assembled Height | 5 7/16" |
| Assembled Width | 38" |
| Assembly | Assembled |
| Capacity With 2 Wheel Cart | 2000 lbs. |
| Capacity With 4 Wheel Cart | 2800 lbs. |
| Color | Silver |
| Color Family | Silver |
| Curb Height | 1 1/2" |
| Curb Height (in.) | 1 1/2" |
| Depth | 75.444" |
| Distance Between Curbs | 38" |
| Features | 100% Welded Aluminum Construction Is Light Weight And Will Not Rust |
| Height | 6" to 23" |
| Included | Safety Retaining Chains |
| Length | 72" |
| Material | Aluminum |
| Max. Height | 23" |
| Measuring Units | EACH |
| Min. Height | 6" |
| Ramp Frame Material | Aluminum |
| Ramp Grate Material | Aluminum |
| Safety Curb | 1 1/2" |
| Usable Length | 72" |
| Usable Ramp Length | 73 7/8" |
| Usable Ramp Width | 36" |
| Usable Width | 36" |
Shipping Info:
| Ship weight (kg) | 39.6 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 182.88 |
| Ship width (cm) | 96.52 |
| HS code | 7610900080 |
| Country of Origin | US |
Product Variants
| Product | Model | Usable Ramp Width | Assembled Height | Assembled Width | Assembled Depth | Usable Ramp Length | Usable Length | Capacity With 2 Wheel Cart | Distance Between Curbs | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AWR-28-10A | 26" | 4 7/16" | 28" | 120" | 120" | 120" | 1500 lbs. | 28" | €899.45 | |
 |
AWR-28-10B | 26" | 5 7/8" | 28" | 123 1/16" | 121.571" | 120" | 1500 lbs. | 28" | €850.85 | |
 |
AWR-28-12A | 26" | 4 7/16" | 28" | 144" | 144" | 144" | 1400 lbs. | 28" | €1,063.61 | |
 |
AWR-28-12B | 26" | 5 7/8" | 28" | 146 15/16" | 145.444" | 144" | 1400 lbs. | 28" | €1,042.78 | |
 |
AWR-28-14A | 26" | 4 7/16" | 28" | 168" | 168" | 168" | 1200 lbs. | 28" | €1,203.50 | |
 |
AWR-28-14B | 26" | 5 7/8" | 28" | 170 13/16" | 169 1/4" | 168" | 1200 lbs. | 28" | €1,129.48 | |
 |
AWR-28-16A | 26" | 4 7/16" | 28" | 192" | 192" | 192" | 1000 lbs. | 28" | €1,357.31 |
