VESTIL AWR Series Aluminium Walk Ramps
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1| Style | Model | Distance Between Curbs | Usable Ramp Width | Usable Ramp Length | Usable Length | Capacity With 2 Wheel Cart | Capacity With 4 Wheel Cart | Depth | Max. Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AWR-28-10A | 28" | 26" | 120" | 120" | 1500 lbs. | 2200 lbs. | 120" | 38" | €825.18 | |
| B | AWR-28-7A | 28" | 26" | 84" | 84" | 1800 lbs. | 2800 lbs. | 84" | 25" | €629.99 | |
| C | AWR-28-4A | 28" | 26" | 48" | 48" | 2200 lbs. | 3000 lbs. | 48" | 13" | €459.13 | |
| D | AWR-28-10B | 28" | 26" | 121.571" | 120" | 1500 lbs. | 2200 lbs. | 123" | 40" | €780.60 | |
| E | AWR-28-4B | 28" | 26" | 50" | 49.938" | 2200 lbs. | 3000 lbs. | 52" | 15" | €420.02 | |
| F | AWR-28-9B | 28" | 26" | 109 5/8" | 108" | 1600 lbs. | 2500 lbs. | 111 1/5" | 35" | €711.64 | |
| G | AWR-28-9A | 28" | 26" | 108" | 108" | 1600 lbs. | - | 108" | 33" | €780.61 | |
| H | AWR-28-8B | 28" | 26" | 97.667" | 96" | 1650 lbs. | 2500 lbs. | 99 1/4" | - | €675.63 | |
| I | AWR-28-7B | 28" | 26" | 85 4/5" | 84" | 1800 lbs. | 2800 lbs. | 87.333" | 27" | €600.21 | |
| J | AWR-28-8A | 28" | 26" | 96" | 96" | 1650 lbs. | 2500 lbs. | - | 29" | €693.68 | |
| K | AWR-28-6B | 28" | 26" | 73 7/8" | 72" | 2000 lbs. | 2800 lbs. | 75.444" | 23" | €539.89 | |
| L | AWR-28-6A | 28" | 26" | 72" | 72" | 2000 lbs. | 2800 lbs. | 72" | - | €553.54 | |
| M | AWR-28-16B | 28" | 26" | 193 1/8" | 192" | 1000 lbs. | 1000 lbs. | 194 5/8" | 64" | €1,193.20 | |
| N | AWR-28-16A | 28" | 26" | 192" | 192" | 1000 lbs. | 1000 lbs. | 192" | 62" | €1,245.23 | |
| O | AWR-28-14B | 28" | 26" | 169 1/4" | 168" | 1200 lbs. | 1600 lbs. | 170 4/5" | 56" | €1,036.22 | |
| P | AWR-28-14A | 28" | 26" | 168" | 168" | 1200 lbs. | 1600 lbs. | 168" | 54" | €1,104.14 | |
| Q | AWR-28-12B | 28" | 26" | 145.444" | 144" | 1400 lbs. | 1900 lbs. | 147" | 48" | €956.68 | |
| R | AWR-28-12A | 28" | 26" | 144" | 144" | 1400 lbs. | 1900 lbs. | 144" | 46" | €975.79 | |
| S | AWR-38-7A | 38" | 36" | 84" | 84" | 1800 lbs. | 2800 lbs. | 84" | 25" | €1,003.36 | |
| T | AWR-38-4A | 38" | 36" | 48" | 48" | 2200 lbs. | 3000 lbs. | - | 13" | €597.15 | |
| U | AWR-38-9B | 38" | 36" | 109 5/8" | 108" | 1600 lbs. | 2500 lbs. | 111 1/5" | 35" | €903.68 | |
| V | AWR-38-9A | 38" | 36" | 108" | 108" | 1600 lbs. | 2500 lbs. | 108" | 33" | €899.46 | |
| W | AWR-38-8B | 38" | 36" | 97.667" | 96" | 1650 lbs. | 2500 lbs. | 99 1/4" | 31" | €871.79 | |
| X | AWR-38-8A | 38" | 36" | 96" | 96" | 1650 lbs. | 2500 lbs. | 96" | 29" | €835.80 | |
| Y | AWR-38-7B | 38" | 36" | 85.333" | 84" | 1800 lbs. | 2800 lbs. | 87.333" | 27" | €759.40 | |
| Z | AWR-38-12A | 38" | 36" | 144" | 144" | 1400 lbs. | 1900 lbs. | 144" | 46" | €1,229.21 | |
| A1 | AWR-38-6B | 38" | 36" | 73 7/8" | 72" | 2000 lbs. | 2800 lbs. | 75.444" | 23" | €709.54 | |

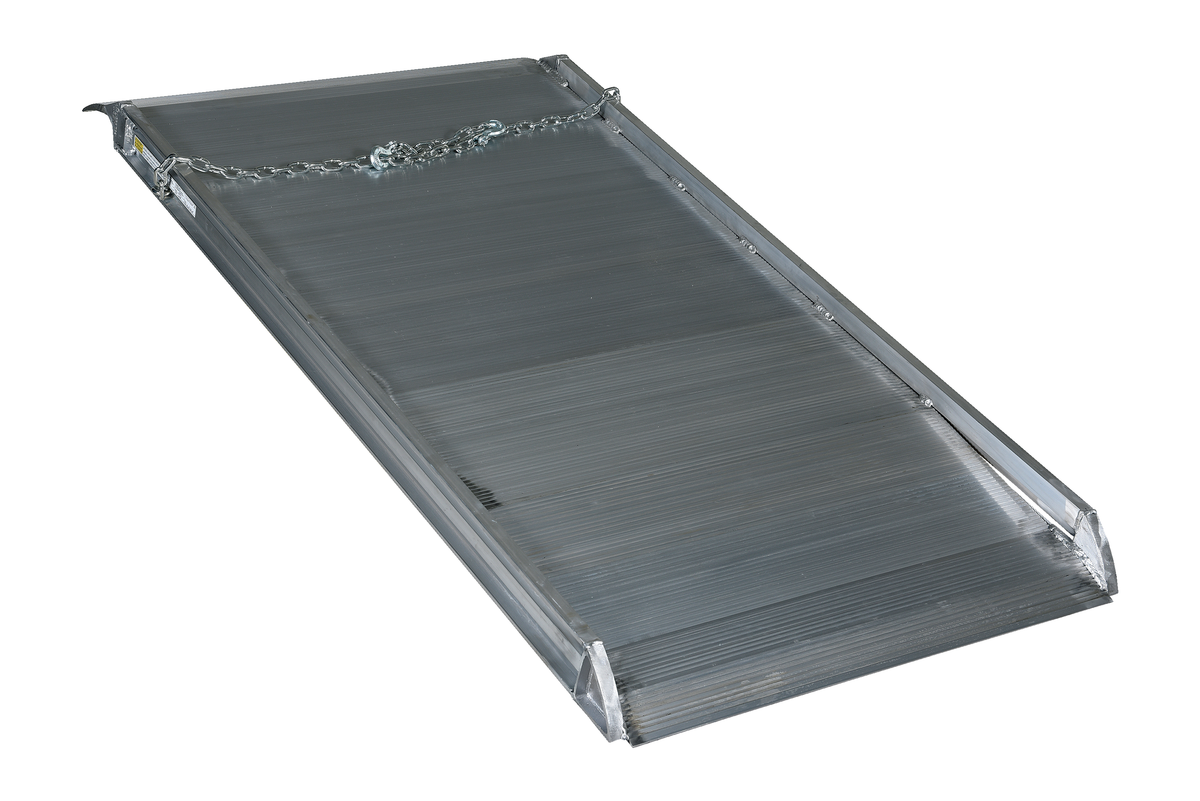

| B1 | AWR-38-6A | 38" | 36" | 72" | 72" | 2000 lbs. | 2800 lbs. | 72" | - | €717.00 | |
| C1 | AWR-38-16B | 38" | 36" | 193 1/8" | 192" | 1000 lbs. | 1000 lbs. | 194 5/8" | 64" | €1,498.63 | |
| D1 | AWR-38-16A | 38" | 36" | 192" | 192" | 1000 lbs. | 1000 lbs. | 192" | 62" | €1,499.83 | |

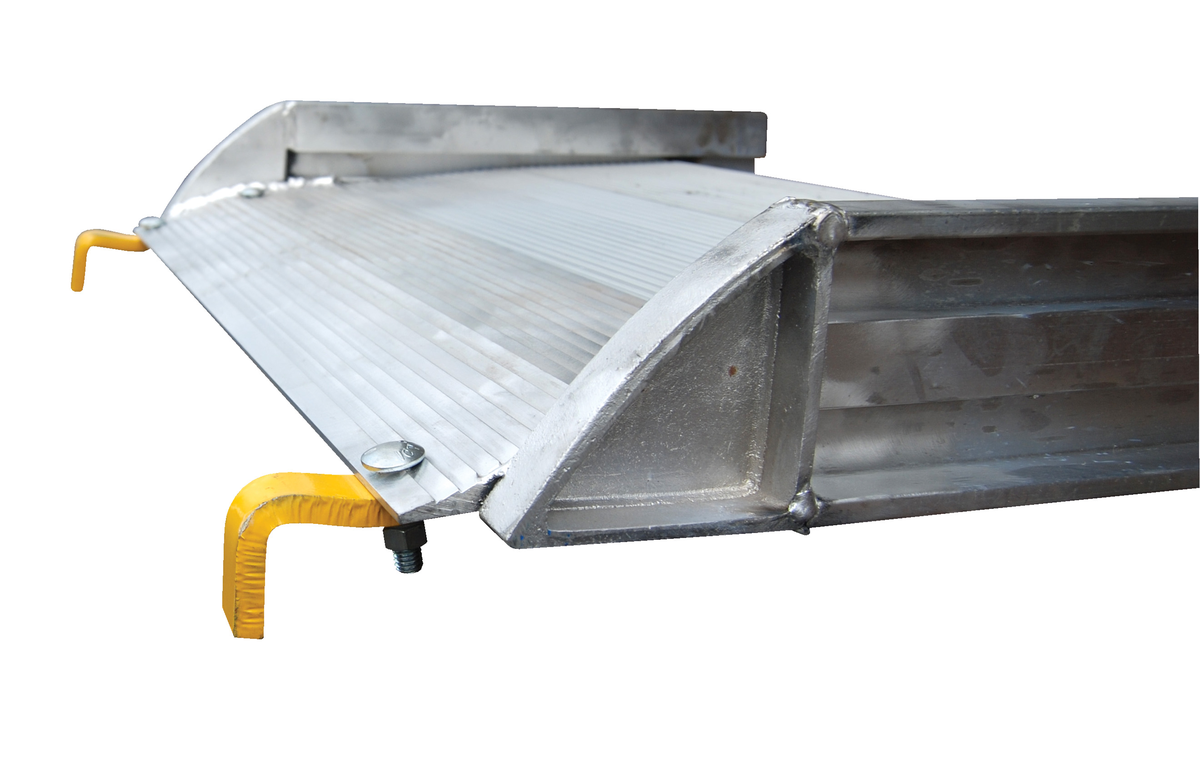

| E1 | AWR-38-14B | 38" | 36" | 169 1/4" | 168" | 1200 lbs. | 1600 lbs. | 170 4/5" | 56" | €1,348.07 | |
| F1 | AWR-38-14A | 38" | 36" | 168" | 168" | 1200 lbs. | 1600 lbs. | 168" | 54" | €1,376.70 | |
| G1 | AWR-38-12B | 38" | 36" | 145.444" | 144" | 1400 lbs. | 1900 lbs. | 146.333" | 48" | €1,201.63 | |
| H1 | AWR-38-10B | 38" | 36" | 121.571" | 120" | 1500 lbs. | 2200 lbs. | 123 1/5" | 40" | €1,008.70 | |
| I1 | AWR-38-10A | 38" | 36" | 120" | 120" | 1500 lbs. | 2200 lbs. | 120" | 38" | €1,228.39 | |
| J1 | AWR-38-4B | 38" | 36" | 50" | 50" | 2200 lbs. | 3000 lbs. | 52" | 15" | €557.87 |
