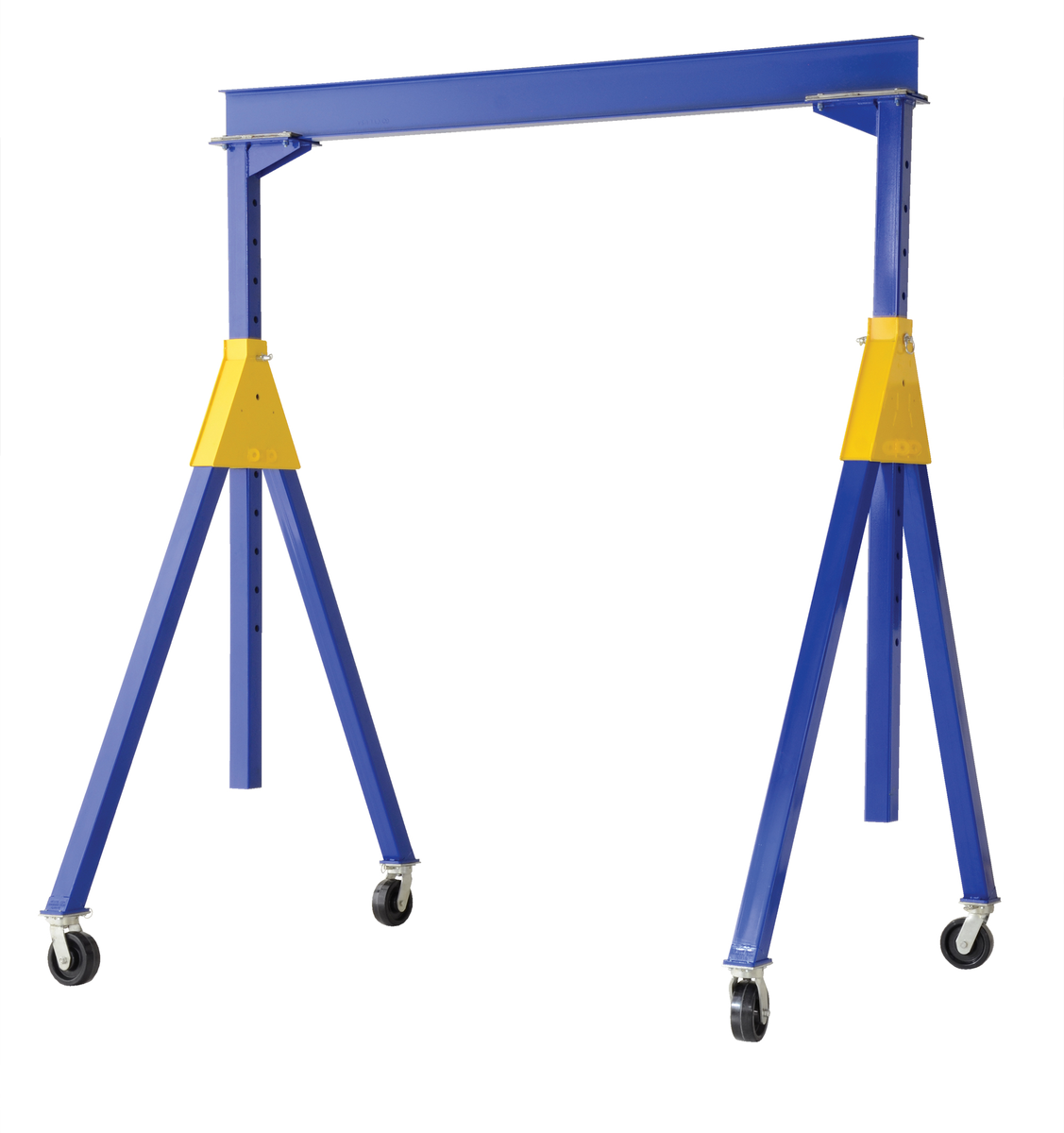

VESTIL AHSN-8-10-14 Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Caster, 10 x 14 ft, 8000 lb Capacity, Blue
Get it by Tuesday, Mar 3
€3,756.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Adjustable Height | Yes |
| Assembled Depth | 119 3/4" |
| Assembled Height | 177 1/16" |
| Assembled Width | 88" |
| Assembly | Assembly Required |
| Base Length | 119 3/4" |
| Base Width | 88" |
| Batteries Included | No |
| Beam Height | 8 1/8" , 8.13" |
| Beam Height | 8.13" |
| Beam Length | 120" |
| Capacity | 8000 lbs. |
| Caster Configuration | Swivel (4) Position Locking Casters |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Phenolic |
| Caster Width | 3" |
| Caster/wheel Locking | Yes |
| Certification Indicator | D |
| Color | Blue |
| Color Family | Blue |
| Contains Hazardous Material Or Is Aerosol | No |
| Features | Heavy Duty Welded Steel Construction For Long Lasting Use |
| Flange Width | 4" |
| Frame Material | Steel |
| Height | 177.062" |
| Height Adjustment | 6 In. |
| I Beam Height | 103" to 169" |
| I Beam Length | 120" |
| Increment Height Adjustment | 6" |
| Length | 119 3/4" |
| Material | Steel |
| Max. Clearance | 169" |
| Max. Overall Height | 177.06" |
| Measuring Units | EACH |
| Min. Clearance | 103" |
| Minimum Clearance | 103" |
| No. Of Casters/wheels | 4 |
| Number Of Casters | 4 |
| Origin Criterion | B |
| Style | Knock Down |
| Under I Beam Usable Height | 103" to 169" |
| Usable Beam Length | 89 3/4" |
| Usable Travel Distance | 89 3/4" |
| Wheel Dia. | 8" |
| Wheel Material | Phenolic |
| Wheel Width | 3" |
| Width | 88" |
Shipping Info:
| Ship weight (kg) | 405.45 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 200.66 |
| HS code | 8426190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Beam Height | Caster Material | I Beam Length | Usable Beam Length | Min. Clearance | Under I Beam Usable Height | Flange Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHSN-10-15-10 | 135.062" | 12.19" | Ductile Steel | 180" | 149 3/4" | 79" | 79" to 121" | 4" | €6,234.86 | |
 |
AHSN-2-10-12 | 149 7/8" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 90" | 90" to 144" | 4" | €2,874.47 | |
 |
AHSN-2-10-14 | 173.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 102" | 102" to 168" | 4" | €3,173.60 | |
 |
AHSN-2-10-16 | 197.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 126" | 126" to 192" | 4" | €3,828.09 | |
 |
AHSN-2-15-10 | 126 3/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 78" | 78" to 120" | 4" | €2,749.28 | |
 |
AHSN-2-15-12 | 149 7/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 90" | 90" to 144" | 4" | €3,161.83 | |
 |
AHSN-2-15-14 | 173.437" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 102" | 102" to 168" | 4" | €3,380.35 |
