VESTIL AHSN-10-15-10 Steel Knock-Down Adj Height Gantry Crane with Ductile Steel Caster, 15 x 10 ft, 10000 lb Capacity, Blue
Get it by Tuesday, Mar 3
€6,234.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Adjustable Height | Yes |
| Assembled Depth | 179 3/4" |
| Assembled Height | 134" |
| Assembled Width | 64 5/16" |
| Assembly | Assembly Required |
| Base Length | 179 3/4" |
| Base Width | 64 5/16" , 64.312" |
| Beam Height | 12 3/16" , 12.19" |
| Beam Height | 12.19" |
| Beam Length | 180" |
| Capacity | 10000 lbs. |
| Caster Configuration | Swivel (4) Position Locking Casters |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Ductile Steel |
| Caster Width | 3" |
| Caster/wheel Locking | Yes |
| Color | Blue |
| Color Family | Blue |
| Features | Heavy Duty Welded Steel Construction For Long Lasting Use |
| Flange Width | 4" |
| Frame Material | Steel |
| Height | 135.062" |
| Height Adjustment | 6 In. |
| I Beam Height | 78" to 120" |
| I Beam Length | 180" |
| Increment Height Adjustment | 6" |
| Length | 179 3/4" |
| Material | Steel |
| Max. Clearance | 121" |
| Max. Overall Height | 134" |
| Measuring Units | EACH |
| Min. Clearance | 79" |
| Minimum Clearance | 79" |
| No. Of Casters/wheels | 4 |
| Number Of Casters | 4 |
| Style | Knock Down |
| Under I Beam Usable Height | 79" to 121" |
| Usable Beam Length | 149 3/4" |
| Usable Travel Distance | 149 3/4" |
| Wheel Dia. | 8" |
| Wheel Material | Ductile Steel |
| Wheel Width | 3" |
| Width | 64.312" |
Shipping Info:
| Ship weight (kg) | 341.55 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 195.58 |
| Ship width (cm) | 165.1 |
| HS code | 8426190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Beam Height | Caster Material | I Beam Length | Usable Beam Length | Min. Clearance | Under I Beam Usable Height | Flange Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHSN-2-10-12 | 149 7/8" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 90" | 90" to 144" | 4" | €2,874.47 | |
 |
AHSN-2-10-14 | 173.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 102" | 102" to 168" | 4" | €3,173.60 | |
 |
AHSN-2-10-16 | 197.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 126" | 126" to 192" | 4" | €3,828.09 | |
 |
AHSN-2-15-10 | 126 3/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 78" | 78" to 120" | 4" | €2,749.28 | |
 |
AHSN-2-15-12 | 149 7/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 90" | 90" to 144" | 4" | €3,161.83 | |
 |
AHSN-2-15-14 | 173.437" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 102" | 102" to 168" | 4" | €3,380.35 | |
 |

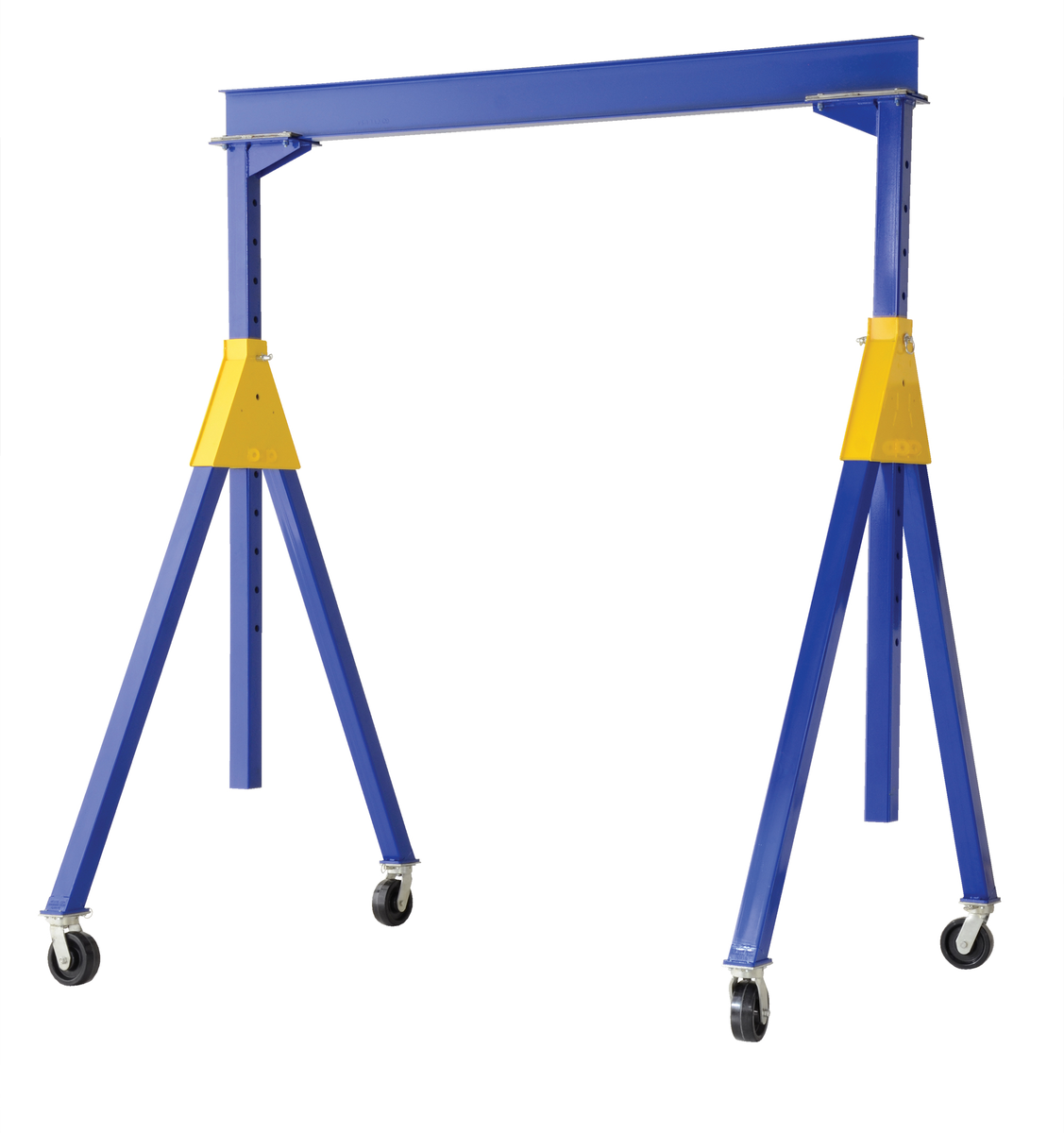

AHSN-2-15-16 | 197.437" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 126" | 126" to 192" | - | €4,031.72 |
