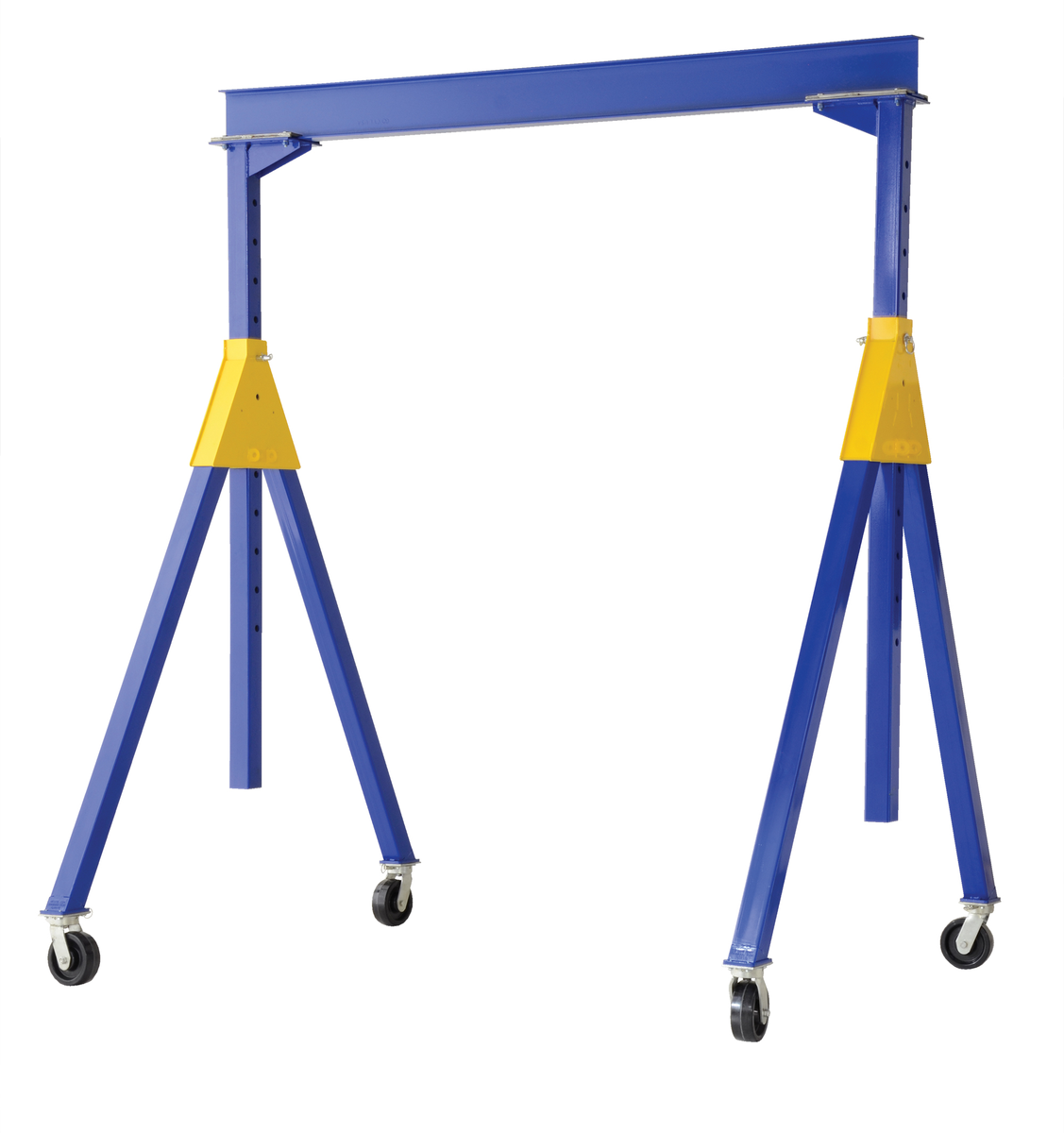

VESTIL AHSN-4-20-16 Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Caster, 20 x 16 ft, 4000 lb Capacity, Blue
4000 lbs.
239.75"
203.5625"
Get it by Monday, Aug 31
€5,556.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Adjustable Height | Yes |
| Assembled Depth | 239 3/4" |
| Assembled Height | 203 9/16" |
| Assembled Width | 91 1/2" |
| Assembly | Assembly Required |
| Base Width | 91 1/2" |
| Beam Height | 12.19" |
| Capacity | 4000 lbs. |
| Caster Configuration | Swivel (4) Position Locking Casters |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Glass Filled Nylon |
| Caster Width | 2" |
| Color | Blue |
| Color Family | Blue |
| Features | Heavy Duty Welded Steel Construction For Long Lasting Use |
| Flange Width | 4" |
| Height | 203.562" |
| Height Adjustment | 6 In. |
| I Beam Height | 126" to 192" |
| I Beam Length | 240" |
| Length | 239 3/4" |
| Material | Steel |
| Max. Clearance | 192" |
| Measuring Units | EACH |
| Min. Clearance | 126" |
| No. Of Casters | 4 |
| Style | Knock Down |
| Under I Beam Usable Height | 126" to 192" |
| Usable Beam Length | 209 3/4" |
| Width | 91 1/2" |
Shipping Info:
| Ship weight (kg) | 395.55 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 200.66 |
| HS code | 8426190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Caster Material | Beam Height | I Beam Height | Max. Overall Height | Wheel Material | Height | Assembled Height | Assembled Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHSN-10-15-10 | Ductile Steel | 12.19" | 78" to 120" | 134" | Ductile Steel | 135.062" | 134" | 64 5/16" | €6,795.99 | |
 |
AHSN-2-10-12 | Glass Filled Nylon | 6" | 90" to 144" | 149 7/8" | Glass Filled Nylon | 149 7/8" | 149 7/8" | 79 3/4" | €3,133.16 | |
 |
AHSN-2-10-14 | Glass Filled Nylon | 6" | 102" to 168" | 173.44" | Glass Filled Nylon | 173.437" | 173 7/16" | 91 1/2" | €3,459.24 | |
 |
AHSN-2-10-16 | Glass Filled Nylon | 6" | 126" to 192" | 197.44" | Glass Filled Nylon | 197.437" | 197 7/16" | 91 1/2" | €4,172.62 | |
 |
AHSN-2-15-10 | Glass Filled Nylon | 6" | 78" to 120" | - | - | 126 3/8" | 126 3/8" | 67 13/16" | €2,996.71 | |
 |
AHSN-2-15-12 | Glass Filled Nylon | 6" | 90" to 144" | - | - | 149 7/8" | 149 7/8" | 79 3/4" | €3,446.40 | |
 |
AHSN-2-15-14 | Glass Filled Nylon | 6" | 102" to 168" | - | - | 173.437" | 173 7/16" | 91 1/2" | €3,684.58 |
