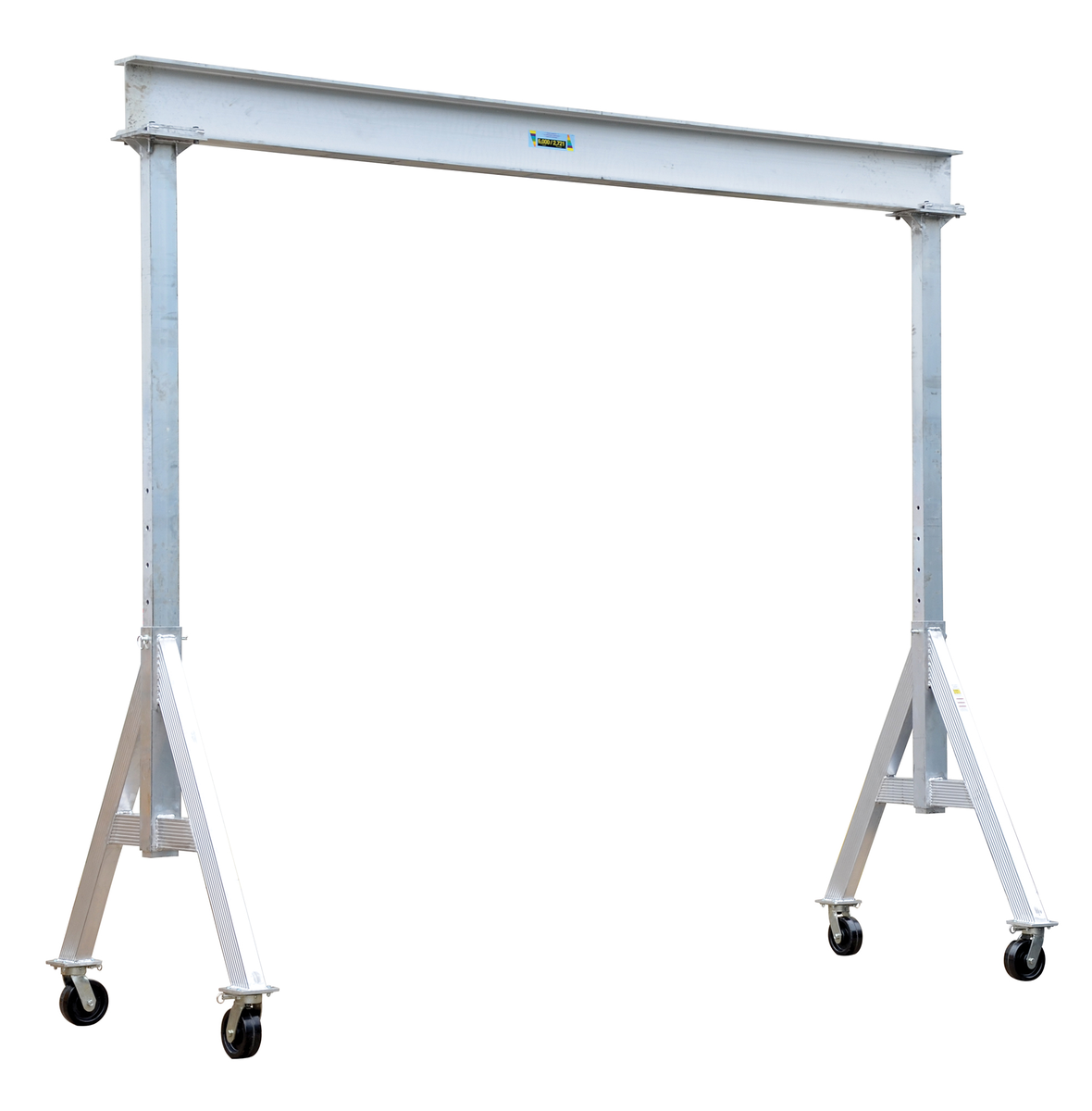

VESTIL AHA-6-8-12 Aluminium Adjustable Height Gantry Crane with Phenolic Caster, 8 x 12 ft, 6000 lb Capacity, Silver
96"
156"
Get it by Tuesday, Sep 1
€6,166.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Adjustable Height | Yes |
| Assembled Depth | 96" |
| Assembled Height | 156" |
| Assembled Width | 64 11/16" |
| Assembly | Assembly Required |
| Base Width | 64.688" |
| Beam Height | 10" |
| Capacity | 6000 lbs. |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Phenolic |
| Caster Top Plate | 4" x 4 1/2" |
| Caster Type | Swivel (4) Position Locking Casters |
| Caster Width | 3" |
| Color | Silver |
| Color Family | Silver |
| Features | Heavy Duty Welded Aluminum Construction For Long Lasting Use |
| Flange Width | 4.66" |
| Height | 156" |
| Height Adjustment | 6 In. |
| I Beam Length | 96" |
| Length | 96" |
| Material | Aluminum |
| Max. Clearance | 146" |
| Min. Clearance | 122" |
| No. Of Casters | 4 |
| Under I Beam Usable Height | 122" to 146" |
| Usable Beam Length | 72 1/4" |
| Usable Travel Distance | 72 1/4" |
| Width | 64.687" |
Shipping Info:
| Ship weight (kg) | 220.95 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 162.56 |
| Ship width (cm) | 162.56 |
| HS code | 8426190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Caster Material | Beam Height | Max. Overall Height | Wheel Material | Assembled Height | Assembled Width | Assembled Depth | Usable Beam Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHA-2-10-10 | Glass Filled Nylon | 6" | - | - | 128" | 53 3/4" | 120" | 96 1/4" | €4,784.39 | |
 |
AHA-2-10-12 | Glass Filled Nylon | 6" | - | - | 150" | 53 3/4" | 120" | 96 1/4" | €3,437.21 | |
 |
AHA-2-10-8 | Glass Filled Nylon | 6" | 8.7 ft. | Glass Filled Nylon | 104" | 53 3/4" | 120" | 96 1/4" | €5,674.10 | |
 |
AHA-2-12-10 | Glass Filled Nylon | 8" | - | - | 130" | 53 13/16" | 144" | 120 1/4" | €3,696.22 | |
 |
AHA-2-12-12 | Glass Filled Nylon | 8" | - | - | 152" | 53 13/16" | 144" | 120 1/4" | €3,879.98 | |
 |
AHA-2-12-8 | Glass Filled Nylon | 8" | - | - | 106" | 53 13/16" | 144" | 120 1/4" | €5,135.37 | |
 |
AHA-2-15-10 | Glass Filled Nylon | 8" | - | - | 130" | 53 13/16" | 180" | 156 1/4" | €7,353.89 |
