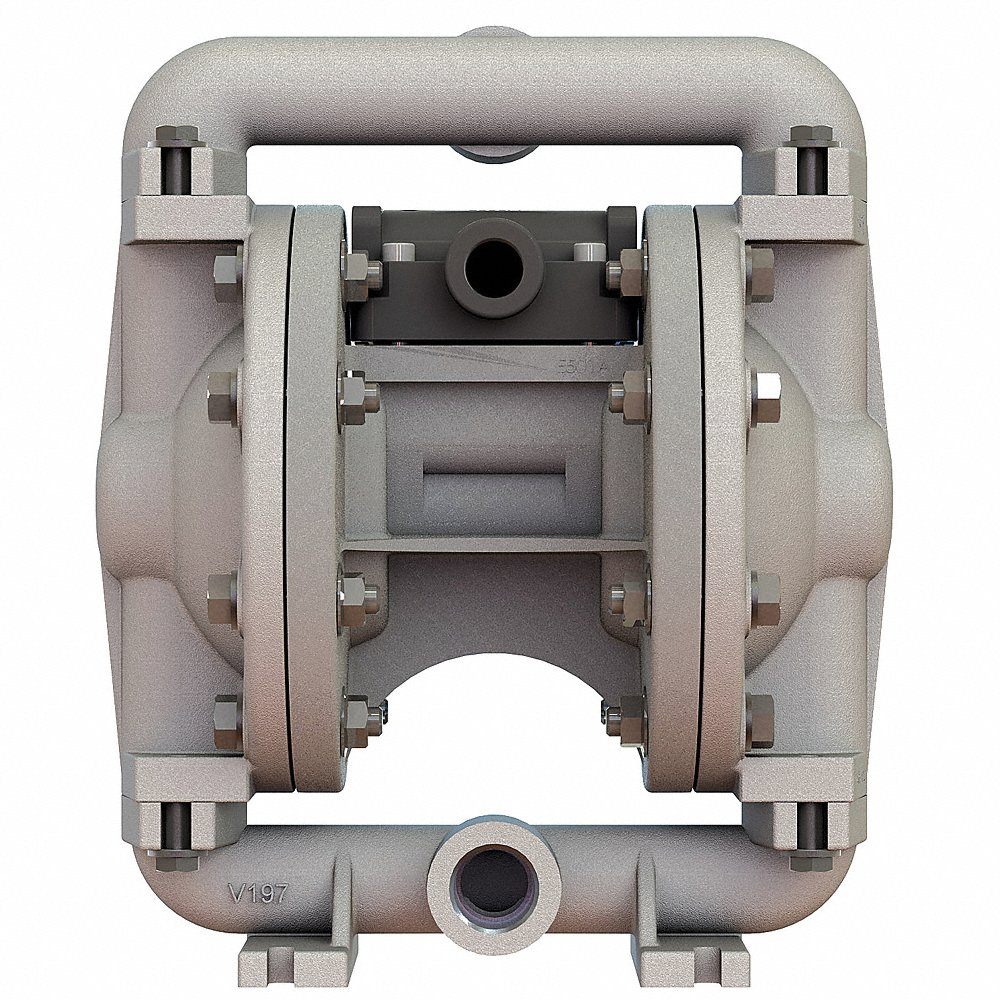

VERSA-MATIC E5SP5F559C-FP Air Operated Double Diaphragm Pump, Air, Stainless Steel, Bolt, Tri-Clamp, Ptfe
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€5,139.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 12 SCFM |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Center Section Material | Polypropylene |
| Check Seat Material | PTFE |
| Diaphragm Material | PTFE |
| Discharge Port Configuration | Top |
| Discharge Port Size | 1 1/2" |
| Discharge Port Type | Tri Clamp |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 12 GPM |
| Flow Rate @ 20 Psi | 8 GPM |
| Flow Rate @ 40 Psi | 9.5 GPM |
| Flow Rate @ 60 Psi | 11 GPM |
| Flow Rate @ 80 Psi | 11.5 GPM |
| Fluid Connection Size | 1 1/2" |
| Fluid Connection Type | Tri-Clamp |
| Housing Material | Stainless Steel |
| Manifold Connection | Single Port |
| Max. Discharge Pressure | 100 psi |
| Max. Feet Of Head | 231 ft. |
| Max. Flow Rate | 12 GPM |
| Max. Media Temp. | 220°F |
| Max. Solid Dia. | 0.06" |
| Media Discharge Connection Size | 1 1/2" |
| Media Discharge Connection Type | Tri Clamp |
| Media Intake Connection Size | 1 1/2" |
| Media Intake Connection Type | Tri Clamp |
| Media Intake Location | Bottom |
| Overall Height | 10 2/5" |
| Overall Length | 8.2" |
| Overall Width | 8 1/5" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Suction Port | 1 1/2" TRI Clamp |
| Suction Port Configuration | Bottom |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 7.61 |
| Ship height (cm) | 21.84 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 27.69 |
| Country of Origin | US |
