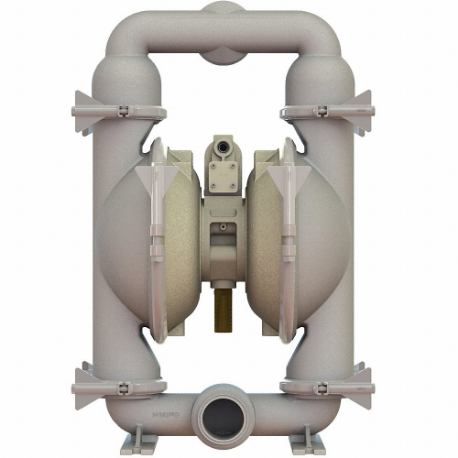

VERSA-MATIC E3SJ7X770C-FP-ATEX Air Operated Double Diaphragm Pump, Air, Stainless Steel, Clamp, Tri-Clamp, Hytrel, Top
Get it by Tuesday, Dec 23
10.00% off
€26,591.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 180 SCFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Center Section Material | Aluminum |
| Check Seat Material | Hytrel |
| Connection Size | 3" |
| Connection Type | Tri Clamp |
| Diaphragm Material | Hytrel |
| Discharge Port Configuration | Top |
| Discharge Port Size | 3" |
| Discharge Port Type | Tri Clamp |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 225 GPM |
| Flow Rate @ 20 Psi | 150 GPM |
| Flow Rate @ 40 Psi | 190 GPM |
| Flow Rate @ 60 Psi | 210 GPM |
| Flow Rate @ 80 Psi | 220 GPM |
| Fluid Connection Size | 3" |
| Fluid Connection Type | Tri-Clamp |
| Housing Material | Stainless Steel |
| Inlet Size | 1/2" |
| Inlet Type | NPT |
| Manifold Connection | Single Port |
| Manifold Connection Type | Single Port |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 234 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 0.38" |
| Media Discharge Connection Size | 3" |
| Media Discharge Connection Type | Tri Clamp |
| Media Discharge Location | Top |
| Media Intake Connection Size | 3" |
| Media Intake Connection Type | Tri Clamp |
| Overall Height | 32" |
| Overall Length | 21 1/2" |
| Overall Width | 17" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Clamps |
| Self Priming | Yes |
| Suction Port | 3" TRI Clamp |
| Suction Port Configuration | Bottom |
| Valve Material | Hytrel |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 85.05 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 54.61 |
| Ship width (cm) | 43.18 |
| Country of Origin | US |
