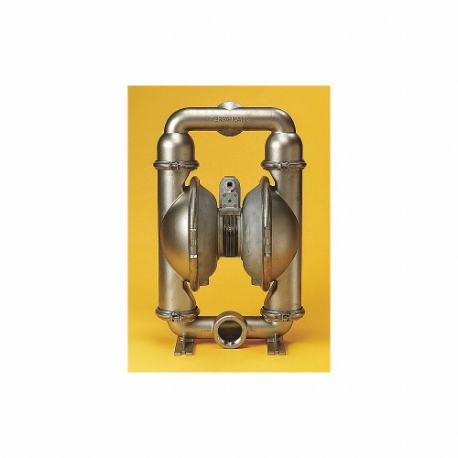

VERSA-MATIC E3SA5T5S0C-ATEX Double Diaphragm Pump, Air, 316 Stainless Steel, Clamp, 3 Inch Fluid Connection Size, Ptfe
Get it by Tuesday, Sep 1
13.00% off
€18,405.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 1/2" |
| Air Pressure | 125 psi |
| Body Material | Stainless Steel |
| Check Seat Material | Stainless Steel |
| Connection Size | 3" |
| Connection Type | Flanged |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Psi | 120 GPM |
| Flow Rate @ 100 Psi | 90 GPM |
| Flow Rate @ 120 Psi | 22 GPM |
| Flow Rate @ 15 Psi | 16 GPM |
| Flow Rate @ 20 Psi | 140 GPM |
| Flow Rate @ 30 Psi | 78 GPM |
| Flow Rate @ 40 Psi | 124 GPM |
| Flow Rate @ 50 Psi | 80 GPM |
| Flow Rate @ 60 Psi | 110 GPM |
| Flow Rate @ 70 Psi | 60 GPM |
| Flow Rate @ 80 Psi | 98 GPM |
| Flow Rate @ 90 Psi | 60 GPM |
| Fluid Discharge Connection Size | 3" |
| Fluid Discharge Connection Type | Flange |
| Fluid Intake Connection | 3" |
| Fluid Intake Connection Type | Flange |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 1/2" |
| Inlet Type | NPT |
| Inlet/outlet Size | 3" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Single Port |
| Max. Air Intake Pressure | 125 psi |
| Max. Dia. Solids | 3/8" |
| Max. Discharge Pressure | 125 psi |
| Max. Feet Of Head | 320 ft. |
| Max. Flow Rate | 273 GPM |
| Max. Head | 320 ft. |
| Max. Media Temp. | 220°F |
| Max. Operating Pressure | 125 psi |
| Max. Outlet Pressure | 125 psi |
| Media Discharge Connection Size | 3" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 3" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Center |
| Operation Type | Air Operated |
| Overall Height | 32.1" |
| Overall Length | 15" |
| Overall Width | 25.1" |
| Power Source | Air |
| Pump Assembly Type | Clamp |
| Pump Operation Type | Air |
| Self Priming Dry | 10 ft. |
| Self Priming Wet | 20 ft. |
| Series Family | E3 |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 79.2 |
| Ship height (cm) | 81.53 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 63.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Housing Material | Max. Media Temp. | Overall Width | Overall Height | Max. Solid Dia. | Check Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
22A593 | 46 GPM | Buna N | Aluminum | 180°F | 11.3" | 15.1" | 3/16" | Aluminum | €2,226.09 | |
 |
SPFG10SSS | 41 GPM | Santoprene | Stainless Steel | 180°F | 8 1/5" | 16 1/5" | 0.13" | Stainless Steel | €9,556.57 | RFQ
|
 |
HDB1 1/2,SGN8SS. | 122 GPM | Neoprene | Stainless Steel | 220°F | 15 1/2" | 13.9" | 1/4" | PTFE | €12,566.35 | |
 |
E1SJ7X759C-FP-ATEX | 49 GPM | Hytrel | Stainless Steel | 220°F | 9.1" | 14 1/2" | 0.13" | PTFE | €6,955.21 | |
|
E1SJ5F559C-FP-ATEX | 49 GPM | PTFE | Stainless Steel | 220°F | 9.1" | 14 1/2" | 0.13" | PTFE | €7,624.99 | |
|
E1SJ5T559C-FP-ATEX | 49 GPM | PTFE | Stainless Steel | 220°F | - | 14 1/2" | 0.13" | PTFE | €7,263.92 | |
|
E1SJYX559C-FP-ATEX | 49 GPM | Santoprene | Stainless Steel | 220°F | 9.1" | 14 1/2" | 0.13" | PTFE | €6,666.77 |
