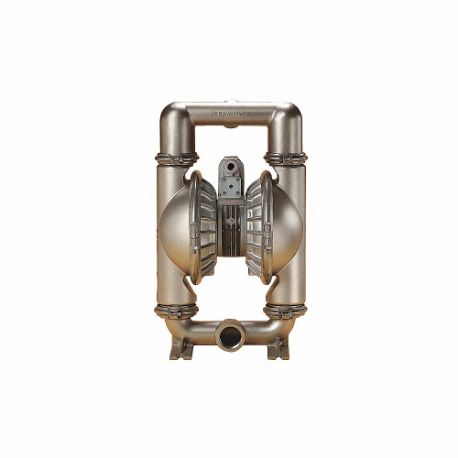

VERSA-MATIC E2SA5T5S0C-ATEX Double Diaphragm Pump, Air, 316 Stainless Steel, Clamp, 2 Inch Fluid Connection Size, Npt
Get it by Friday, Feb 20
5.00% off
€11,807.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption (maximum) | 140 SCFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 1/2" |
| Air Intake Pressure (maximum) | 125 psi |
| Body Material | Stainless Steel |
| Center Section Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 40%, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sulfuric Acid 10%, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 40%, Phosphoric Acid 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sulfuric Acid 10%, Sodium Hydroxide 10%, Water |
| Connection Size | 2" |
| Connection Type | NPT |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | 320 ft. |
| Flow Rate (maximum) | 160 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 146.5 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 82.1 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 108.5 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 124.1 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 136.4 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Intake Connection | 2" Npt |
| Fluid Outlet Connection | 2" Npt |
| For Use With Potable Systems | No |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 1/2" |
| Inlet Type | NPT |
| Inlet/outlet Size | 2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 1/4" |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 160 GPM |
| Max. Head | 320 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 1/4" |
| Media Discharge Connection Size | 2" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 2" |
| Media Intake Location | Bottom, Center |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 125 psi |
| Operation Type | Air Operated |
| Overall Height | 26.7" |
| Overall Length | 13 1/2" |
| Overall Width | 17.7" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Clamp |
| Pump Operation Type | Air |
| Rated Air Pressure | 125 psi |
| Self Priming | Yes |
| Self-priming Dry | 10 ft. |
| Self-priming Wet | 20 ft. |
| Series Family | E2 |
| Solid Diameter (maximum) | 1/4" |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 47.7 |
| Ship height (cm) | 67.82 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 44.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Outlet Pressure | Diaphragm Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SB1 SGN5SS. | Stainless Steel | 42 GPM | 125 psi | PTFE | PTFE | Stainless Steel | 1/4" | 220°F | €6,438.16 | |
 |
S05B1SBWANS000. | Stainless Steel | 15 GPM | 100 psi | Buna N | Buna N | Polyethylene | 0.13" | 190°F | €5,052.26 | |
 |
HDB1 1/2 SGN8A. | Aluminum | 122 GPM | 125 psi | Neoprene | PTFE | Stainless Steel | 1/4" | 220°F | €6,610.24 | |
|
HDB1 1/2 SS8A. | Aluminum | 122 GPM | 125 psi | Santoprene | Santoprene | Stainless Steel | 1/4" | 275°F | €5,468.12 | |
 |
S05B1A1WANS000. | Aluminum | 15 GPM | 100 psi | Santoprene | Santoprene | Polyethylene | 0.13" | 180°F | €2,181.66 | |
 |
S05B2P1TPNI000. | Polypropylene | 14 GPM | 100 psi | Santoprene | Santoprene | PTFE | 3/25" | 275°F | €1,060.65 | |
|
S05B2P2TPNI000. | Polypropylene | 14 GPM | 100 psi | PTFE | PTFE | PTFE | 3/25" | 220°F | €1,306.17 |
