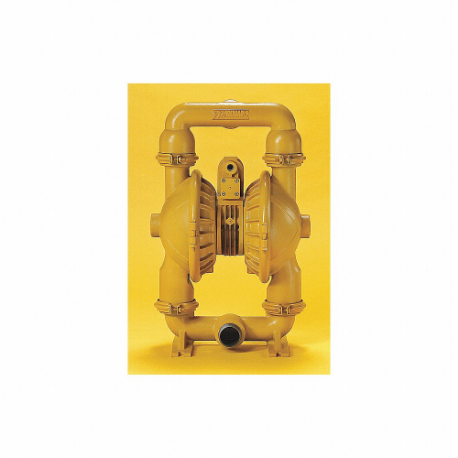

VERSA-MATIC E2AA5T5A0C-ATEX Double Diaphragm Pump, Air, Aluminum, Clamp, 2 Inch Fluid Connection Size, Npt, Ptfe, Ptfe
Get it by Friday, Dec 19
10.00% off
€4,641.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 140 SCFM |
| Air Consumption (maximum) | 140 SCFM |
| Air Inlet | 1/2" FNPT |
| Air Intake Connection Size | 1/2" |
| Air Intake Pressure (maximum) | 125 psi |
| Body Material | Aluminum |
| Center Section Material | Aluminum |
| Check Seat Material | Aluminum |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Connection Size | 2" |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | 320 ft. |
| Flow Rate (maximum) | 163 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 142 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 86.6 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 108.7 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 120.5 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 132.3 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Connection Inlet Type | FNPT |
| Fluid Intake Connection | 2" Fnpt |
| Fluid Outlet Connection | 2" Npt |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 1/4" |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 163 GPM |
| Max. Head | 320 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 11/25" |
| Media Discharge Connection Size | 2" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 2" |
| Media Intake Location | Bottom, Center |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 125 psi |
| Operation Type | Air Operated |
| Outlet Type | NPT |
| Overall Height | 26.7" |
| Overall Length | 13 1/2" |
| Overall Width | 17.7" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Clamp |
| Pump Operation Type | Air |
| Rated Air Pressure | 125 psi |
| Self Priming | Yes |
| Self-priming Dry | 10 ft. |
| Self-priming Wet | 20 ft. |
| Series Family | E2 |
| Solid Diameter (maximum) | 11/25" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 28.44 |
| Ship height (cm) | 67.82 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 44.96 |
| Country of Origin | US |
