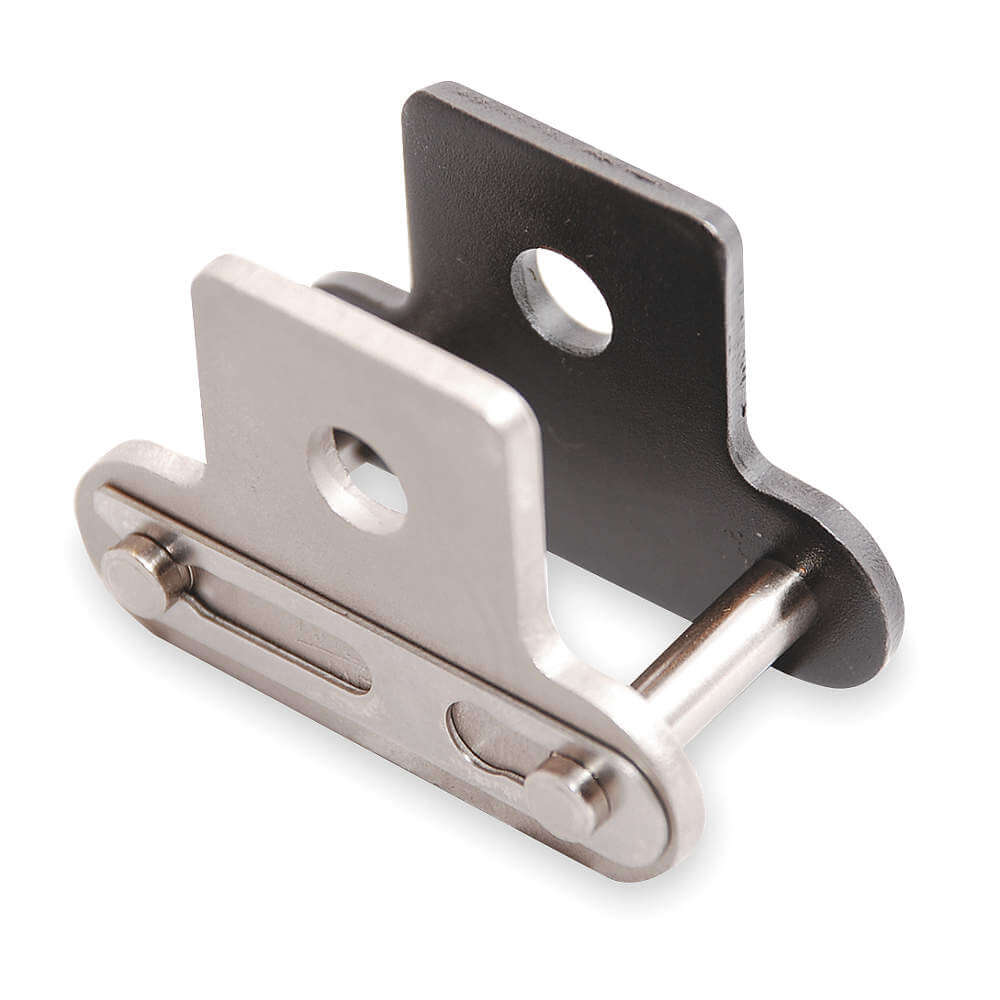

TSUBAKI C2040LSK1CL Connecting Roller Link Sk-1 Attachment
Item: AB4KRMModel: C2040LSK1CLCross Ref: 1YLC2
7 In Stock
Ships within 2 days via
13.00% off
€22.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | C2040L |
| Attachment Number | SK-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.38" |
| Centerline To Hole Center | 0.325" |
| Chain Number | C2040 |
| Chain Overall Width | 0.717" |
| Connecting End To Center Line | 0.38" |
| Display Qty | 1 |
| Extended Pin Dia. | 0.156" |
| Finish | Black Oxide |
| For Chain Style (combined) | Black Oxide Steel |
| Inside Pin Dia. | 0.156" |
| Link Type | Attachment |
| Lubrication | Self Lubricating |
| Material | Steel |
| Max. Allowable Load | 595 lbs. |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | 14°F |
| No. Of Tab Holes | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.705" |
| Pin Link Plate Thickness | 0.06" |
| Pin Type | Riveted |
| Pitch | 1" |
| Plate Height | 0.472" |
| Plate Thickness | 0.312" |
| Rivet End To Center Line | 0.325" |
| Roller Dia. | 0.312" , 19/64" |
| Roller Link Plate Height | 0.472" |
| Temp. | +14°F to +302°F |
| Tensile Strength | 3530 lbs.-in. |
| Width Between Roller Link Plates | 0.312" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 1.82 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Roller Dia. | Material | Ansi Chain Size | Plate Thickness | Plate Height | Chain Overall Width | Overall Width | Outside Pin Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HSA1CL | 0.469" | Steel | C2060H | 0.5" | 0.677" | 1.225" | 1.225" | 0.234" | 1 | €18.41 | |
 |
C2060HSA2CL | 0.469" | Steel | C2060H | 0.5" | 0.677" | 1.225" | 1.225" | 0.234" | 1 | €18.41 | |
 |
C2060HSK1CL | 0.469" | Steel | C2060H | 0.5" | 0.677" | 1.225" | 1.225" | 0.234" | 1 | €24.04 | |
 |
C2060HSK2CL | 0.469" | Steel | C2060H | 0.5" | 0.677" | 1.225" | 1.225" | 0.234" | 1 | €24.04 | |
 |
C2060HASSA1CL | 0.469" | Stainless Steel | C2060HAS | 0.5" | 0.677" | 1.225" | 1.225" | 0.234" | 1 | €72.10 | |
 |
C2060HASA2CL | 15/32" | Stainless Steel | C2060HAS | 0.5" | 0.677" | 1.225" | 1.225" | 0.234" | 1 | €95.76 | |
 |
C2060HASD1CL | 0.469" | Stainless Steel | C2060HAS | 0.5" | 0.677" | 1.225" | 1.225" | 0.234" | 1 | €62.87 |
