TSUBAKI 80A1RL Roller Link A-1 Attachment
Item: AB4KMDModel: 80A1RLCross Ref: 1YKN8
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Link |
| Ansi Chain Size | 80 |
| Attachment Number | A-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.758" |
| Centerline To Hole Center | 16/25" |
| Chain Link Overall Width | 1.398" |
| Chain No. | 80 |
| Chain Overall Width | 1.398" |
| Chain Roller Dia. | 5/8" |
| Connecting End To Center Line | 0.758" |
| Extended Pin Diameter | 0.312" |
| Finish | Plain |
| Industry Chain Pitch | 1" |
| Inside Pin Dia. | 0.312" |
| Link Type | Roller Attachment Link |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 2400 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.312" |
| Overall Width | 1.398" |
| Pin Contruction | Riveted Pin |
| Pin Length | 1.398" |
| Pin Link Plate Thickness | 1/8" |
| Pin Type | Riveted |
| Pitch | 1" |
| Plate Height | 0.949" |
| Plate Thickness | 5/8" |
| Rivet End To Center Line | 16/25" |
| Roller Chain Link Item | Roller Attachment Link |
| Roller Dia. | 5/8" |
| Roller Link Plate Height | 0.949" |
| Tensile Strength | 15400 lbs.-in. |
| Width Between Roller Link Plates | 5/8" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 3.55 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Finish | Pitch | Roller Dia. | Tensile Strength | Temp. Range | Inside Pin Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80LA1RL | Steel | 80L | Black Oxide | 1" | 5/8" | 17600 lbs.-in. | - | 0.312" | €60.25 | |
 |
80ASA1RL | Stainless Steel | 80AS | Plain | 1" | 5/8" | - | -40°F to +750°F | 0.312" | €98.30 | |
 |
80NPA1RL | Steel | 80NP | Nickel Plated | 1" | 5/8" | 15400 lbs.-in. | - | 0.312" | €43.80 | |
 |

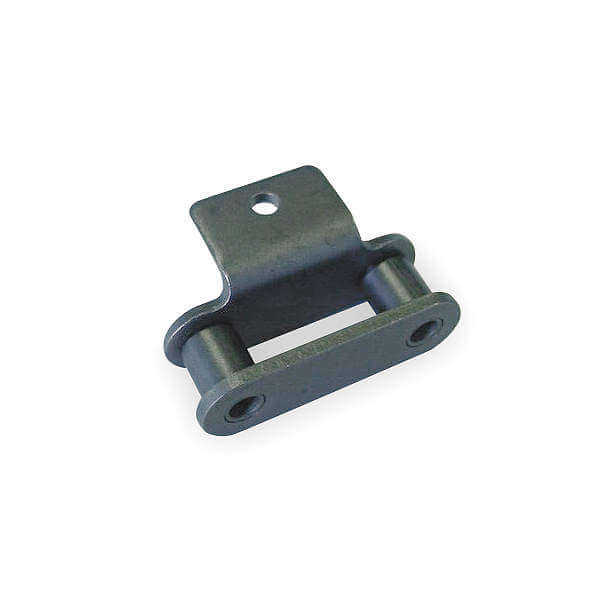

C2040A1RL | Steel | C2040 | Plain | 1" | 0.312" | 3750 lbs.-in. | +15°F to +300°F | 0.156" | €14.13 | |
 |

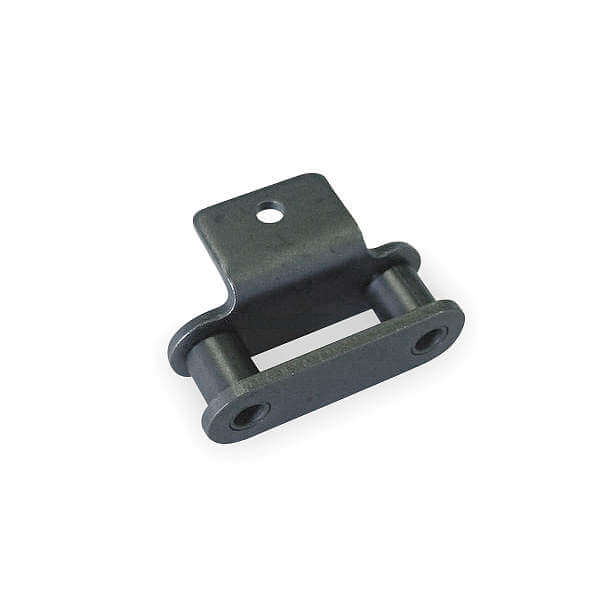

C2040LA1RL | Steel | C2040L | Black Oxide | 1" | 0.312" | 3530 lbs.-in. | - | 0.156" | €23.47 | |
 |
C2040ASA1RL | Stainless Steel | C2040AS | Plain | 1" | 0.312" | - | -40°F to +750°F | 0.156" | €55.93 | |
|
C2042ASA1RL | Stainless Steel | C2042AS | Plain | 1" | - | - | -40°F to +750°F | 0.156" | €70.70 |
