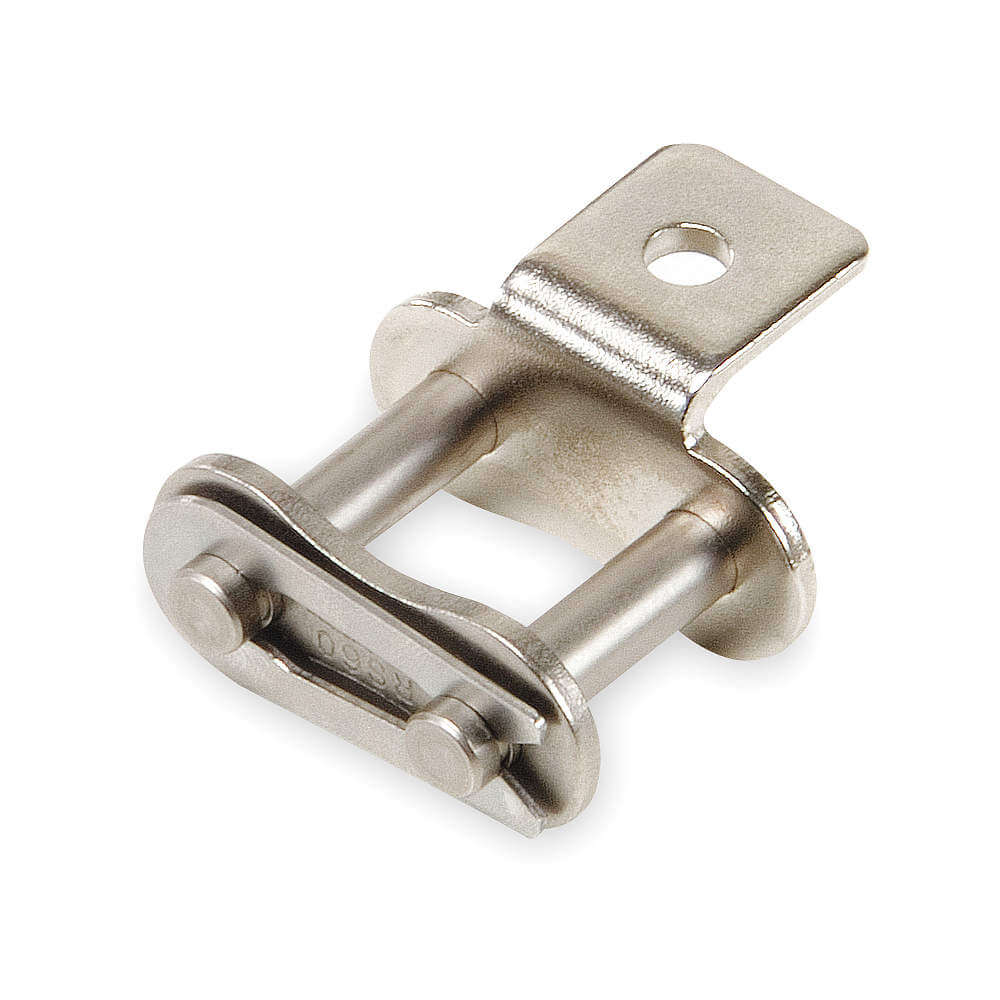

TSUBAKI 40NPA1CL Attachment Link, For Nickel-Plated Steel Roller Chains, A-1, 40, Single Strand, Steel
Item: AB4KEKModel: 40NPA1CLCross Ref: 1YJU5
7 In Stock
Ships within 2 days via
13.00% off
€55.93 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | 40NP |
| Attachment Number | A-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.392" |
| Centerline To Hole Center | 0.325" |
| Chain Link Overall Width | 0.717" |
| Chain Number | 40 |
| Chain Overall Width | 0.717" |
| Chain Roller Dia. | 0.312" |
| Connecting End To Center Line | 0.392" |
| Extended Pin Dia. | 0.156" |
| Finish | Nickel Plated |
| Industry Chain Pitch | 1/2" |
| Inside Pin Dia. | 0.156" |
| Length | 1/2" |
| Link Type | Attachment Link |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 595 lbs. |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | 14°F |
| No. Of Strands | 1 |
| No. Of Tab Holes | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.717" |
| Pin Link Plate Thickness | 0.06" |
| Pin Type | Riveted |
| Pitch | 1/2" |
| Plate Height | 0.472" |
| Plate Thickness | 0.312" |
| Rivet End To Center Line | 0.325" |
| Roller Chain Link Item | Attachment Link |
| Roller Dia. | 0.312" , 19/64" |
| Roller Link Plate Height | 0.472" |
| Tensile Strength | 3750 lbs.-in. |
| Width Between Roller Link Plates | 0.312" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.82 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Plate Thickness | Plate Height | Chain Overall Width | Ansi Chain Size | Overall Width | Roller Dia. | Roller Link Plate Height | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HLSA1CL | Steel | 1/2" | 0.677" | 1.225" | C2060HL | 1.225" | 15/32" | 0.677" | 1 | €33.88 | |
 |
C2060HLSA2CL | Steel | 0.5" | 0.677" | 1.225" | C2060HL | 1.225" | 15/32" | 0.677" | 1 | €33.88 | |
 |
C2060HLSK1CL | Steel | 0.5" | 0.677" | 1.225" | C2060HL | 1.225" | 15/32" | 0.677" | 1 | €46.73 | |
 |
C2060HLSK2CL | Steel | 0.5" | 0.677" | 1.225" | C2060HL | 1.225" | 15/32" | 0.677" | 1 | €46.73 | |
 |
C2060HNEPCL | Steel | 1/8" | 43/64" | 1 7/32" | C2060H | 1.225" | 15/32" | 0.677" | 1 | €25.82 | |
 |
C2080HPCL | Steel | 1/8" | 29/32" | 1 11/32" | C2080H | 1.341" | - | 0.906" | 1 | €50.63 | |
 |
C2080HLA1CL | Steel | 5/8" | 0.906" | 1.543" | C2080HL | 1.543" | 5/8" | 0.906" | 1 | €58.97 |
