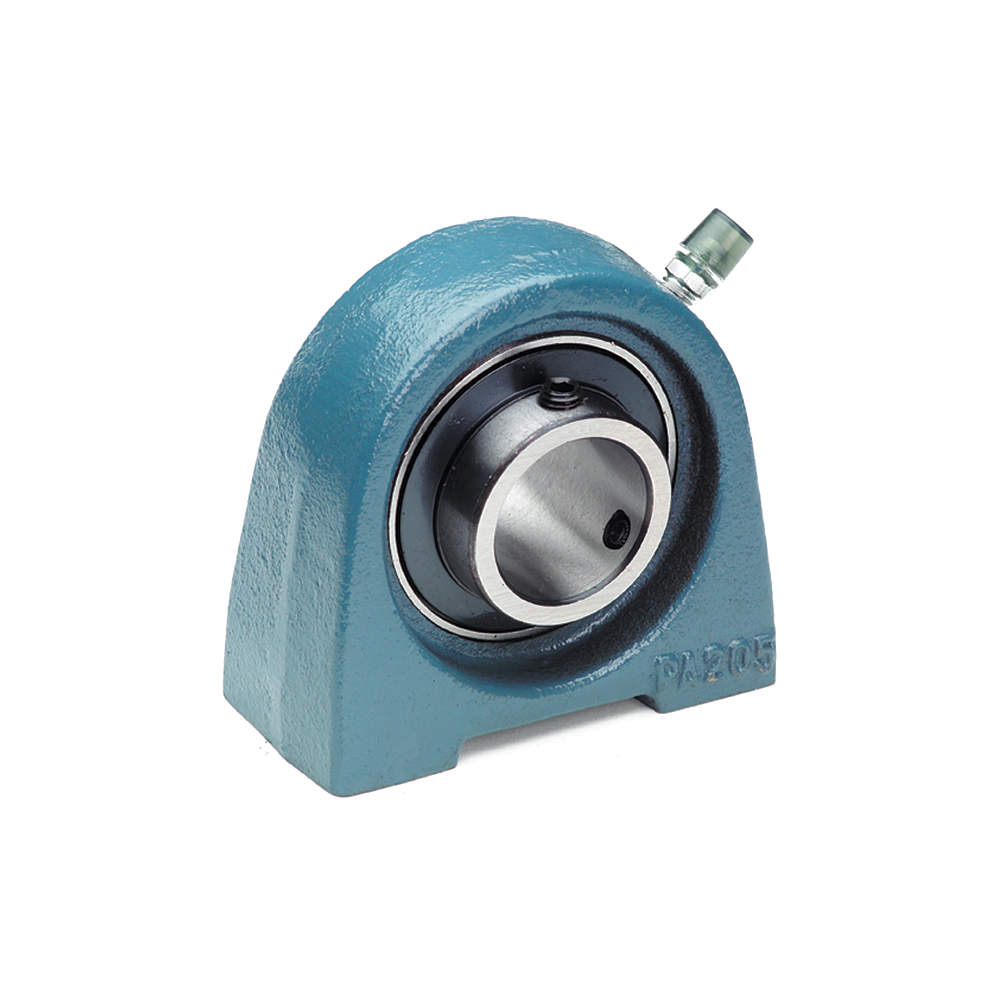

TRITAN UCPA205-16A Pillow Block Bearing Ball 1 Bore
Item: AH7KCCModel: UCPA205-16ACross Ref: 36UZ49
7 In Stock
1"
3147.33 lbf.
Ships within 2 days via
13.00% off
€53.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pillow Block Bearing |
| Base Height | 0.511" |
| Base Width | 1.417" |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy, Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 3/8" |
| Bore Dia. | 1" |
| Bore Dia. Tolerance | -0.0007" to +0.0007" |
| Bore Type | Cylindrical |
| Center Height | 1 19/64" |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 3147 lbs. |
| Dynamic Radial Load Capacity | 3147 lbf. |
| Expansion Type | Fixed |
| Features | Anti-Rotation Device, Dual Heavy-Duty Slinger Type Contact Seals, Grease Fitting For Adding Lubricant, One-Piece Cast Iron Housing, Solid Base, Standard Duty Unit, Eccentric Locking Collar, Triple Lip Seals Available On Request, Wide Inner Ring Bearing |
| Finish | Painted |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Grease |
| Lubrication | Shell Alvania RL2 Or Nlgi #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Max. Temp. | 250°F |
| Min. Temp. | -40°F |
| Mount Hole Center To Center Length | 2" |
| Mounting Bolt Size | 3/8"-16 |
| Mounting Hole Center To Center | 50.8 mm |
| Mounting Surface To Shaft Center | Two Bolt Base |
| Mounting Surface To Shaft Center Height | 1 19/64" |
| Mounting Type | Bolt Through |
| No. Of Bolts | 2 |
| No. Of Mounting Holes | 2 |
| Overall Height | 2.755" |
| Overall Length | 2.755" |
| Overall Width | 1.342" |
| Resistance Properties | Corrosion Resistant, Rust Resistant, Wear Resistant |
| Seal Material | Synthetic Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 1765 lbs. |
| Static Radial Load Capacity | 1764 lbf. |
| System Of Measurement | Imperial |
| Temp. | -40°F to +250°F |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 7 |
| Ship length (cm) | 7 |
| Ship width (cm) | 3.41 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Dynamic Load Capacity | Overall Width | Static Load Capacity | Overall Height | Base Width | Bolt Size | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UCP201-8 (47MM) | 1/2" | 2877 lbs. | 1.22" | 1494 lbs. | 2 11/25" | 1.496" | 3/8" | Painted | €48.97 | |
| UCP202-10 (47MM) | 5/8" | 2877 lbs. | 1.22" | 1494 lbs. | 2 11/25" | 1.496" | 3/8" | Painted | €48.10 | |
| UCP202-10S (40MM) | 5/8" | 2877 lbs. | 1.078" | 1494 lbs. | 2.244" | 1.496" | 3/8" | Painted | €51.08 | |
| UCP204-12 | 3/4" | 2878 lbs. | 1.22" | 1495 lbs. | 2.559" | 1.496" | 3/8" | Painted | €54.98 | |
| UCP204-20MM | 20 mm | 2878 lbs. | 31 mm | 1495 lbs. | 65 mm | 38 mm | 3/8" | - | €44.56 | |
| UCP205-14 | 7/8" | 3147 lbs. | 1.342" | 1765 lbs. | 2.795" | 1.496" | 3/8" | Painted | €53.97 | |
| UCP205-15 | 0.938" | 3147 lbs. | 1.342" | 1765 lbs. | 2.795" | 1.496" | 3/8" | Painted | €52.16 |
