TIMKEN MSE800BXHSATL Split Cylindrical Roller Bearing, 8 Inch Shaft Size
8"
Aluminium Triple Labyrinth
Split Cylindrical Expansion
Get it by Monday, Aug 17
€63,103.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Bearing |
| Actual Bolt Center To Center | 20" |
| Axial Load Capacity | 17985 lbs. |
| Base To Center Height | 12" |
| Bearing Material | Cast Iron |
| Bore Dia. | 8" |
| Cage Material | Machined Brass |
| Dynamic Load Capacity | 227732 lbs. |
| Expansion/non-expansion | Expansion |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | MSE800BX |
| Length Thru Bore | 6.142" |
| Max. Speed | 960 RPM |
| Mounted | No |
| Mounting Bolts | 30 mm |
| Mounting Method | Clamp Collar |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Center To Center | 20" |
| Outside Dia. | 14 1/2" |
| Relubricatable | Yes |
| Rolling Element | Cylindrical Roller Bearing |
| Seal Material | Aluminum |
| Seal Type | Triple Ring Labyrinth |
| Series | Medium Series |
| Static Load Capacity | 340810 lbs. |
| System Of Measurement | Imperial |
| Type | Expansion |
| Width | 6.142" |
Shipping Info:
| Ship weight (kg) | 268.79 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Bore Dia. | Seal Type | Shaft Size | Housing Width | Bolt Size | Static Load Rating | Type | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

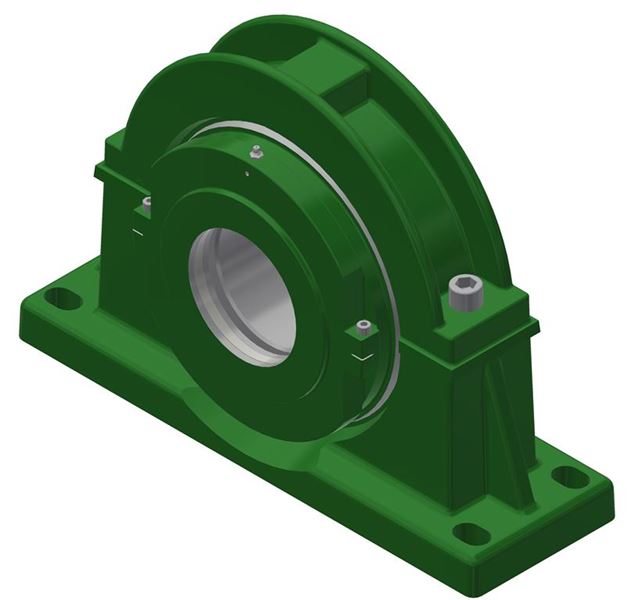

| MSE512BXHSHTPS | - | High Temperature Packing | 5 3/4" | 8" | 4 X M24 | 232453 lbf. | - | - | €15,191.14 | |
| MSM190BXHSFS | - | Felt Type | 190 mm | 9.3" | 4 X M30 | 340810 lbf. | - | - | €49,308.49 | |
| MSE203BRHSFS | - | Felt Type | 2 3/16" | 4.9" | 2 X M20 | 42714 lbf. | - | - | €2,548.45 | |
| MSE403BXHSATL | - | Aluminium Triple Labyrinth | 4 3/16" | 6 2/5" | 4 X M24 | 133087 lbf. | - | - | €8,106.38 | |
| MSM190BXHSKPS | - | Kevlar Packing Seal | 190 mm | 9.3" | 4 X M30 | 340810 lbf. | - | - | €50,258.53 | |
| MSE215BRHSATL | 2 15/16" | - | - | - | - | - | Retained | 58001 lbs. | €4,629.67 | |
| MSE404BRHSFS | - | Felt Type | 4 1/4" | 6.3" | 4 X M24 | 133087 lbf. | - | - | €7,552.13 |
