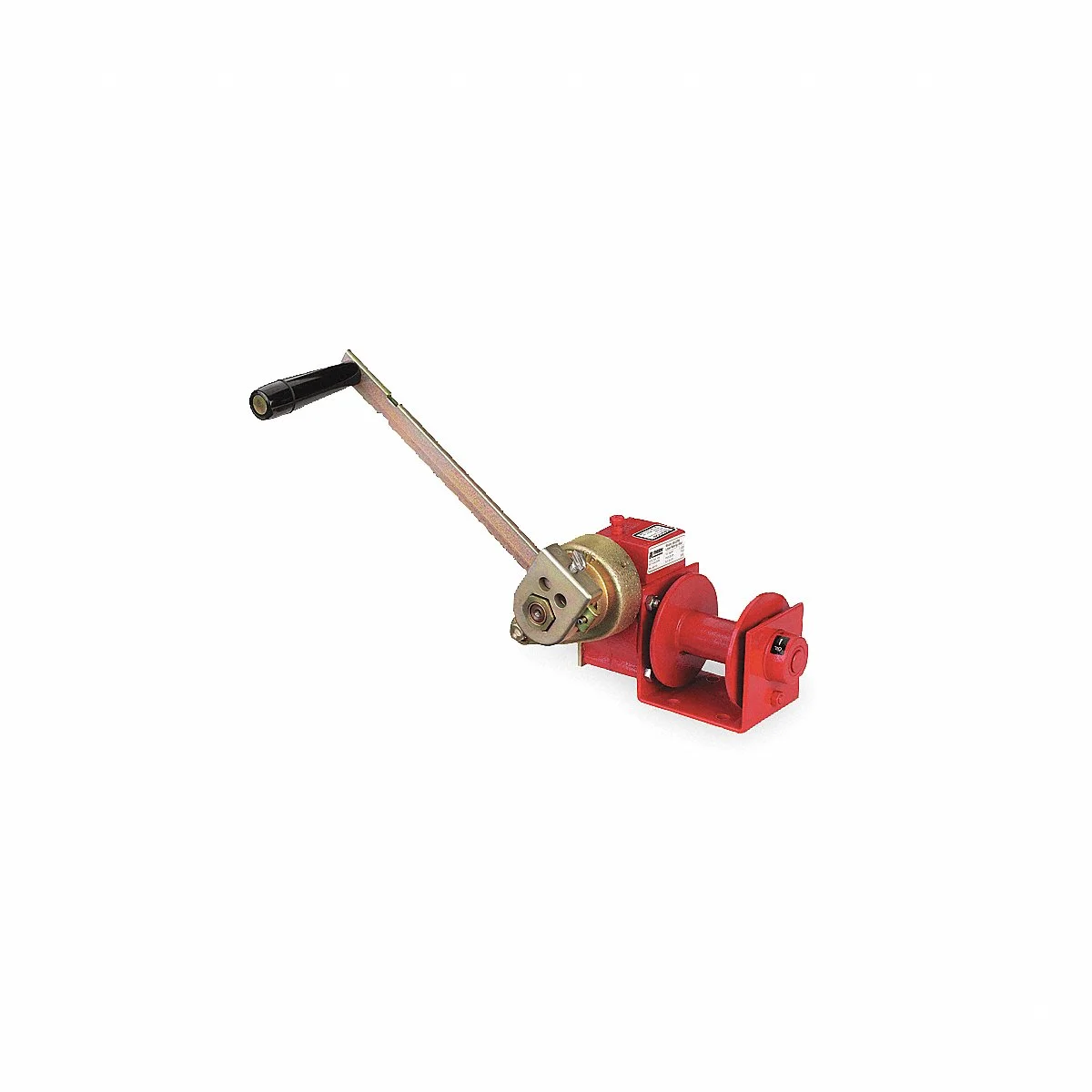

THERN 4622PB Worm Gear Hand Winch, Enclosed Gearing, with Brake, 1000 lbs. Capacity
Get it by Monday, Aug 17
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€941.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Winch |
| 1st Layer Load Capacity | 1000 lbs. |
| 1st Layer Load Capacity | 1000 lb. |
| Application | For Lifting |
| Body Finish | Enamel |
| Body Material | Steel |
| Body Type | Enclosed Gears |
| Brake | Brake Included |
| Clutch | No Clutch |
| Clutch Type | No Clutch |
| Color | Red |
| Compatible Line | Synthetic Rope, Wire Rope |
| Control Type | Manual Handle |
| Drum Capacity For 3/16 In. Cable | 61 ft. |
| Drum Capacity For 3/16" Cable | 61 ft. |
| Drum Capacity Per Line Dia. | 140 ft. per 1/8", 61 ft. per 3/6" |
| Drum Capacity Per Strap Width | Not Applicable |
| Frame Color | Red |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Fully Wound Load Capacity | 500 lbs. |
| Gear Ratio | 15:1 |
| Gear Type | Worm |
| Handle Attachment Type | Removable |
| Handle Length | 8 1/2" |
| Handle Mount Location | Side |
| Included Components | Mechanical Brake |
| Max. Cable Dia. | 1/5" |
| Max. Cable Length | 140 ft. |
| Max. Line Dia. | 1/5" |
| Max. Pulling Capacity | 1000 lbs. |
| Max. Strap Length | Not Applicable |
| Max. Strap Width | Not Applicable |
| No. Of Gear Settings | 1 |
| Operation | Lifting, Pulling |
| Overall Height | 15 19/32" |
| Overall Length | 7 1/2" |
| Overall Width | 11 13/16" |
| Product Datasheet | thern-4622pb.pdf |
| Recommended Line Dia. | 1/5" |
| Winch Type | Lifting, Pulling |
Shipping Info:
| Ship weight (kg) | 9.23 |
| Ship height (cm) | 39.6 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 30 |
| HS code | 8425390100 |
| Country of Origin | US |
Product Details:
- Brake Included (Yes)
- Drum Capacity for 1/8 In. Cable (140 ft.)
Documentation:
Product Variants
| Product | Model | Handle Length | Overall Height | Overall Width | 1st Layer Load Capacity | Body Finish | Operation | Control Type | Gear Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
482B | 18 3/8" | 29 3/16" | 21" | 4000 lbs. | Enamel | Lifting, Pulling | Manual Handle | 26:1 | €4,503.59 | |
 |
4WM2 | 10 1/2" | 17 5/16" | 15 9/16" | 2000 lbs. | Enamel | Lifting, Pulling | Manual Handle | 32:1 | €1,578.94 | |
 |
462 | 9" | 13 3/8" | 10 1/4" | 1000 lbs. | Corrosion Resistant Paint | Lifting & Pulling, Pulling | Manual Handle | 15:1 | €582.50 | |
 |
472 | 7 1/4" | 13 3/8" | 12" | 2000 lbs. | Corrosion Resistant Paint | Lifting & Pulling, Pulling | Manual Handle | 24:1 | €1,142.96 | |
 |
482 | 12 1/4" | 22 5/8" | 19" | 4000 lbs. | Corrosion Resistant Paint | Lifting & Pulling, Pulling | Manual Handle | 26:1 | €2,924.33 | |
 |
465 | - | - | - | - | - | - | - | - | €290.71 | RFQ
|
 |
2W40-L | - | - | - | - | - | - | - | - | €1,900.80 | RFQ
|
