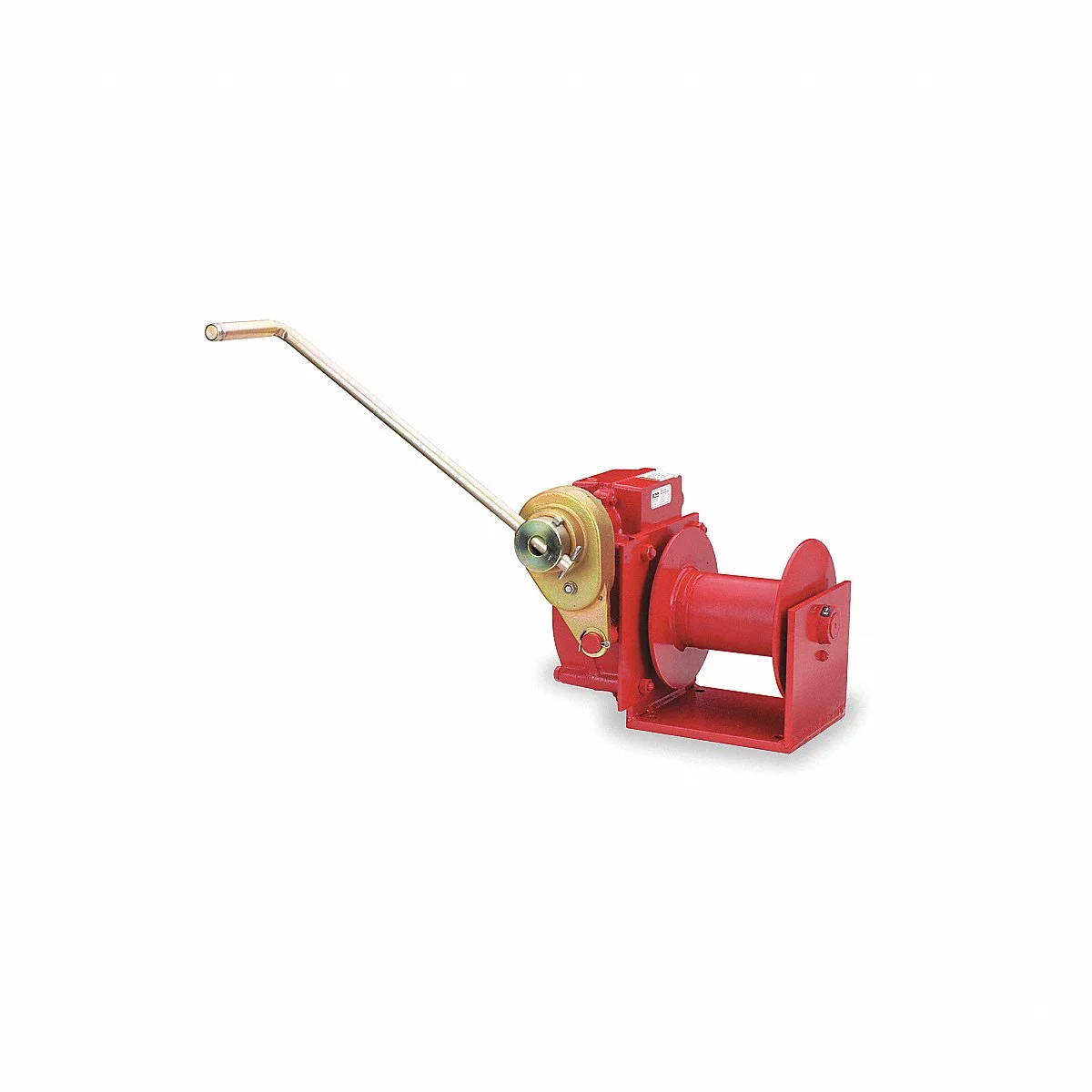

THERN 482B Worm Gear Hand Winch With Brake, 4000 Lbs.
Get it by Tuesday, Dec 23
10.00% off
€4,914.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Winch |
| 1st Layer Load Capacity | 4000 lbs. |
| 1st Layer Load Capacity | 4000 lb. |
| Application | For Lifting |
| Body Finish | Enamel |
| Body Material | Steel |
| Body Type | Enclosed Gears |
| Brake | Brake Included |
| Clutch | No Clutch |
| Clutch Type | No Clutch |
| Color | Red |
| Compatible Line | Synthetic Rope, Wire Rope |
| Control Type | Manual Handle |
| Drum Capacity For 1/4 In. Cable | 300 ft. |
| Drum Capacity For 5/16 In. Cable | 200 ft. |
| Drum Capacity Per Line Diameter | 200 ft. per 5/16", 300 ft. per 1/4" |
| Drum Capacity Per Strap Width | Not Applicable |
| Frame Color | Red |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Fully Wound Load Capacity | 2500 lbs. |
| Gear Ratio | 26:1 |
| Gear Type | Worm |
| Handle Attachment Type | Removable |
| Handle Length | 18 3/8" |
| Handle Mount Location | Side |
| Included Components | Mechanical Brake |
| Max. Strap Length | Not Applicable |
| Max. Strap Width | Not Applicable |
| Maximum Cable Diameter | 2/5" |
| Maximum Cable Length | 140 ft. |
| Maximum Line Diameter | 2/5" |
| Maximum Pulling Capacity | 4000 lbs. |
| Number Of Gear Settings | 1 |
| Operation | Lifting, Pulling |
| Overall Height | 29 3/16" |
| Overall Length | 14" |
| Overall Width | 21" |
| Product Datasheet | thern-4622pb.pdf |
| Recommended Line Dia. | 2/5" |
| Winch Type | Lifting, Pulling |
Shipping Info:
| Ship weight (kg) | 49.5 |
| Ship height (cm) | 74.14 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 53.34 |
| HS code | 8425190000 |
| Country of Origin | US |
Product Details:
Thern 482B hand winch is used in rail yards and manufacturing & marine industries to lower and lift heavy loads with minimal effort. This hand winch has multiple configurations for accurate positioning.
Features:
- This hand winch features steel gear covers to protect gears and prevent user fatigue.
- It has automatic brakes with B-suffixes to provide positive load control and spring-loaded ratchets for positive engagement.
- This hand winch is equipped with adjustable handles to change the force required for moving the load.
- It offers a paint finish along with trivalent zinc plating to resist corrosion on exposed surfaces.
- This worm gear hand winch has a quick disconnect anchor for attaching / removing the wire rope instantly that comes with a swaged ball fitting.
- It further features an enclosed oil bath for continuous lubrication.
- This Thern winch unit comes with bronze and radial ball bearings for efficient and smooth operation.
- It has a cast aluminium gearbox for durability and heat resistance.
Documentation:
Product Variants
| Product | Model | Operation | Gear Ratio | Brake | Body Type | 1st Layer Load Capacity | Fully Wound Load Capacity | Overall Height | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4622PB | Lifting, Pulling | 15:1 | Brake Included | Enclosed Gears | 1000 lbs. | 500 lbs. | 15 19/32" | 7 1/2" | €1,143.37 | |
 |
4WM2 | Lifting, Pulling | 32:1 | Brake Included | Enclosed Gears | 2000 lbs. | 1200 lbs. | 17 5/16" | 13 1/2" | €1,925.44 | |
 |
462 | Lifting & Pulling, Pulling | 15:1 | Brake Not Included | Enclosed Gears | 1000 lbs. | - | 13 3/8" | 6 1/2" | €708.36 | |
 |
472 | Lifting & Pulling, Pulling | 24:1 | Brake Not Included | Enclosed Gears | 2000 lbs. | - | 13 3/8" | 10" | €1,418.65 | |
|
482 | Lifting & Pulling, Pulling | 26:1 | Brake Included | - | 4000 lbs. | - | 22 5/8" | 14" | €3,616.53 | |
 |
465 | - | - | - | - | - | - | - | - | €290.71 | RFQ
|
 |
2W40-L | - | - | - | - | - | - | - | - | €1,900.80 | RFQ
|
