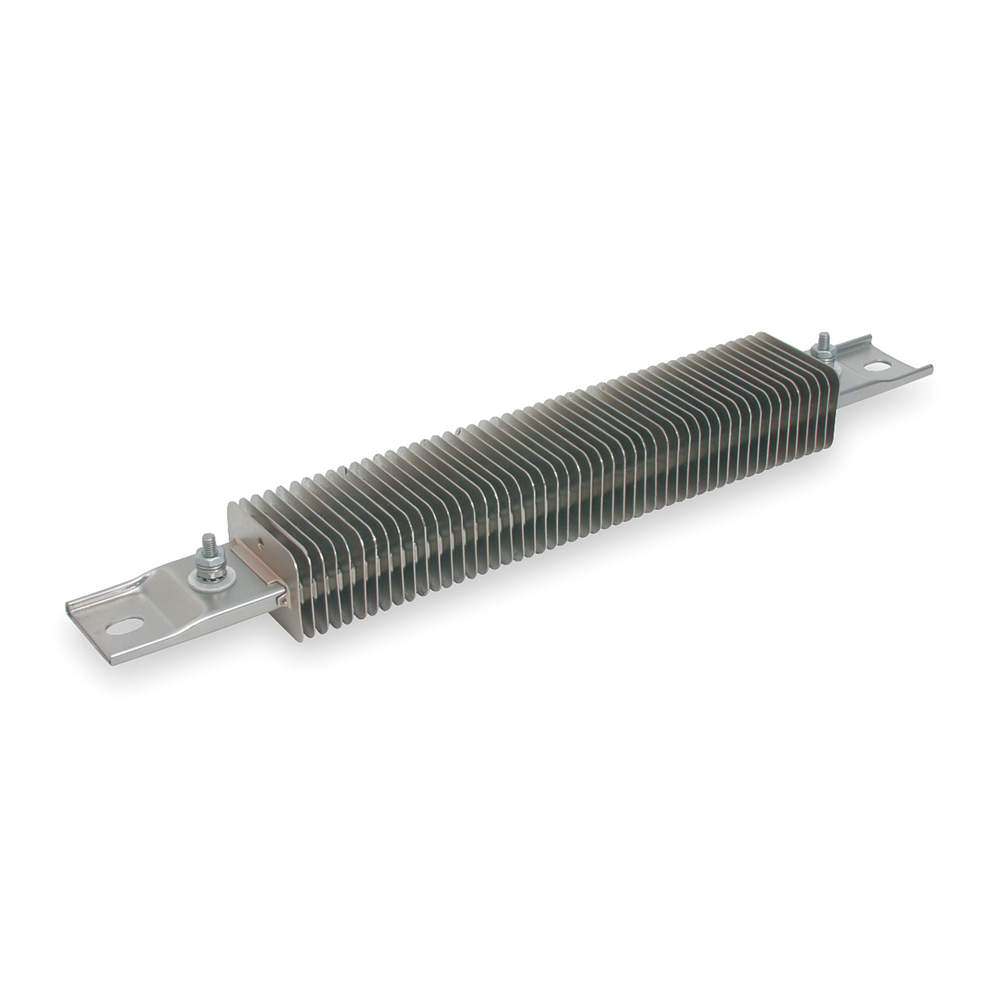

TEMPCO CSF00123 Finned Strip Heater, 10 1/2 in Lg, 9 1/2 in Mounting, 725 W, 120 VAC, Each End Terminal
Item: AC3XHNModel: CSF00123Cross Ref: 2XEE8
7 In Stock
45 W/sq. in.
10 1/2"
Ships within 2 days via
10.00% off
€79.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Finned Strip Heater |
| Element Width | 1-1/2" |
| Element Width | 1 1/2" |
| Finish | Nickel Plated |
| H X W Across Fins | 1-3/8 x 2" |
| H X W Across Fins | 1 3/8" x 2" |
| Includes | Mounting Tabs |
| Material | Nickel Plated Steel |
| Max. Sheath Temp. | 1200 Degrees F |
| Max. Sheath Temp. | 1200°F |
| Mounting Dimension | 9 1/2" |
| Mounting Type | Surface Mount |
| Overall Length | 10 1/2" |
| Phase | 1 |
| Screw Size | 10-32 |
| Screw Thread Size | #10-32 |
| Sheath Material | 304 Stainless Steel |
| Slotted Hole Length | 1/2" |
| Slotted Hole Width | 5/16" |
| Standards | Ul Recognized |
| Terminal Type | Each End |
| Terminals | Each End |
| Voltage | 120V AC |
| Watt Density | 50 W/sq. in. |
| Wattage | 725 W |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 3.49 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 5.08 |
| HS code | 8516808000 |
| Country of Origin | US |
Product Details:
- Slotted Hole Length (1/2")
- Slotted Hole Width (5/16")
Product Variants
| Model | Voltage | Terminals | Overall Length | Mounting Dimension | Watt Density | Wattage | Phase | Element Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CSF00530 | 120V AC | Each End | 25 1/2" | 24 1/2" | 22 W/sq. in. | 1500 W | 1 | 1 1/2" | €196.43 | |
| CSF00531 | 240V AC | Each End | 25 1/2" | 24 1/2" | 22 W/sq. in. | 1500 W | 1 | 1 1/2" | €199.97 | |
| CSF00165 | 240V AC | Each End | 25 1/2" | 24 1/2" | 35 W/sq. in. | 2400 W | 1 | 1 1/2" | €200.27 | |
| CSF00167 | 240V AC | Each End | 26 3/4" | 25 3/4" | 34 W/sq. in. | - | 1 | 1 1/2" | €208.49 | |
| CSF00532 | 240V AC | Each End | 30 1/2" | 29 1/2" | 21 W/sq. in. | 1800 W | 1 | 1 1/2" | €239.71 | |
| CSF00533 | 240V AC | Each End | 33 1/2" | 32 1/2" | 21 W/sq. in. | 2100 W | 1 | 1 1/2" | €259.82 | |
| CSF00178 | 240V AC | Each End | 33 1/2" | 32 1/2" | 32 W/sq. in. | 3150 W | 1 | 1 1/2" | €259.94 |
