BROWNING 2AKH Series Cast Iron Sheaves, 2 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2| Style | Model | Bore Dia. | Type | Pitch Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Bore Type | Pitch Dia. 3l | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1032622 | - | Type 3 | 7 1/5" | 7" | - | Finished | 6.66" | - | €687.29 | |
| B | 1032846 | - | Type 3 | 11 1/5" | 11" | 10.66" | Finished | 10.66" | 11/32" | €487.00 | |
| C | 1032341 | - | Type 2 | - | 4 1/5" | 3.86" | Finished | 3.86" | 15/32" | €427.16 | |
| D | 3195401 | 1 1/8" | Type 3 | 5 1/5" | 5" | 4.66" | Finished | 4.66" | 15/32" | €361.89 | |
| E | 3195526 | 1 1/8" | Type 3 | 8 1/5" | 8" | 7.66" | Finished | 7.66" | 11/32" | €638.55 | |

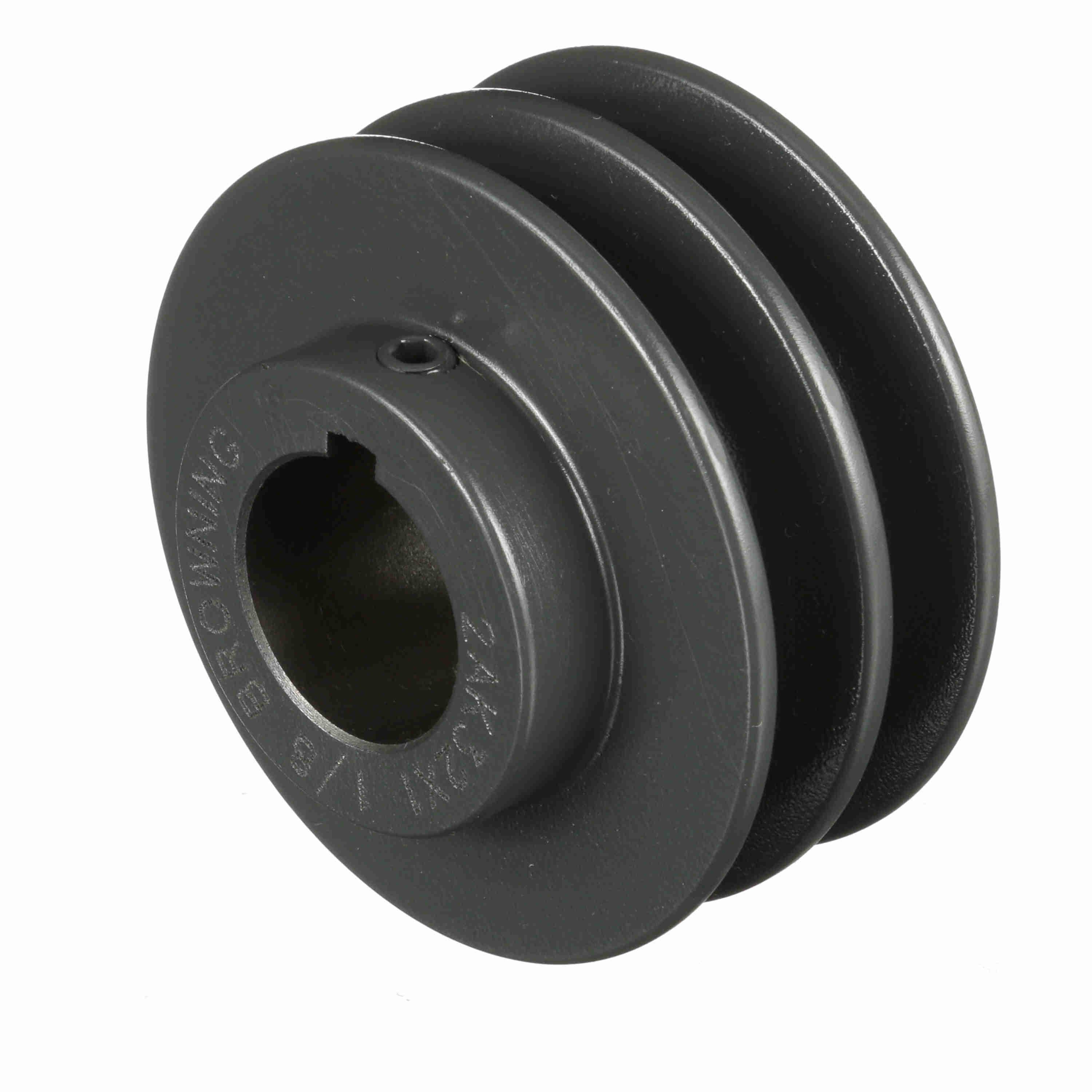

| F | 1032101 | 1 1/8" | Type 1 | 3 1/5" | 3" | 2.66" | Finished | 2.66" | 15/32" | €281.18 | |
| G | 1032218 | 1 1/8" | Type 2 | 3.7" | - | - | Finished | 3 4/25" | 15/32" | €358.11 | |
| H | 1032267 | 1 1/8" | Type 2 | 3.9" | 3.7" | 3 9/25" | Finished | 3 9/25" | 15/32" | €328.36 | |
| I | 3195435 | 1 3/8" | Type 3 | 5 2/5" | - | - | Finished | 4.86" | 15/32" | €378.61 | |
| J | 3195419 | 1 3/8" | Type 3 | 5 1/5" | 5" | 4.66" | Finished | 4.66" | 15/32" | €372.12 | |
| K | 3195567 | 1 3/8" | Type 1 | 11 1/5" | 11" | 10.66" | Finished | 10.66" | 11/32" | €778.68 | |
| L | 3195393 | 1 3/8" | Type 2 | 4.9" | 4.7" | 4 9/25" | Finished | 4 9/25" | 15/32" | €490.97 | |
| M | 3195377 | 1 3/8" | Type 2 | 4.7" | 4 1/2" | 4 4/25" | Finished | 4 4/25" | 15/32" | €368.18 | |
| N | 3195500 | 1 3/8" | Type 3 | 6 1/5" | 6" | 5.66" | Finished | 5.66" | 11/32" | €308.21 | |
| O | 3195450 | 1 3/8" | Type 3 | 5.7" | 5 1/2" | 5 4/25" | Finished | 5 4/25" | 15/32" | €409.41 | |
| P | 1032879 | 1 3/16" | - | - | - | - | Finished | 11.66" | 11/32" | €465.95 | |
| Q | 1032697 | 1 3/16" | Type 3 | 8 1/5" | 8" | 7.66" | Finished | 7.66" | 11/32" | €752.91 | |
| R | 1032648 | 1 3/16" | Type 3 | 7 1/5" | 7" | 6.66" | Finished | 6.66" | 11/32" | €504.11 | |
| S | 1032838 | 1 3/16" | Type 3 | 11 1/5" | 11" | - | Finished | 10.66" | 11/32" | €496.36 | |
| T | 1032747 | 1 3/16" | Type 3 | 9 1/5" | 9" | 8.66" | Finished | 8.66" | - | €611.99 | |
| U | 1032705 | 1 7/16" | Type 3 | 8 1/5" | - | - | Finished | 7.66" | 11/32" | €552.25 | |
| V | 1032911 | 1 7/16" | Type 3 | 13 1/5" | - | 12.66" | Finished | 12.66" | - | €735.91 | |
| W | 1032614 | 1 7/16" | Type 3 | - | 6" | - | Finished | 5.66" | 11/32" | €314.13 | |
| X | 1032804 | 1 7/16" | Type 3 | 10 1/5" | 10" | 9.66" | Finished | 9.66" | - | €448.74 | |
| Y | 1032945 | 1 7/16" | Type 3 | 14 1/5" | 14" | 13.66" | Finished | 13.66" | 11/32" | €663.28 | |
| Z | 1032754 | 1 7/16" | - | 9 1/5" | 9" | 8.66" | Finished | 8.66" | 11/32" | €600.45 | |
| A1 | 1032978 | 1 7/16" | Type 3 | 15 1/5" | 15" | 14.66" | Finished | 14.66" | 11/32" | €1,111.84 | |
| B1 | 1032358 | 1" | Type 2 | 4 2/5" | 4 1/5" | 3.86" | Finished | 3.86" | 15/32" | €478.94 | |
| C1 | 1032481 | 1" | Type 3 | 5 1/5" | 5" | 4.66" | Finished | - | 15/32" | €507.72 | |
| D1 | 1031988 | 1" | Type 1 | 2 4/5" | - | - | Finished | 2.26" | 15/32" | €229.53 | |
| E1 | 1032739 | 1" | Type 3 | 9 1/5" | 9" | 8.66" | Finished | 8.66" | 11/32" | €417.51 | |
| F1 | 1031830 | 1" | Type 1 | 2 1/2" | - | - | Finished | 1 24/25" | 15/32" | €189.70 | |
| G1 | 1032408 | 1" | Type 2 | - | 4 1/2" | - | Finished | 4 4/25" | 15/32" | €368.18 | |
| H1 | 1032150 | 1" | Type 1 | 3 2/5" | 3 1/5" | 2.86" | Finished | 2.86" | 15/32" | €295.86 | |
| I1 | 1032788 | 1" | Type 3 | 10 1/5" | 10" | 9.66" | Finished | 9.66" | 11/32" | €448.74 | |
| J1 | 1032259 | 1" | Type 2 | 3.9" | 3.7" | 3 9/25" | Finished | 3 9/25" | 15/32" | €323.63 | |
| K1 | 1031780 | 1" | Type 1 | 2.3" | 2.1" | 1 19/25" | Finished | 1 19/25" | 15/32" | €188.38 | |
| L1 | 1032861 | 1" | Type 3 | 12 1/5" | 12" | 11.66" | Finished | 11.66" | 11/32" | €670.12 | |
| M1 | 1032523 | 1" | Type 3 | 5 2/5" | - | - | Finished | 4.86" | 15/32" | €264.28 | |
| N1 | 1031939 | 1" | - | - | 2 1/2" | 2 4/25" | Finished | 2 4/25" | 15/32" | €216.25 | |
| O1 | 1032630 | 1" | Type 3 | 7 1/5" | 7" | 6.66" | Finished | 6.66" | 11/32" | €294.46 | |
| P1 | 1032036 | 1" | Type 1 | 3" | 2 4/5" | 2.46" | Finished | 2.46" | 15/32" | €242.10 | |
| Q1 | 1032598 | 1" | Type 3 | 6 1/5" | 6" | 5.66" | Finished | 5.66" | 11/32" | €451.77 | |
| K | 1032929 | 1" | Type 3 | 14 1/5" | 14" | 13.66" | Finished | 13.66" | 11/32" | €809.39 | |
| R1 | 1032200 | 1" | Type 2 | 3.7" | 3 1/2" | 3 4/25" | Finished | 3 4/25" | 15/32" | €301.18 | |
| S1 | 1032689 | 1" | Type 3 | 8 1/5" | 8" | 7.66" | - | 7.66" | 11/32" | €552.25 | |
| T1 | 1031962 | 3/4" | Type 1 | 2 4/5" | 2 3/5" | 2.26" | Finished | 2.26" | 15/32" | €299.08 | |
| U1 | 1032077 | 3/4" | Type 1 | 3 1/5" | 3" | 2.66" | Finished | 2.66" | - | €356.27 | |
| V1 | 1032549 | 3/4" | Type 3 | - | 5.7" | 5 9/25" | Finished | 5 9/25" | 15/32" | €422.07 | |
| W1 | 1031764 | 3/4" | Type 1 | 2.3" | 2.1" | 1 19/25" | Finished | - | 15/32" | €223.99 | |
| X1 | 1031863 | 3/4" | Type 1 | 2 3/5" | 2 2/5" | 2.06" | Finished | 2.06" | 15/32" | €247.65 | |
| X1 | 1031699 | 3/4" | Type 1 | 2.1" | - | - | Finished | 1 14/25" | 15/32" | €203.47 | |
| Y1 | 1032713 | 3/4" | Type 3 | 9 1/5" | 9" | 8.66" | Finished | 8.66" | 11/32" | €417.51 | |
| Z1 | 1042944 | 3/8" to 1 1/2" | Type 3 | 18 1/5" | - | - | Split Taper | 17.66" | 1/32" | €571.03 | |
| A2 | 1042928 | 3/8" to 1 1/2" | Type 3 | 14 1/5" | - | - | Split Taper | 13.66" | 1/32" | €336.33 | |
| B2 | 1042761 | 3/8" to 1 1/2" | Type 2 | 4 1/5" | - | - | Split Taper | 3.66" | 1/32" | €143.22 | |
| C2 | 1042886 | 3/8" to 1 1/2" | Type 3 | 10 1/5" | - | - | Split Taper | 9.66" | 1/32" | €343.51 | |
| D2 | 1042787 | 3/8" to 1 1/2" | Type 2 | 4.7" | 4 1/2" | 4 4/25" | Split Taper | 4 4/25" | 1/32" | €152.81 | |
| E2 | 1042837 | 3/8" to 1 1/2" | Type 3 | 5.9" | 5.7" | 5 9/25" | Split Taper | 5 9/25" | 1/32" | €202.72 | |
| F2 | 1042795 | 3/8" to 1 1/2" | Type 2 | 4.9" | 4.7" | 4 9/25" | Split Taper | 4 9/25" | 1/32" | €149.29 | |
| G2 | 1042753 | 3/8" to 1 1/2" | Type 2 | 3.9" | 3.7" | 3 9/25" | Split Taper | 3 9/25" | 1/32" | €131.55 |
