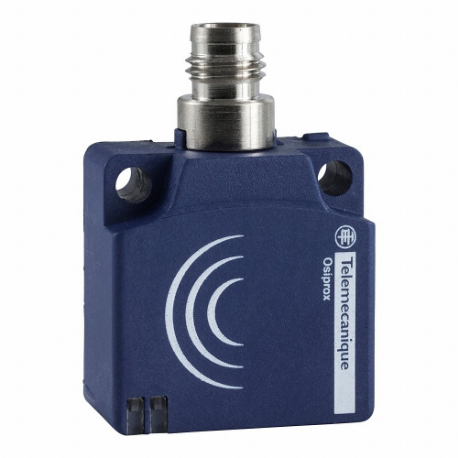

TELEMECANIQUE SENSORS XS8E1A1PAM8 Inductive Sensor 36Vdc 200Ma Xs
Get it by Monday, Jul 13
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Inductive Sensor |
| Ac Supply Voltage | Not Rated |
| Body Material | PBT |
| Dc Supply Voltage Rating | 12-24V DC |
| Display Qty | 1 |
| Electrical Connection | M8 |
| Electrical Installation Type | Direct Connector |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Included Indicator Lights | No Indicator Lights Included |
| Ip Rating | IP67 |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 15 mm |
| Min. Operating Temp. | -13°F |
| No. Of Pins | 3 |
| No. Of Wires | 3 |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Type | PNP |
| Overall Depth | 13 mm |
| Overall Height | 38 mm |
| Overall Width | 26 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Rectangular |
| Series | XS8 Series |
| Supply Voltage | 12-24V DC |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 4.2 |
| Ship width (cm) | 9.5 |
| Country of Origin | FR |
Product Variants
| Product | Model | Ip Rating | Circuit Type | Max. Detecting Distance | Depth | Operating Frequency | Power Required | Output Mode | Proximity Sensor Operating Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XS8C1A1MAL2 | IP68 | 2 Wire | - | 15 mm | 1000 Hz | 24-240V | No | - | €278.94 | |
 |
XS8D1A1MAL2 | IP68 | 2 Wire | 60 mm | 26 mm | 150 Hz | 24-240V | No | 150 Hz | €412.86 | |
 |
XS8C4A1NCG13 | IP65, IP67, IP69K | NPN | - | 117 mm | 300 Hz | 12-48V DC | - | - | €274.89 | |
|
XS8C4A1PCG13 | IP65, IP67, IP69K | PNP | - | 117 mm | 300 Hz | 12-48V DC | - | - | €267.74 | |
|
XS8C4A1DPG13 | IP65, IP67, IP69K | 2 Wire | - | 117 mm | 300 Hz | 12-48V DC | - | - | €327.70 | |
|
XS8C4A1MPG13 | IP65, IP67, IP69K | 2 Wire | - | 117 mm | 300 Hz | 24-240V | - | - | €354.85 | |
|
XS8C4A4NCG13 | IP65, IP67, IP69K | NPN | - | 117 mm | 200 Hz | 12-48V DC | - | - | €290.23 |
