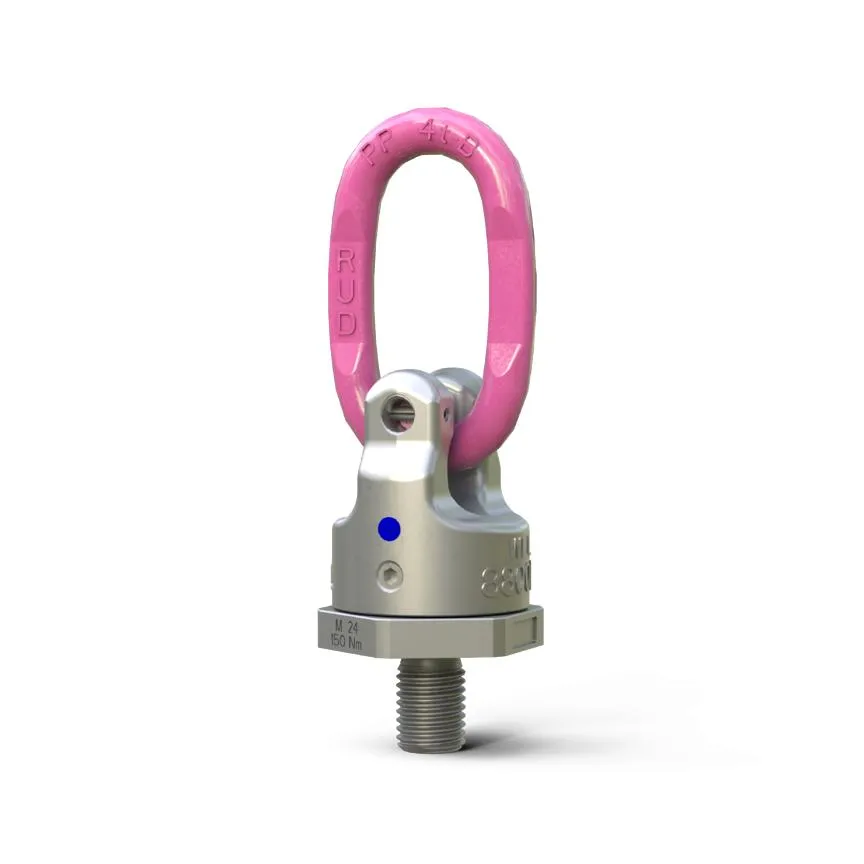

RUD CHAIN PP-B PowerPoint Ring Connections, Metric
Item: AB2KQP
Model: 7989522
Cross Ref: 1MLV2 / PP-B-0,63t-M12
Check Availability
In Stock
Get it by Dec 17, Wednesday
10% off
€378.72 /unit (ex. VAT)
Add To Cart
Request Quote
Payment
Delivery
- Specifications
- Shipping Information
Specifications
| Item | Hoist Ring |
|---|---|
| Bail Dia. | 8.73 mm |
| Bail Inside Length | 2 5/8" |
| Bail Inside Width | 1 3/8" |
| Bail Thickness | 11/32" |
| Color | Pink |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Installation Torque | 10.03 N-m |
| Load Capacity | 630.49 Kg |
| Material | Steel |
| Max. Operating Temp. | 400°C |
| Maximum Operating Temperature | 752°F |
| Mfr. Series | PP-B Series |
| Min. Operating Temp. | -40°C |
| Minimum Installation Torque | 7.4 lbs.-ft. |
| Minimum Operating Temperature | -40°F |
|---|---|
| Mount Type | Screw On |
| Mounting Style | Screw On |
| Nominal Size | M12 |
| Nominal Wll (kg) | 630 Kg |
| Operation | Lifting |
| Overall Length | 1 3/8" |
| Overall Width | 1 5/8" |
| Pivot | 230° |
| Pivot Angle | 230° |
| Rotate Angle | 360° |
| Standards | Dguv Test |
| Swivel Angle | 360° |
| Thread Size | M12 x 1.75 |
| Usable Thread Length | 3/4" |
| Working Load Limit | 1390 lbs. |
Shipping Information
| Height (cm) | 10.01 |
|---|---|
| Length (cm) | 30.99 |
| Width (cm) | 8.99 |
| HS Code | 7318190000 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 0.35 |
