TELEMECANIQUE SENSORS XS112BLNAL2 Proximity Sensor Inductive 12mm NPN NO
Item: AG9FNPModel: XS112BLNAL2Cross Ref: 1EVL4
7 In Stock
Ships within 2 days via
5.00% off
€85.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Application | General Purpose |
| Basic Material | Metal |
| Basic Proximity Sensor Case Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Body Type | Fixed |
| Case Finish | Nickel Plated |
| Case Material | Brass |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 12-24V DC |
| Detecting Distance | 2.0mm |
| Detecting Distance | 2 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 41 mm |
| Max. Current Load | 100mA |
| Max. Delay First Up | 15 ms |
| Max. Delay Recovery | 0.15 ms |
| Max. Delay Response | 0.1 ms |
| Max. Detecting Distance | 2 mm |
| Max. Load Amps | 100 mA , 200 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Wires | 3 |
| Nominal Sensor Dia. | M12 Threaded |
| Operating Frequency | 2000 Hz |
| Operating Temp. | -13°F to +158°F |
| Output Circuit | NPN |
| Output Circuit Contact Form | No |
| Output Circuit Type | NPN |
| Output Mode | No |
| Overall Height | 44 mm |
| Power Required | 12-24V DC |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 12 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 12 mm |
| Sensor Dia. | 12.0mm |
| Series | XS1 Series |
| Shielded/unshielded | Shielded |
| Supply Voltage | 12-24V DC |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1 |
| Ship length (cm) | 14 |
| Ship width (cm) | 11 |
| Country of Origin | ID |
Product Details:
- Special Features: Yellow LED Output Indication, Reverse Polarity, Overload And Short-Circuit Protection
Product Variants
| Model | No. Of Wires | Ip Rating | Sensor Dia. | Overall Height | Min. Operating Temp. | Max. Operating Temp. | Electrical Installation Type | Output Circuit Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XS108BLNAL2 | 3 | IP67 | 8 mm | 42 mm | -13°F | 158°F | Prewired Cable | No | €87.25 | |
| XS108BLNAM12 | 3 | IP67 | 8 mm | 61 mm | -13°F | 158°F | Direct Connector | No | €160.82 | |
| XS108BLPAL2 | 3 | IP67 | 8 mm | 42 mm | -13°F | 158°F | Prewired Cable | No | €92.69 | |
| XS108BLPAL5 | 3 | IP67 | 8 mm | 42 mm | -13°F | 158°F | Prewired Cable | No | €108.22 | |
| XS108BLPAM12 | 3 | IP67 | 8 mm | 62 mm | -13°F | 158°F | Direct Connector | No | €92.18 | |
| XS108BLPAM8 | 3 | IP67 | 8 mm | 50 mm | -13°F | 158°F | Direct Connector | No | €95.24 | |

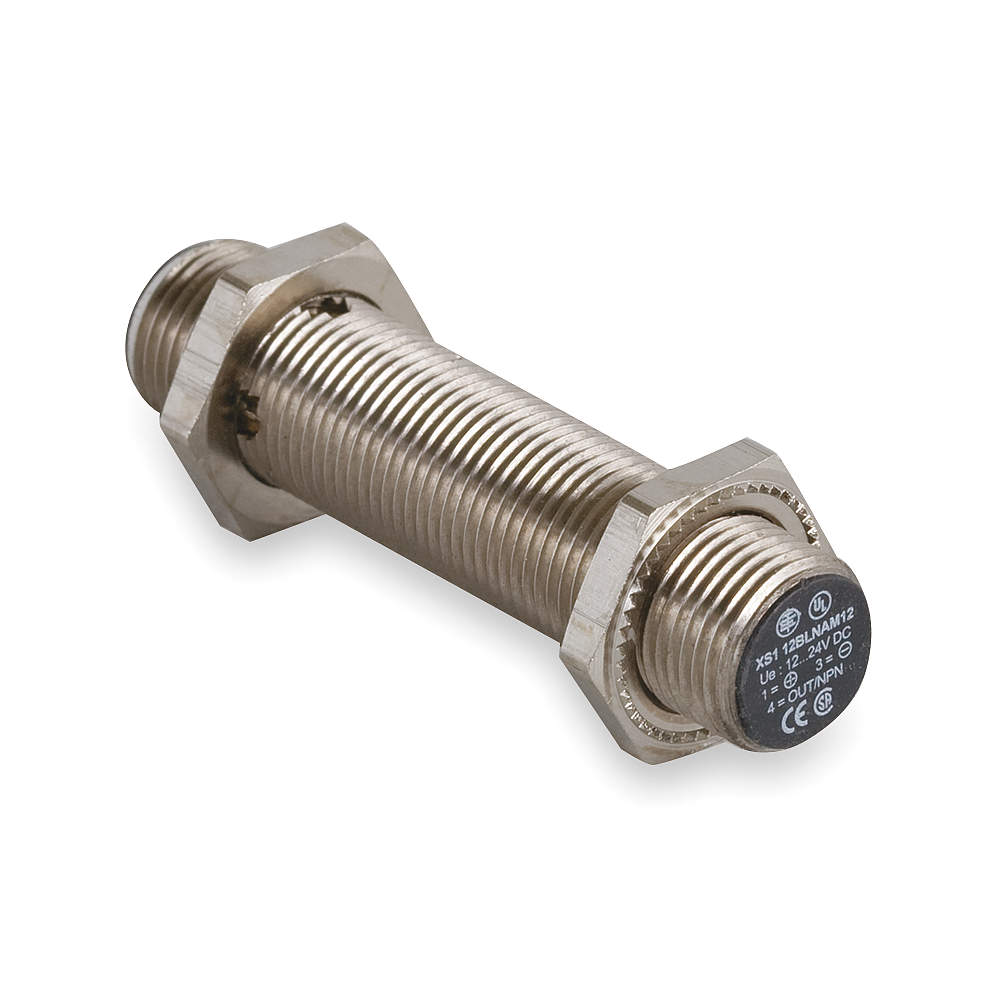

| XS112BLNAM12 | 3 | IP67 | 12 mm | 55 mm | -13°F | 158°F | Direct Connector | No | €82.73 |
