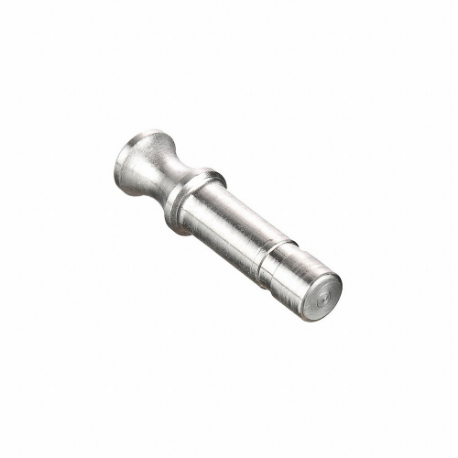

LEGRIS 3826 06 00 Metric Stainless Steel Push-to-Connect Fitting, 316L Stainless Steel, Push-Fit
Item: CR8THUModel: 3826 06 00Cross Ref: 791TH7
7 In Stock
Ships within 2 days via
10.00% off
€55.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Beverages, Food Processing |
| Color | Black |
| Compatible Tube Material | Thermoplastic |
| Connection Type | Push Fit |
| Fitting Connection Type | Push Fit |
| Fitting Material | Stainless Steel |
| Fitting Tube Size Outer Diameter | 6 mm |
| Grade | Grade 316L |
| Includes Pre-applied Thread Sealant | No |
| Length | 19.5 mm |
| Material | Stainless Steel |
| Material Grade | 316L |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Minimum Operating Temperature | -4°F |
| Overall Length | 19.5 mm |
| Resistance Properties | Corrosion Resistant |
| Specific Fitting Shape | Blanking Plug With Tailpiece |
| Sub-brand | Lf3800 |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Fitting Tube Size Outer Diameter | Fitting Material | Max. Operating Pressure | Max. Operating Temp. | Compatible Tube Material | Color | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
3826 08 00 | 20 mm | 8 mm | Stainless Steel | 435 psi | 302°F | Thermoplastic | Black | Push Fit | €72.92 |
